Hikrobot HK-360-X-15 1.6 MP smart code reader

Fixed code readers

Hikrobot MV-4030YT 1.6 MP industrial code reader

Model MV-4030YTHikrobot

Resolution1408 × 1024
SensorCMOS, global shutter
InterfaceFast Ethernet (100 Mbit/s)
Speed60 fps
Lens mountM12
Mono / colourMono

$819.00

Ships in 2-3 weeks

0.37 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

1408 x 1024 fixed code reader, 60 fps, 110 yards/s, liquid-lens autofocus, 16 mm lens (LS-CRD-0016)$1,240.00
1408 x 1024 fixed code reader, 60 fps, 110 yards/s, autofocus, 16 mm lens (LS-CRD-0017)$1,165.00
1408 x 1024 fixed code reader, 60 fps, 84 yards/s, autofocus, 14.8 mm lens (LS-CRD-0015)$735.00

Hikrobot MV-4030YT 1.6 MP industrial code reader. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions Carefully selected sensor for high-speed capture of high-quality images

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-4030YT
Brand	Hikrobot
Lens cap	Polarized + diffuser + full-transparent lens cap
Indicator	Body indicators, Light-board read result indicator

Optics

Focal length	16 mm

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, MATRIX25, UPCA, UPCE, MSI, CODE11, INDUSTRIAL25, CHINAPOST, PHARMACODE; 2D code: QR Code, Data Matrix, Micro QR; Stacked code: PDF417
Max. frame rate	60 fps
Max. reading speed	110 codes/s
Sensor type	CMOS, global shutter
Pixel size	3.45 µm × 3.45 µm
Sensor size	1/2.9”
Resolution	1408 × 1024
Exposure time	6 μs ~ 30000 μs
Gain	0 ~ 24 dB
Mono/color	Mono
Aiming system	Orange LED

Interfaces and I/O

Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, EthernetIp, Modbus, FINS, UDP
Data interface	Fast Ethernet (100 Mbit/s)
Digital I/O	12-pin M12 connector for power and I/O: 3 opto-isolated inputs (pins 0/1/2), 3 opto-isolated outputs (pins 3/4/5), 1× RS-232 interface; Device trigger via top button supported
Client software	IDMVS

Light

Light source	Red spot light and white diffuse light, Spot light: white/blue/IR optional

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Operating temperature: 0 to 50 ℃, Storage temp.: -30 to 70 °C
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Electrical

Power supply	24 VDC
Max. power consumption	6.2 W @ 24 VDC (built-in light on)

Mechanical

Lens mount	M12-Mount, Liquid lens focus

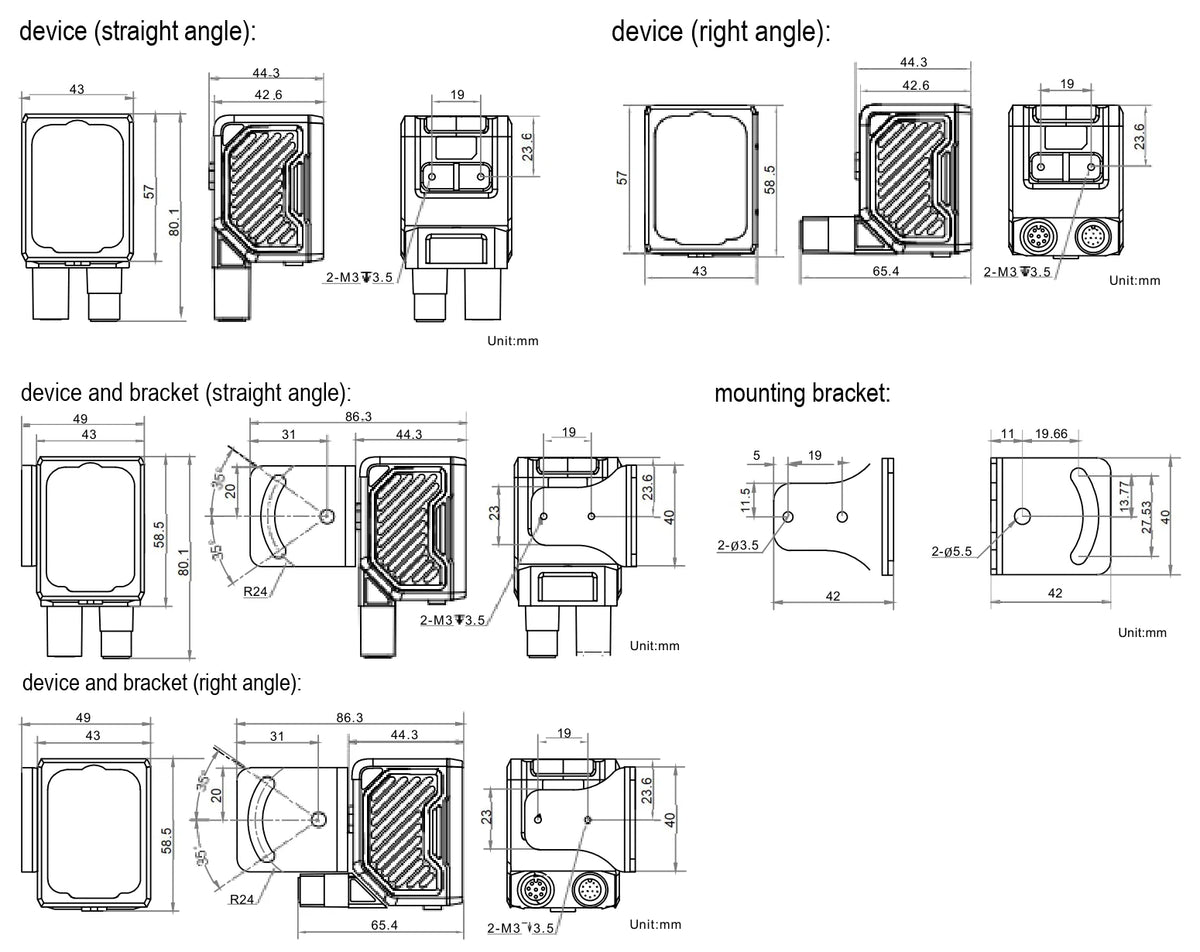

Dimension	Straight: 80.1 mm × 43 mm × 44.3 mm; Right-angle: 58.5 mm × 43 mm × 65.4 mm
Weight	Approx. 195 g (0.4 lb.)
Shipping weight (estimated)	0.37 kg

Photo shows a representative model of this series; see the specifications for this model.

Downloads

Datasheet (PDF, Chinese)MV-4030YT · 771 KB

Features

Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Carefully selected sensor for high-speed capture of high-quality images
Liquid-lens models combine with ToF for fast image setup and real-time focusing
Extremely easy to use: one-click auto-tuning
Top and side status indicators plus projected light: code-reading status visible from every side
Rotatable tail cable design adapts flexibly to tight spaces
Three-way polarized, diffuse and clear illumination for outstanding environmental adaptability
Rich I/O interface for multiple input and output signals
IP67 protection for harsh industrial environments
