Fixed code readers

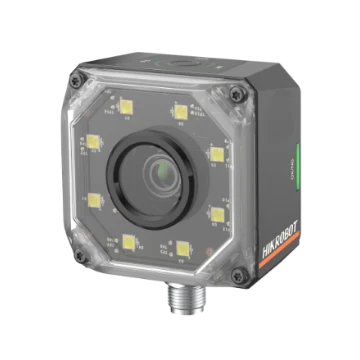

Hikrobot ICRS016-84M 1.6 MP smart code reader
Model ICRS016-84MHikrobot
- Resolution1408×1024
- SensorCMOS, global shutter
- InterfaceFast Ethernet(100 Mbit/s)
- Speed60 fps
- Lens mountM12
- Mono / colourMono
$819.00
Ships in 2-3 weeks
0.45 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot ICRS016-84M 1.6 MP smart code reader. Carefully selected sensor for high-speed capture of high-quality images Single cable provides a rich I/O interface for multiple input and output signals
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | ICRS016-84M |
|---|---|
| Brand | Hikrobot |
| Lens cap | Clear lens cover, Full-polarizing optional, Semi-polarizing lens cover |
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) |
Optics
| Focal length | 6 mm |
|---|
Sensor and imaging
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN, ITF25, MATRIX25, MSI, CODE11, INDUSTRIAL25, CHINAPOST, etc.; 2D code: QR Code, Data Matrix, etc.; Stacked code: PDF417, etc. |
|---|---|
| Max. frame rate | 60 fps |
| Max. reading speed | 84 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm×3.45 μm |
| Sensor size | 1/2.9” |
| Resolution | 1408×1024 |
| Exposure time | 16 μs ~ 1 sec |
| Gain | 0 ~ 40 dB |
| Mono/color | Mono |
Interfaces and I/O
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, Fins, SLMP |
|---|---|
| Data interface | Fast Ethernet(100 Mbit/s) |
| Digital I/O | 17-pin M12 connector for power and I/O: 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 3/4/5), 1 RS232 input, 1 RS232 output; Device trigger via top button supported |
| Client software | IDMVS |
Light
| Light source | Focused white light, Focused red/blue/IR light optional, Wide-angle white/blue/red light |
|---|
Environment and compliance
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Electrical
| Power supply | 24 VDC |
|---|---|
| Max. power consumption | 20 W @ 24 VDC (built-in light on) |
Mechanical
| Lens mount | M12-mount, mechanical focus |
|---|---|
| Dimension | 65.2 mm×65.2 mm×42 mm |
| Weight | Approx. 250 g |
| Shipping weight (estimated) | 0.45 kg |
