Handheld code readers

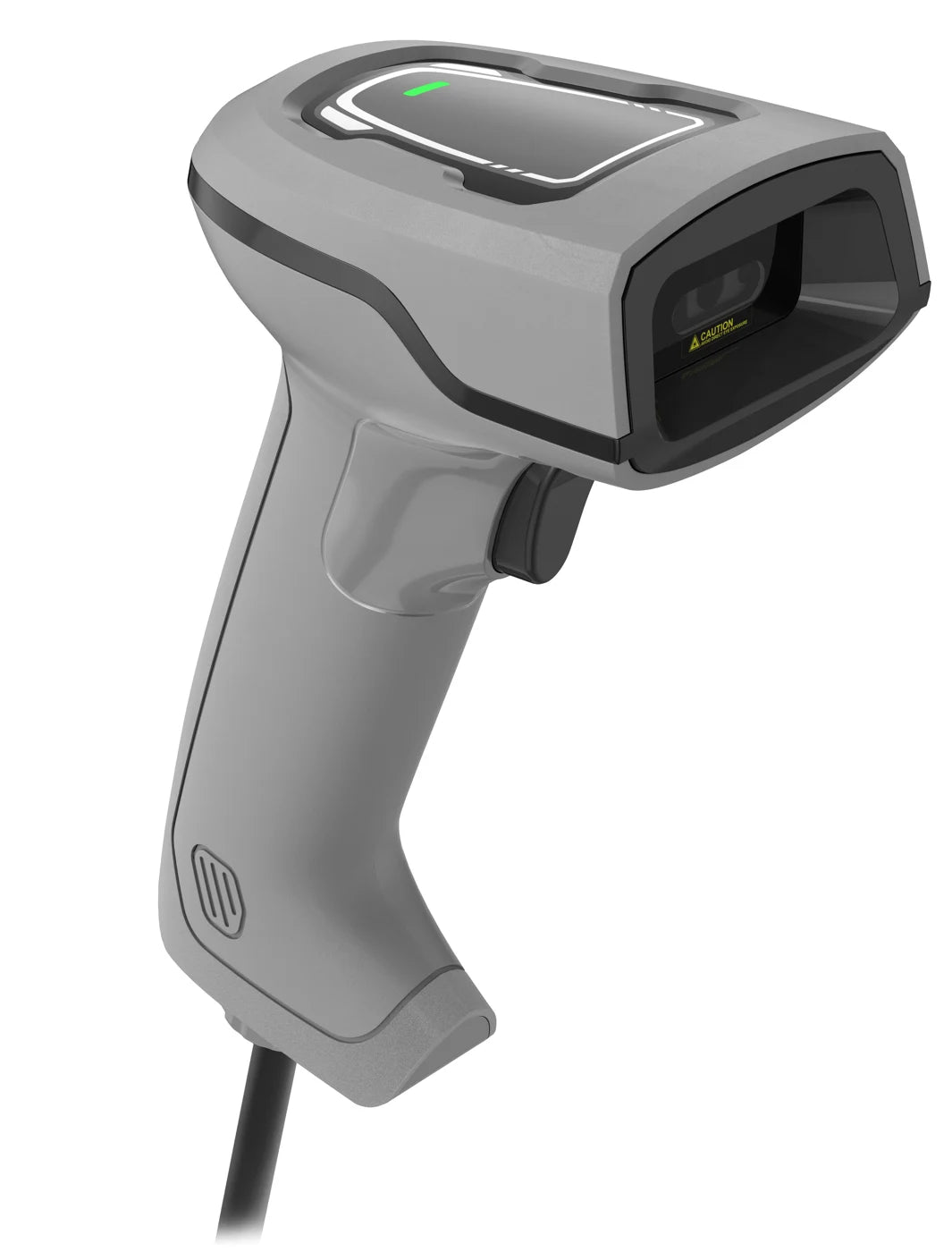

Hikrobot MV-ORH330 Compact industrial handheld code reader

Model MV-ORH330Hikrobot

Resolution640 × 480
SensorCMOS, global shutter
InterfaceUSB2.0
Speed50 fps
Pixel size3.74 μm × 3.74 μm
Focal length3.1 mm

$239.00

Ships in 2-3 weeks

0.32 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-ORH330 Compact industrial handheld code reader. In-house high-performance barcode algorithm efficiently reads barcodes in retail, e-commerce and enterprise applications Robust algorithm with excellent decoding of damaged, laminated, curved and reflective codes in retail and logistics

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-ORH330
Brand	Hikrobot
Min. accuracy	4 mil
Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast	20 %
Prompt	LED indicator, Buzzer

Optics

Depth of field	EAN13(13 mil):30 ~ 240 mm; Code 39(5 mil):50 ~ 100 mm; Code 128(10 mil):30 ~ 240 mm; Data Matrix(10 mil):40 ~ 130 mm; QR Code(15 mil):15 ~ 205 mm
Field of view	Horizontal 42°, Vertical 32°
Focal length	3.1 mm

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128, Coda Bar, EAN8, EAN13, ITF14, ITF25, UPCA, UPCE; 2D code: QR Code, Data Matrix, MicroQR, Aztec; Stacked code: PDF417
Max. frame rate	50 fps
Sensor type	CMOS, global shutter
Pixel size	3.74 μm × 3.74 μm
Sensor size	1/6''
Resolution	640 × 480
Aiming system	Orange LED

Interfaces and I/O

Communication protocol	SmartSDK, USB(HID/CDC)
Data interface	USB2.0
Client software	IDMVS

Light

Ambient illumination	0 ~ 100000 lux
Light source	White LED

Environment and compliance

Ingress protection	IP42
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	5% RH to 95% RH (no condensation)
Certification	CE, KC

Electrical

Power supply	5 VDC
Max. power consumption	2.5 W@5 VDC

Mechanical

Lens mount	M5.0-Mount

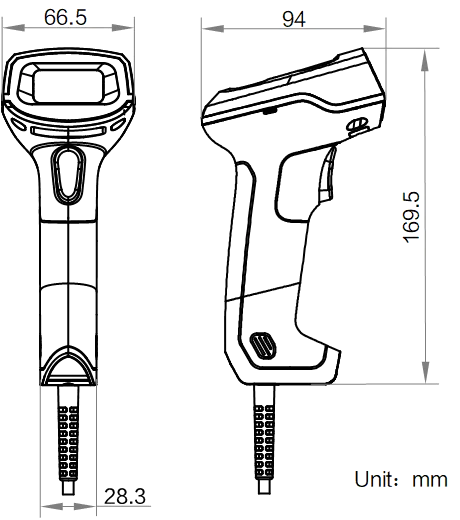

Dimension	66.5 mm × 94 mm × 169.5 mm
Weight	Approx. 160 g (0.4 lb.)
Shipping weight (estimated)	0.32 kg

Downloads

Features

In-house high-performance barcode algorithm efficiently reads barcodes in retail, e-commerce and enterprise applications
Robust algorithm with excellent decoding of damaged, laminated, curved and reflective codes in retail and logistics
Lightweight, compact and durable
USB-HID, USB-CDC and RS-232 output modes
Detachable cable design for easy replacement
IP42 protection and 1.5 m drop resistance
Beeper and indicator status feedback

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
