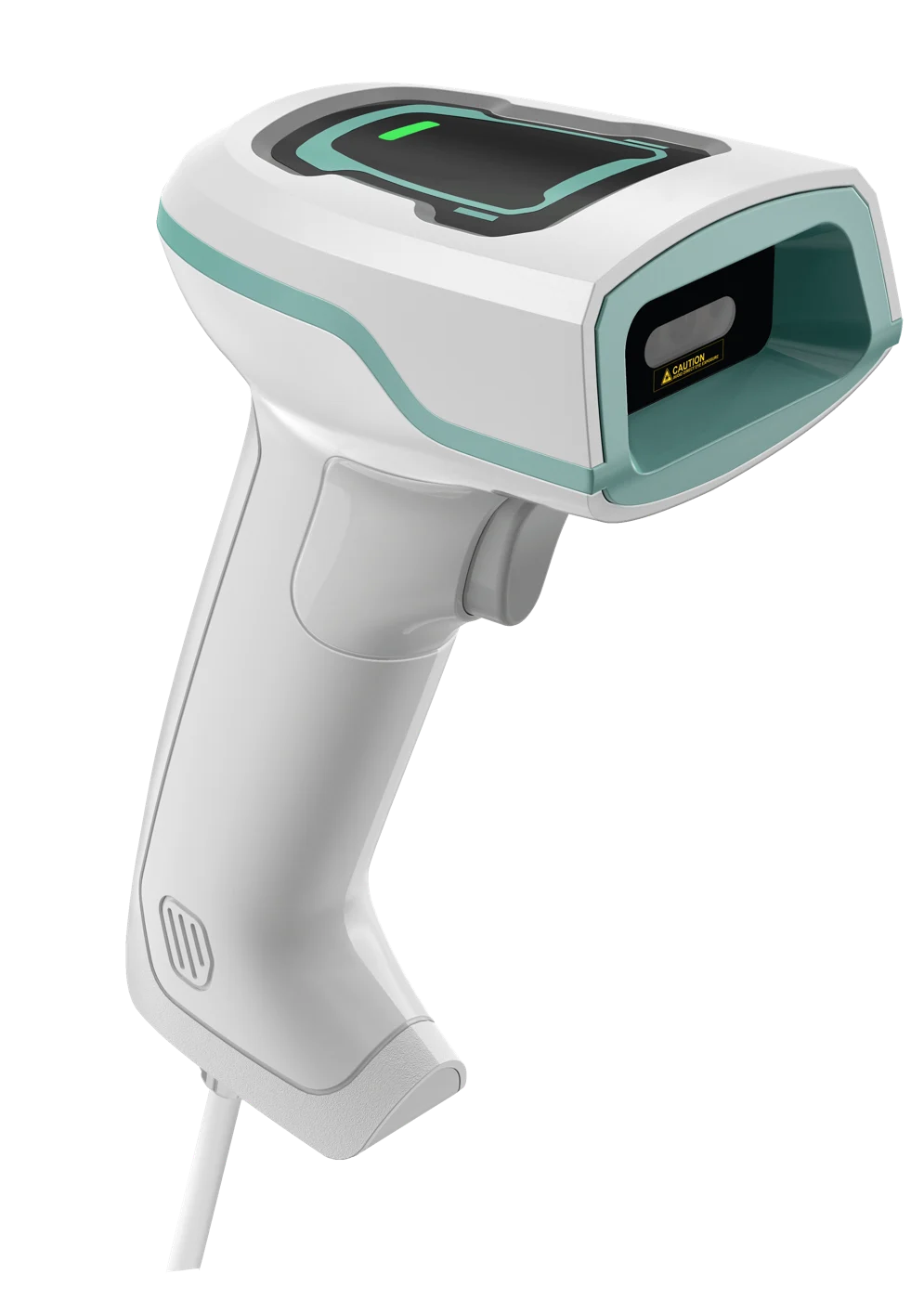

Hikrobot MV-IDH2000/H/03SR/03WN/U Medical wired handheld code reader

Handheld code readers

Hikrobot MV-IDH2000/H/13SR/05WN/U Medical handheld code reader

Model MV-IDH2000/H/13SR/05WN/UHikrobot

Resolution1280 × 1024
SensorCMOS
InterfaceUSB2.0
Focal length3.1 mm

$179.00

Ships in 2-3 weeks

0.32 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-IDH2000/H/13SR/05WN/U Medical handheld code reader. Medical-grade antibacterial, alcohol-resistant material In-house high-performance barcode algorithm efficiently reads difficult inkjet-printed codes in light industry, enterprise and retail

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-IDH2000/H/13SR/05WN/U
Brand	Hikrobot
Min. accuracy	1D codes: 3 mil; 2D codes: 5 mil
Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast	20 %
Prompt	LED indicator, buzzer, vibrator
Laser safety class	Laser 2

Optics

Depth of field	Code 128(3 mil):70 mm ~ 160 mm; Code 128(10 mil):30 mm ~ 370 mm; QR Code(10 mil):45 mm ~ 235 mm; QR Code(15 mil):20 mm ~ 310 mm; QR Code(20 mil):20 mm ~ 370 mm
Field of view	39° (H) × 29° (V)
Focal length	3.1 mm

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128, GS1- Code128, Coda Bar, EAN8, EAN13, ISBN, ISSN, ITF14, ITF25, UPCA, UPCE; 2D code: QR Code, Data Matrix, MicroQR, Aztec; Stacked code: PDF417
Sensor type	CMOS
Resolution	1280 × 1024
Aiming system	Cross laser aiming

Interfaces and I/O

Communication protocol	SmartSDK, Serial, USB(HID/CDC)
Data interface	USB2.0
Client software	IDMVS

Light

Ambient illumination	0 ~ 100000 lux
Light source	White LED
Wavelength	650 nm

Environment and compliance

Ingress protection	IP42
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	5% RH to 95% RH (no condensation)
Certification	CE, KC

Electrical

Power supply	5 VDC
Current consumption	0.9 A (max. current); 0.5 A (typical current)
Maximum power	1 mW

Mechanical

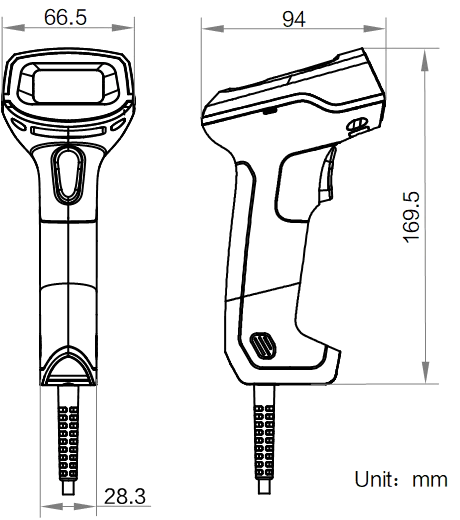

Dimension	66.5 mm × 94 mm × 169.5 mm
Weight	Approx. 160 g (0.4 lb.)
Drop height	1.8 m
Pulse width	8 ms
Shipping weight (estimated)	0.32 kg

Downloads

Features

Medical-grade antibacterial, alcohol-resistant material
In-house high-performance barcode algorithm efficiently reads difficult inkjet-printed codes in light industry, enterprise and retail
Robust algorithm handles dirty, damaged and low-contrast codes
USB-HID, USB-CDC and RS-232 output modes
Detachable cable design for easy replacement
IP42 protection and 1.8 m drop resistance
Beeper and indicator status feedback
