Handheld code readers

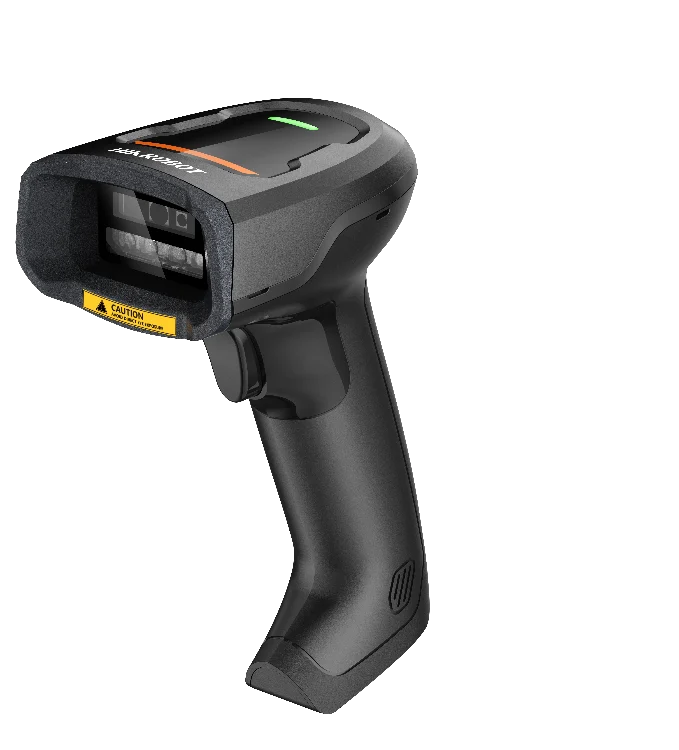

Hikrobot MV-IDH2000P/13SR/05RN/U Industial Wired Handheld Code Reader
Model MV-IDH2000P/13SR/05RN/UHikrobot
- Resolution1280 × 1024
- SensorCMOS
- InterfaceUSB 2.0
- ConnectionWired
$179.00
Ships in 2-3 weeks
0.32 kg shipping weight
Not available in the United States. Available for delivery to other countries.
MV-IDH2000P/13SR/05RN/U: resolution 1280 x 1024; sensor type CMOS; field of view Horizontal 39°, vertical 29°; light source White LED, red LED, blue LED.
Hikrobot MV-IDH2000P/13SR/05RN/U Industial Wired Handheld Code Reader. Built-in code reading algorithm for decoding different types of 1D codes and 2D codes. Provides good robustness to read codes with spots, defects and low contrast ratio.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Certifications (as printed)CEKC
Specifications
General
| Model | MV-IDH2000P/13SR/05RN/U |
|---|---|
| Brand | Hikrobot |
| Min. accuracy | 1D codes: 3 mil; 2D codes: 5 mil |
| Detection angle | Tilt angle ± 65°, skew angle ± 65°, rotation angle 360° |
| Symbol contrast | 20% |
| Prompt | LED indicator, buzzer, vibrator |
| Laser safety class | Laser 2 |
Optics
| Depth of field | Code 128 (3 mil): 70 mm to 155 mm; Code 128 (10 mil): 30 mm to 430 mm; QR Code (10 mil): 45 mm to 230 mm; QR Code (15 mil): 20 mm to 350 mm; QR Code (20 mil): 20 mm to 450 mm |
|---|---|
| Field of view | Horizontal 39°, vertical 29° |
Sensor and imaging
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D codes: QR Code, Data Matrix, MicroQR, Aztec; Stacked code: PDF417 |
|---|---|
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Aiming system | Cross laser aiming |
Interfaces and I/O
| Communication protocol | SmartSDK, Serial, USB (HID/CDC) |
|---|---|
| Data interface | USB 2.0 |
| Client software | IDMVS |
Light
| Ambient illumination | 0 lux to 100000 lux |
|---|---|
| Light source | White LED, red LED, blue LED |
| Laser wavelength | 650 nm |
Environment and compliance
| Ingress protection | IP42 |
|---|---|
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Certification | CE, KC |
Electrical
| Power supply | 5 VDC |
|---|---|
| Current consumption | 0.9 A (max.), 0.5 A (typical) |
| Laser output power (max.) | 1 mW |
Mechanical

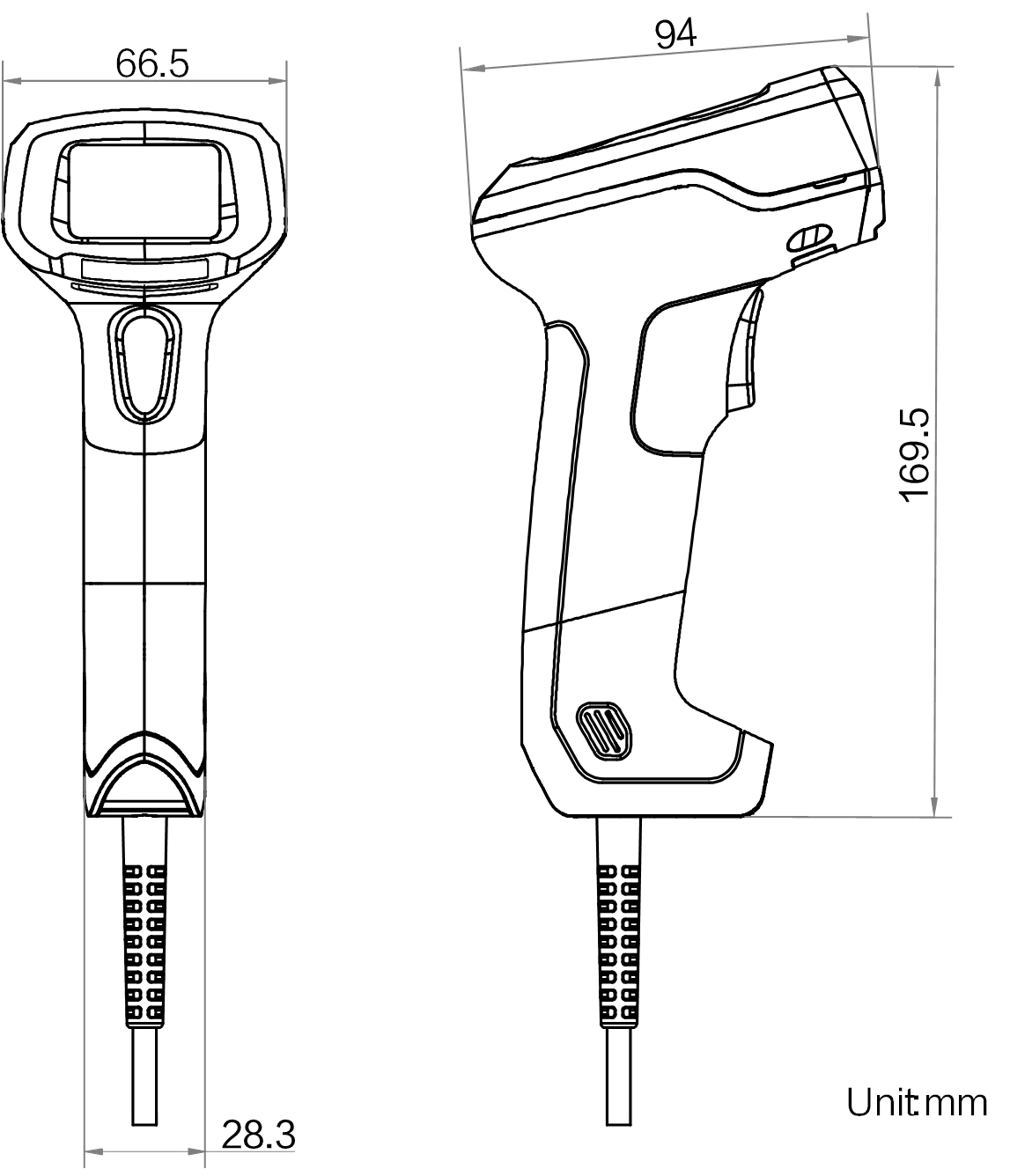

| Dimension | 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") |
|---|---|
| Weight | Approx. 160 g (0.4 lb.) |
| Pulse width | 15 ms |
| Drop height | 1.8 m |
| Shipping weight (estimated) | 0.32 kg |
Other models in the IDH2000 Series Handheld Code Reader series
See all 34 models| Model | Resolution | Sensor | Interface | Price | Availability | Link |
|---|---|---|---|---|---|---|
| MV-IDH2000P/13SR/05RN/UThis model | 1280 × 1024 | CMOS | USB 2.0 | $179.00 | Ships in 2-3 weeks | |
| MV-IDH2000B/03SR/03WN | 640 × 480 | CMOS | USB 2.0 (Type B) | $179.00 | Ships in 2-3 weeks | View |
| MV-IDH2000B/03SR/03WN/UC | 640 × 480 | CMOS | USB 2.0 (Type B) | $179.00 | Ships in 2-3 weeks | View |
| MV-IDH2000B/13SR/05WN | 1280 × 1024 | CMOS | USB 2.0 (Type B) | $179.00 | Ships in 2-3 weeks | View |
| MV-IDH2000B/13SR/05WN/UC | 1280 × 1024 | CMOS | USB 2.0 (Type B) | $179.00 | Ships in 2-3 weeks | View |
| MV-IDH2000B/13NR/05WN | 1280 × 1024 | CMOS | USB 2.0 (Type B) | $179.00 | Ships in 2-3 weeks | View |
| MV-IDH2000B/13NR/05WN/UC | 1280 × 1024 | CMOS | USB 2.0 (Type B) | $179.00 | Ships in 2-3 weeks | View |
| MV-IDH2000B/CBASE/U | USB 2.0 (Type B), USB 2.0 (Type A) | $179.00 | Ships in 2-3 weeks | View | ||
| MV-IDH2000RF/03SR/03WN | 640 × 480 | CMOS, global shutter | $179.00 | Ships in 2-3 weeks | View | |
| MV-IDH2000RF/03SR/03WN/UC | 640 × 480 | CMOS, global shutter | $179.00 | Ships in 2-3 weeks | View | |
| MV-IDH2000RF/13SR/05WN | 1280 × 1024 | CMOS, global shutter | $179.00 | Ships in 2-3 weeks | View | |
| MV-IDH2000RF/13SR/05WN/UC | 1280 × 1024 | CMOS, global shutter | $179.00 | Ships in 2-3 weeks | View | |
| MV-IDH2000RF/13NR/05WN | 1280 × 1024 | CMOS, global shutter | $179.00 | Ships in 2-3 weeks | View | |
| MV-IDH2000P/13NR/05RN/U | 1280 × 1024 | CMOS | USB 2.0 | $179.00 | Ships in 2-3 weeks | View |
| MV-IDH2000PB/13SR/05RN/UC | 1280 × 1024 | CMOS | USB 2.0 (Type B) | $179.00 | Ships in 2-3 weeks | View |
| MV-IDH2000PB/13NR/05RN | 1280 × 1024 | CMOS | USB 2.0 (Type B) | $179.00 | Ships in 2-3 weeks | View |
| MV-IDH2000PB/13NR/05RN/UC | 1280 × 1024 | CMOS | USB 2.0 (Type B) | $179.00 | Ships in 2-3 weeks | View |
| MV-IDH2000RF/CBASE/U | USB 2.0 (Type B), USB 2.0 (Type A) | $179.00 | Ships in 2-3 weeks | View | ||
| MV-IDH2000/13SR/04WN/U | 1280 × 1024 | CMOS | USB2.0, USB3.0, RS-232 | $179.00 Quote | Ships in 2-3 weeks | View |
| MV-IDH2000RF/H/13SR/05WN | 1280 × 1024 | CMOS | USB 2.0 (Type B) | $179.00 | Ships in 2-3 weeks | View |
| MV-IDH2000/H/03SR/03WN/U | 640 × 480 | CMOS | USB2.0 | $179.00 | Ships in 2-3 weeks | View |
| MV-IDH2000RF/H/03SR/03WN | 640 × 480 | CMOS | USB 2.0 (Type B) | $179.00 | Ships in 2-3 weeks | View |
| MV-IDH2000/H/13SR/05WN/U | 1280 × 1024 | CMOS | USB2.0 | $179.00 | Ships in 2-3 weeks | View |
| MV-IDH2000PB/13SR/05RN | 1280 × 1024 | CMOS | USB 2.0 (Type B) | $179.00 | Ships in 2-3 weeks | View |
| MV-IDH2068B-AI | 1280 × 1024 | CMOS | USB 2.0 (Type B) | $179.00 | Ships in 2-3 weeks | View |
