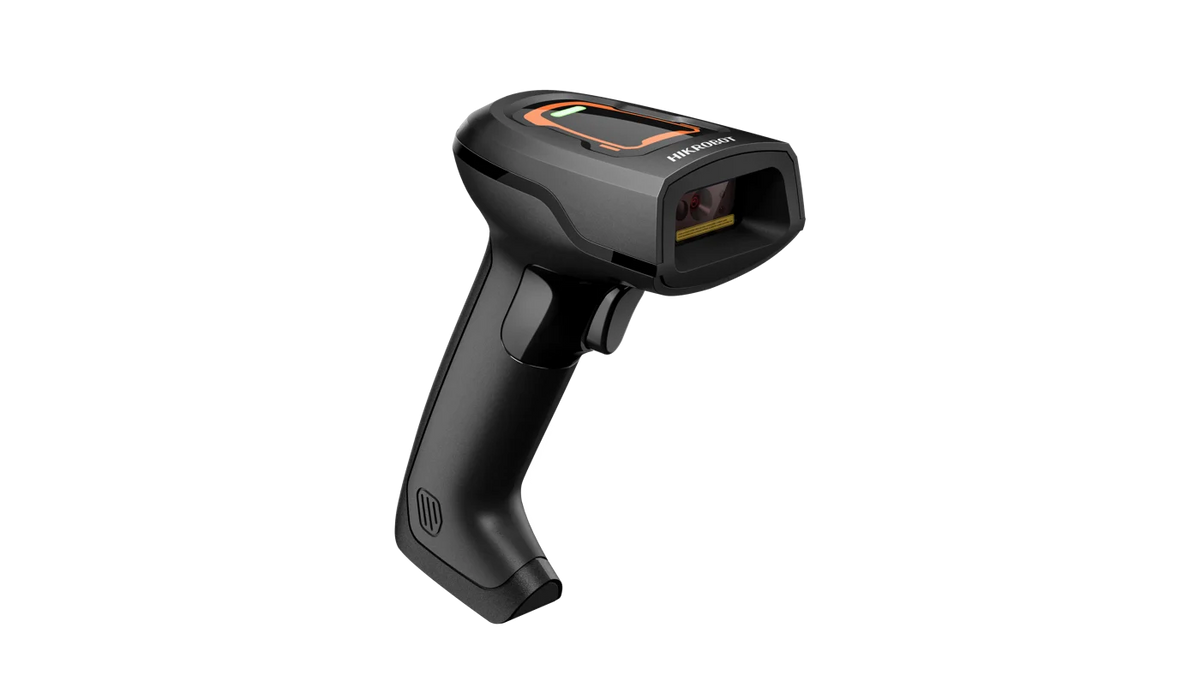

Hikrobot MV-IDH2000B/03SR/03WN Industrial wireless handheld code reader

Handheld code readers

Hikrobot MV-IDH2000B/13NR/05WN Industrial wireless handheld code reader

Model MV-IDH2000B/13NR/05WNHikrobot

Resolution1280 × 1024
SensorCMOS
InterfaceUSB 2.0 (Type B)
Focal length4.9 mm

$179.00

Ships in 2-3 weeks

0.32 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-IDH2000B/13NR/05WN Industrial wireless handheld code reader. Built-in code reading algorithm for decoding different types of 1D codes and 2D codes. Provides good robustness to read codes with spots, defects and low contrast ratio.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-IDH2000B/13NR/05WN
Brand	Hikrobot
Min. accuracy	1D codes: 3 mil; 2D codes: 4 mil
Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast	20%
Battery	2700 mAh
Charging time	6 h
Endurance	12 h (interval scanning, once in 2 seconds)
Prompt	LED indicator, buzzer, vibrator
Laser safety class	Laser 2

Optics

Depth of field	Code 128 (3 mil): 30 mm to 110 mm; Code 128 (10 mil): 20 mm to 205 mm; Data Matrix (5 mil): 40 mm to 85 mm; QR Code (10 mil): 20 mm to 140 mm; QR Code (20 mil): 20 mm to 200 mm
Field of view	Horizontal 39°, vertical 29°
Focal length	4.9 mm

Sensor and imaging

Symbologies	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D codes: QR Code, Data Matrix, MicroQR, Aztec; Stacked code: PDF417
Sensor type	CMOS
Resolution	1280 × 1024
Aiming system	Cross laser aiming

Interfaces and I/O

Communication mode	Bluetooth BT 5.1, BLE
Wireless range	80 m (open range)
Communication protocol	SmartSDK, Bluetooth, USB
Data interface	USB 2.0 (Type B)
Client software	IDMVS
Data interface (smart base)	USB 2.0 (Type B), USB 2.0 (Type A)

Light

Ambient illumination	0 lux to 100000 lux
Light source	White LED
Wavelength	650 nm

Environment and compliance

Ingress protection	IP42
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity	5% RH to 95% RH (no condensation)
Certification	CE, KC
Ingress protection (smart base)	IP40
Temperature (smart base)	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity (smart base)	5% RH to 95% RH (no condensation)

Electrical

Power supply	5 VDC
Current consumption	1.5 A (max.), 0.14 A (during standby)
Maximum power	1 mW
Power supply (smart base)	5 VDC
Current consumption (smart base)	1.5 A (max.), 0.01 A (during standby)

Mechanical

Dimension	66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7")
Weight	Approx. 160 g (0.4 lb.)
Pulse width	8 ms
Dimension (smart base)	82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0")
Weight (smart base)	Approx. 120 g (0.3 lb.)
Drop height	1.8 m
Shipping weight (estimated)	0.32 kg

Downloads

Features

Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.
Provides good robustness to read codes with spots, defects and low contrast ratio.
Supports continuous code reading, batch code reading for improving code reading efficiency.
Supports wireless communication via Bluetooth.
Adopts 2700 mAh battery with long standby time.
IP42 and drop height of 1.8 m.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
