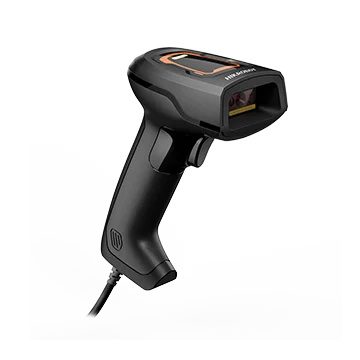

Hikrobot MV-IDH2000/03SR/03WN/U Enterprise USB-Wired Handheld Code Reader

Handheld code readers

Hikrobot MV-IDH2000/13NR/05WN/U Industial Wired Handheld Code Reader

Model MV-IDH2000/13NR/05WN/UHikrobot

Resolution1280 × 1024
SensorCMOS
InterfaceUSB 2.0
Focal length4.9 mm

$159.00

Ships in 2-3 weeks

0.32 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-IDH2000/13NR/05WN/U Industial Wired Handheld Code Reader. Built-in code reading algorithm for decoding different types of 1D codes and 2D codes. Provides good robustness to read codes with spots, defects and low contrast ratio.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-IDH2000/13NR/05WN/U
Brand	Hikrobot
Min. accuracy	1D codes: 3 mil; 2D codes: 4 mil
Detection angle	Tilt angle ± 65°, skew angle ± 65°, rotation angle 360°
Symbol contrast	20%
Prompt	LED indicator, buzzer, vibrator
Laser safety class	Laser 2

Optics

Depth of field	Code 128 (3 mil): 30 mm to 110 mm; Code 128 (10 mil): 20 mm to 205 mm; Data Matrix (5 mil): 40 mm to 85 mm; QR Code (10 mil): 20 mm to 140 mm; QR Code (20 mil): 20 mm to 200 mm
Field of view	Horizontal 39°, vertical 29°
Focal length	4.9 mm

Sensor and imaging

Symbologies	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D codes: QR Code, Data Matrix, MicroQR, Aztec; Stacked code: PDF417
Sensor type	CMOS
Resolution	1280 × 1024
Aiming system	Cross laser aiming

Interfaces and I/O

Communication protocol	SmartSDK, Serial, USB (HID/CDC)
Data interface	USB 2.0
Client software	IDMVS

Light

Ambient illumination	0 lux to 100000 lux
Light source	White LED
Wavelength	650 nm

Environment and compliance

Ingress protection	IP42
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	5% RH to 95% RH (no condensation)
Certification	CE, KC

Electrical

Power supply	5 VDC
Current consumption	0.9 A (max.), 0.5 A (typical)
Maximum power	1 mW

Mechanical

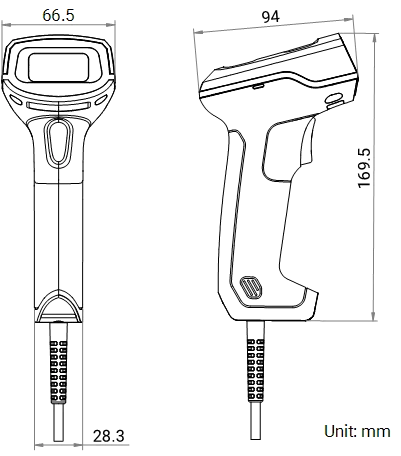

Dimension	66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7")
Weight	Approx. 160 g (0.4 lb.)
Pulse width	8 ms
Drop height	1.8 m
Shipping weight (estimated)	0.32 kg

Downloads

Features

Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.
Provides good robustness to read codes with spots, defects and low contrast ratio.
Supports multiple output modes, such as USB-HID, USB-CDC, and RS-232.
Easy to replace components.
IP42 and drop height of 1.8 m.
Supports displaying device status via buzzer and indicator.
