Handheld code readers

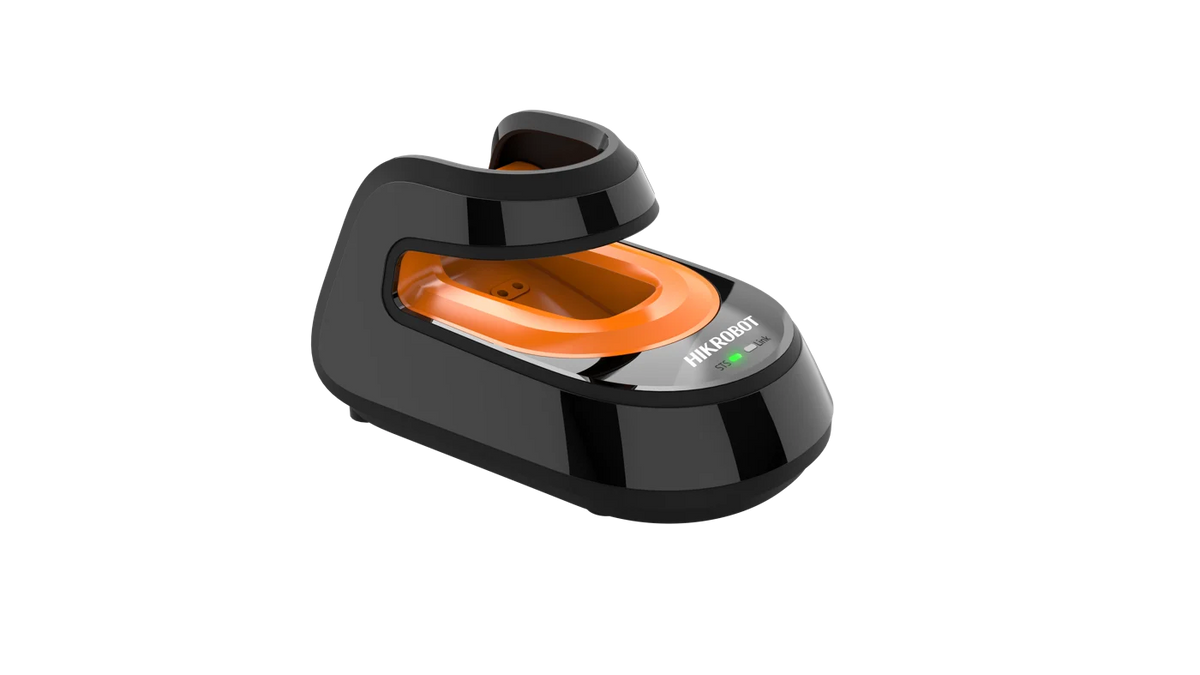

Hikrobot MV-IDH2000B/CBASE/U IDH2000 series Wireless Handheld Code Reader Charge Base

Model MV-IDH2000B/CBASE/UHikrobot

InterfaceUSB 2.0 (Type B), USB 2.0 (Type A)
ConnectionWireless
Power supply5 VDC
Current consumption1.5 A (max.), 0.01 A (during standby)

$179.00

Ships in 2-3 weeks

0.27 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-IDH2000B/CBASE/U IDH2000 series Wireless Handheld Code Reader Charge Base. Built-in code reading algorithm for decoding different types of 1D codes and 2D codes. Provides good robustness to read codes with spots, defects and low contrast ratio.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-IDH2000B/CBASE/U
Brand	Hikrobot

Interfaces and I/O

Data interface	USB 2.0 (Type B), USB 2.0 (Type A)

Environment and compliance

Ingress protection	IP40
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	5% RH to 95% RH (no condensation)

Electrical

Power supply	5 VDC
Current consumption	1.5 A (max.), 0.01 A (during standby)

Mechanical

Dimension	82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0")
Weight	Approx. 120 g (0.3 lb.)
Shipping weight (estimated)	0.27 kg

Downloads

Features

Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.
Provides good robustness to read codes with spots, defects and low contrast ratio.
Supports continuous code reading, batch code reading for improving code reading efficiency.
Supports wireless communication via Bluetooth.
Adopts 2700 mAh battery with long standby time.
IP40 and drop height of 1.8 m.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
