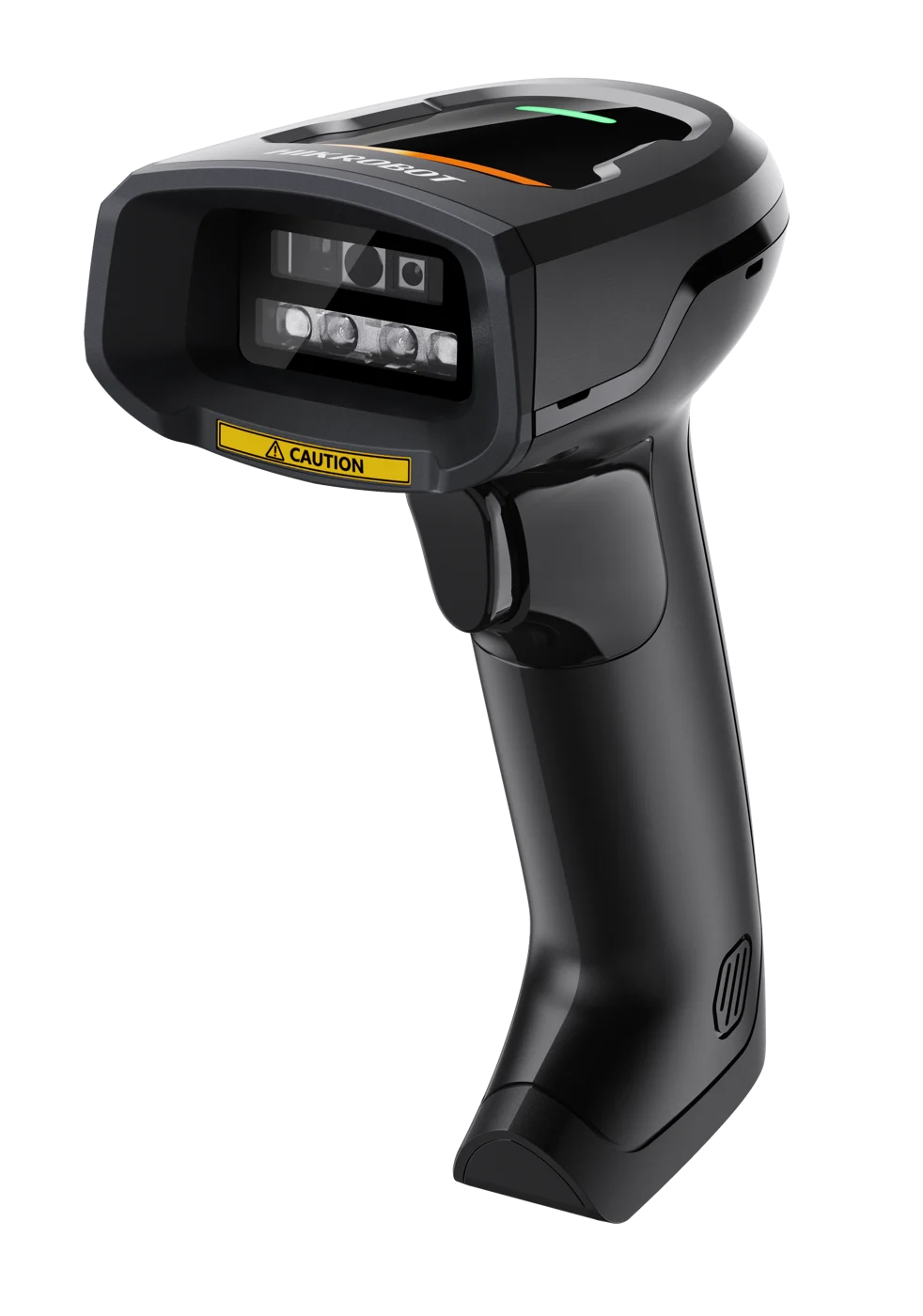

Hikrobot MV-IDH2000PB/13SR/05RN/UC Industrial wireless handheld code reader package

Model MV-IDH2000PB/13SR/05RN/UCHikrobot

Resolution1280 × 1024
SensorCMOS
InterfaceUSB 2.0 (Type B)
ConnectionWireless

$179.00

Ships in 2-3 weeks

0.32 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Handheld code readers

MV-IDH2000PB/13SR/05RN/UC: resolution 1280 x 1024; sensor type CMOS; field of view Horizontal 39°, vertical 29°; data interface USB 2.0 (Type B); communication protocol SmartSDK, Bluetooth, USB (HID/CDC).

Hikrobot MV-IDH2000PB/13SR/05RN/UC Industrial wireless handheld code reader package. Built-in code reading algorithm for decoding different types of 1D codes and 2D codes. Provides good robustness to read codes with spots, defects and low contrast ratio.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

Model	MV-IDH2000PB/13SR/05RN/UC
Brand	Hikrobot
Min. accuracy	1D codes: 3 mil; 2D codes: 5 mil
Detection angle	Tilt angle ± 65°, skew angle ± 65°, rotation angle 360°
Symbol contrast	20%
Battery	2700 mAh
Charging time	6 h
Endurance	10 h (interval scanning, once in 2 seconds)
Prompt	LED indicator, buzzer, vibrator
Laser safety class	Laser 1

Optics

Depth of field	Code 128 (3 mil): 70 mm to 155 mm; Code 128 (10 mil): 30 mm to 430 mm; QR Code (10 mil): 45 mm to 230 mm; QR Code (15 mil): 20 mm to 350 mm; QR Code (20 mil): 20 mm to 450 mm
Field of view	Horizontal 39°, vertical 29°

Sensor and imaging

Symbologies	1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin; Stacked code: PDF417; GSI code: GS1-128, GS1-QR, GS1-Data Matrix
Sensor type	CMOS
Resolution	1280 × 1024
Aiming system	Cross laser aiming

Interfaces and I/O

Communication mode	Bluetooth wireless module, supports Bluetooth BT 5.1, BLE
Wireless range	80 m (open range)
Communication protocol	SmartSDK, Bluetooth, USB (HID/CDC)
Data interface	USB 2.0 (Type B)
Client software	IDMVS
Data interface (smart base)	USB 2.0 (Type B), USB 2.0 (Type A)

Light

Ambient illumination	0 lux to 100000 lux
Light source	White LED, red LED, blue LED, and supports polling of two-color or three-color light source.
Laser wavelength	650 nm

Environment and compliance

Ingress protection	IP42
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity	5% RH to 95% RH (no condensation)
Certification	CE, KC
Ingress protection (smart base)	IP40
Temperature (smart base)	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity (smart base)	5% RH to 95% RH (no condensation)

Electrical

Power supply	5 VDC
Current consumption	1.5 A (max.), 0.14 A (during standby)
Laser output power (max.)	0.39 mW
Power supply (smart base)	5 VDC
Current consumption (smart base)	1.5 A (max.), 0.01 A (during standby)

Mechanical

Dimension	66.5 mm × 96.9 mm × 170.2 mm (2.6" × 3.8" × 6.7")
Weight	Approx. 160 g (0.4 lb.)
Drop height	1.8 m, 50 times
Pulse width	8 ms
Dimension (smart base)	82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0")
Weight (smart base)	Approx. 120 g (0.3 lb.)
Shipping weight (estimated)	0.32 kg

Downloads

Features

CMOS sensor
USB 2.0 interface (Type B)
Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.
Provides good robustness to read codes with spots, defects and low contrast ratio.
Supports switching to white light, red light, or blue light, and supports polling of two-color or three-color light source, providing greater scene adaptability and enhanced code reading performance.
Adopts Bluetooth 5.0 wireless technology, and supports stable connection with max. transmission distance of 80 meters in open areas for more efficient operation.
Adopts 2700 mAh battery with long standby time.
IP42 and drop height of 1.8 m (50 times).
