Hikrobot MV-IDH2000B/03SR/03WN/UC Industrial wireless handheld code reader package

Handheld code readers

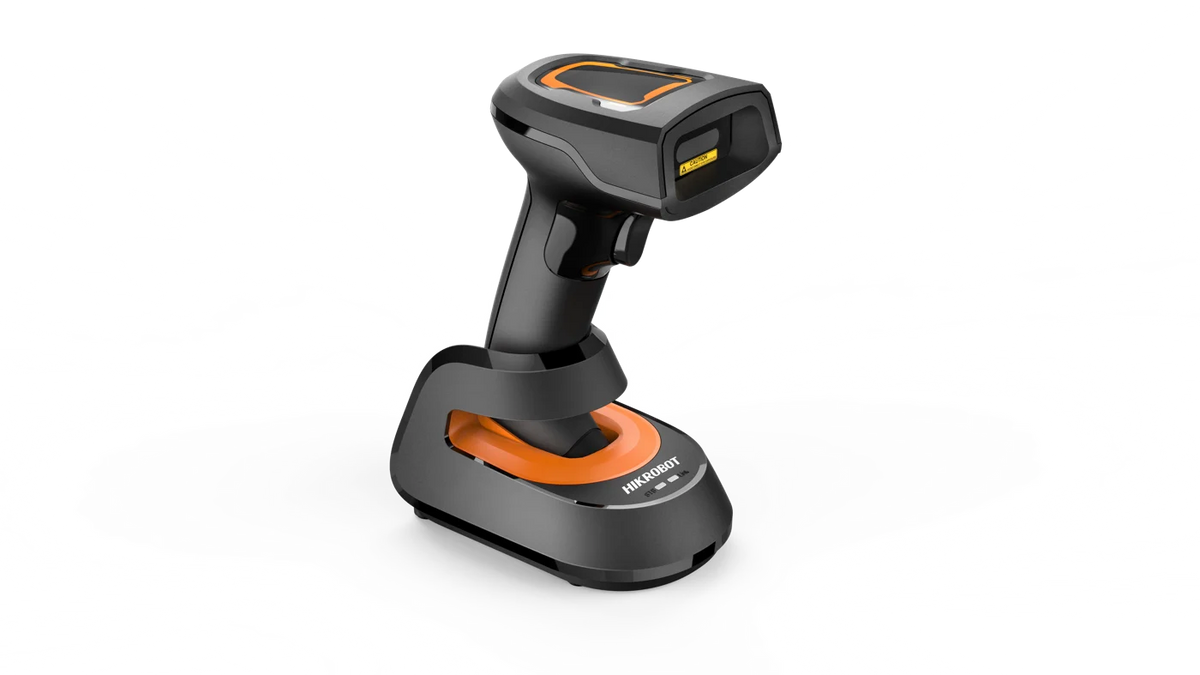

Hikrobot MV-IDH2000RF/03SR/03WN/UC Wireless Handheld Code Reader Package

Model MV-IDH2000RF/03SR/03WN/UCHikrobot

Resolution640 × 480
SensorCMOS, global shutter
Speed50 fps
Pixel size3.74 μm × 3.74 μm
Focal length3.1 mm

$179.00

Ships in 2-3 weeks

0.32 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-IDH2000RF/03SR/03WN/UC Wireless Handheld Code Reader Package. Built-in code reading algorithm for decoding different types of 1D codes and 2D codes. Provides good robustness to read codes with spots, defects and low contrast ratio.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-IDH2000RF/03SR/03WN/UC
Brand	Hikrobot
Min. accuracy	4 mil
Symbol contrast	20%
Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Radio frequency	2.4 G
Battery	2700 mAh, chargeable lithium battery
Charging time	6 h
Endurance	12 h (interval scanning, once in 2 seconds)
Prompt	LED indicator, buzzer
Laser safety class	Laser 2
Repetitive frequency	50 Hz

Optics

Depth of field	EAN 13 (13 mil): 30 mm to 240 mm; Code 39 (5 mil): 50 mm to 100 mm; Code 128 (10 mil): 30 mm to 240 mm; Data Matrix (10 mil): 40 mm to 130 mm; QR Code (15 mil): 15 mm to 205 mm
Field of view	Horizontal 42°, vertical 32°
Focal length	3.1 mm

Sensor and imaging

Symbologies	1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 25, ITF 14, UPCA, UPCE; 2D codes: QR Code, Data Matrix, MicroQR, Aztec; Stacked codes: PDF417
Max. frame rate	50 fps
Sensor type	CMOS, global shutter
Pixel size	3.74 μm × 3.74 μm
Sensor size	1/6"
Resolution	640 × 480
Aiming system	Orange LED

Interfaces and I/O

Wireless range	80 m (open range)
Communication protocol	SmartSDK, USB, 2.4 G
Data interface	Code reader: USB 2.0 (Type B); Smart base: USB 2.0 (Type B), USB 2.0 (Type A)
Client software	IDMVS

Light

Ambient illumination	0 lux to 100000 lux
Light source	White LED
Wavelength	650 nm
Beam divergence angle	14.5°

Environment and compliance

Ingress protection	Code reader: IP52; Smart base: IP40
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity	5% RH to 95% RH (no condensation)
Certification	CE, KC

Electrical

Power supply	5 VDC
Max. power consumption	6 W @ 5 VDC
Maximum power	1 mW

Mechanical

Lens mount	M5.0-mount

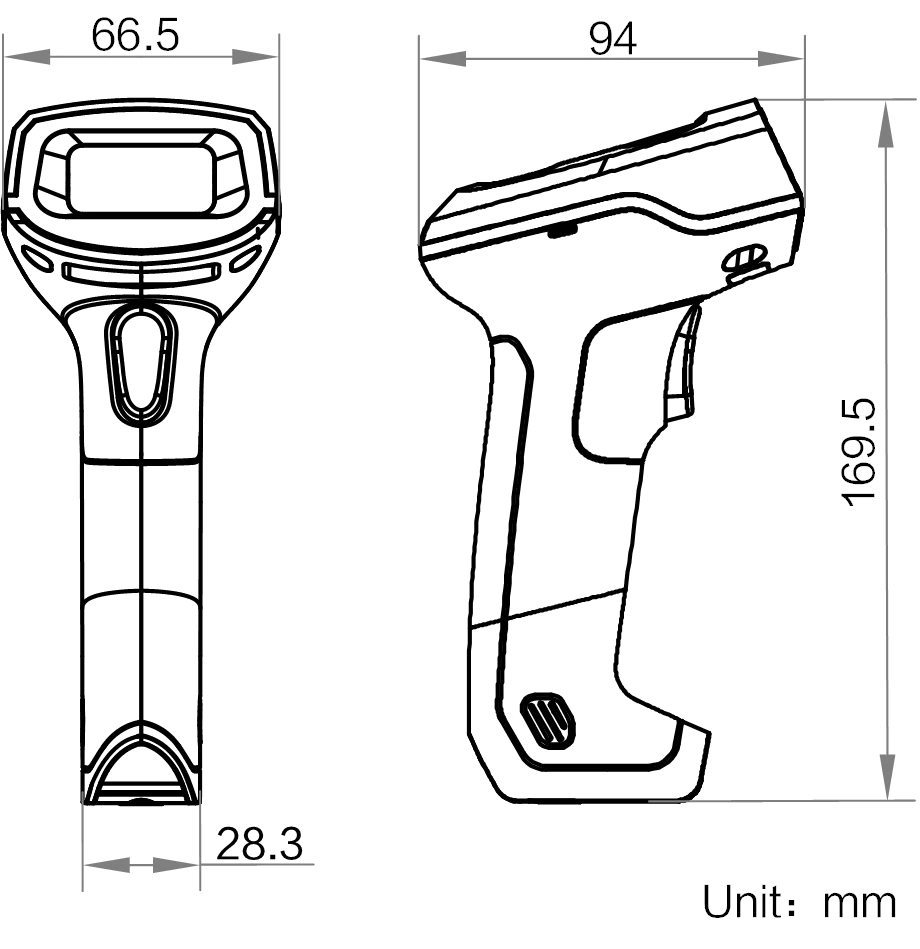

Dimension	Code reader: 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7"); Smart base: 82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0")
Weight	Code reader: Approx. 160 g (0.4 lb.); Smart base: Approx. 120 g (0.3 lb.)
Pulse width	8 ms
Shipping weight (estimated)	0.32 kg

Downloads

Features

Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.
Provides good robustness to read codes with spots, defects and low contrast ratio.
Supports continuous code reading, batch code reading for improving code reading efficiency.
Supports 2.4 G wireless communication with stable and reliable signal.
Adopts 2700 mAh battery with long standby time.
IP52 and drop height of 1.5 m.
