Hikrobot MV-CT032G-38GM01-MAX-35L-WBC 3.2 MP GigE area scan camera, Gen 3, Mono, MAX, 35 mm liquid lens, White basic light, Standard cover
  • Hikrobot MV-CT032G-38GM01-MAX-35L-WBC 3.2 MP GigE area scan camera, Gen 3, Mono, MAX, 35 mm liquid lens, White basic light, Standard cover

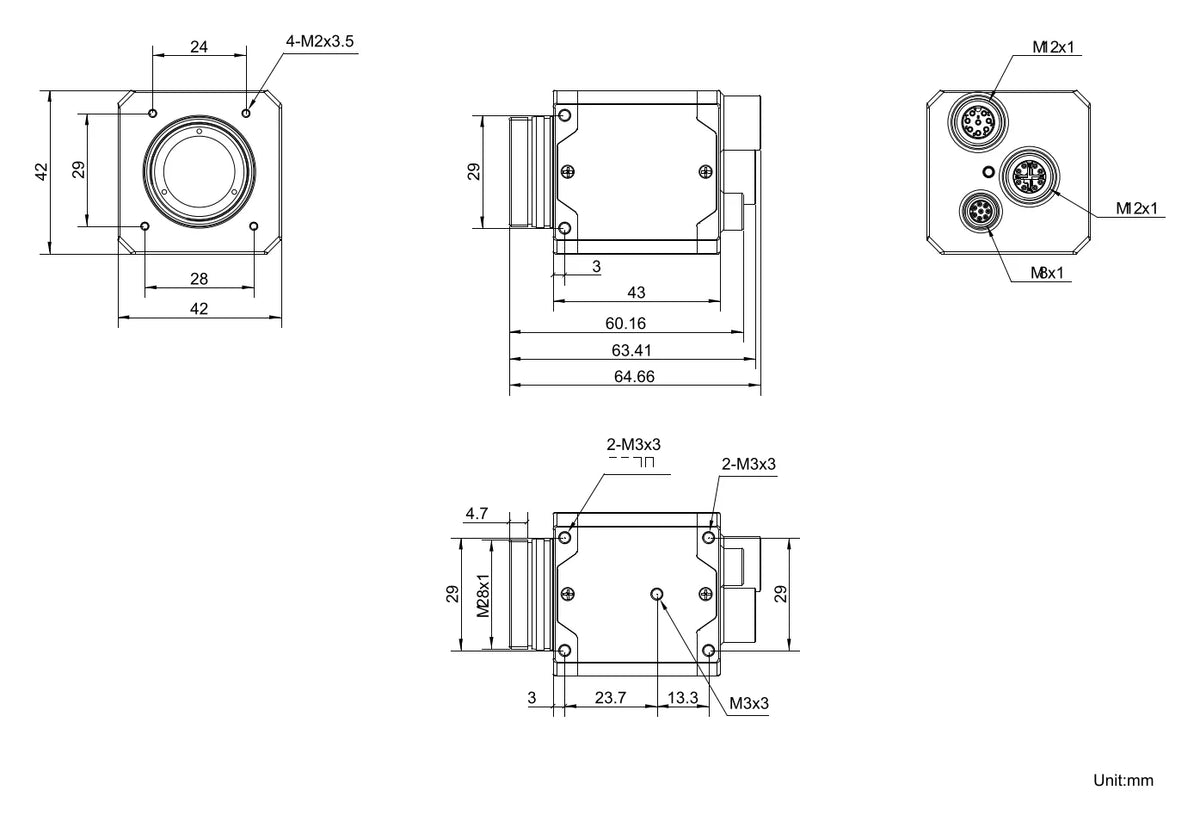

  • MV-CT032G-38GM01-MAX-35L-WBC dimensions (mm)

Area scan cameras

Hikrobot MV-CT032G-38GM01-MAX-35L-WBC 3.2 MP GigE area scan camera, Gen 3, Mono, MAX, 35 mm liquid lens, White basic light, Standard cover

Model MV-CT032G-38GM01-MAX-35L-WBCHikrobot

  • Resolution2048 × 1536
  • SensorCMOS, global shutter
  • Lens mountC-mount
  • Pixel size3.45 μm × 3.45 μm
$649.00

Ships in 2-3 weeks

0.45 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CT032G-38GM01-MAX-35L-WBC: resolution 2048 x 1536; sensor type CMOS, global shutter; sensor size 1/1.8”; dynamic range 73.9 dB.

Hikrobot MV-CT032G-38GM01-MAX-35L-WBC 3.2 MP GigE area scan camera, Gen 3, Mono, MAX, 35 mm liquid lens, White basic light, Standard cover. PRO and MAX versions feature fully waterproof connectors PRO and MAX versions feature precise temperature control for fast thermal equilibrium.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CT032G-38GM01-MAX-35L-WBC
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3.45 μm × 3.45 μm
Sensor size1/1.8”
Resolution2048 × 1536
Dynamic range73.9 dB
SNR42.4 dB
GainHigh full well capacity: 0 dB to 12.8 dB; High sensitivity: 0 dB to 24 dB
Exposure timeHigh full well capacity: 30 μs to 10 sec; High sensitivity: 5 μs to 10 sec
Exposure modeAuto exposure supported, Manual exposure, One-shot exposure mode, Trigger Width and Trigger Controlled supported
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O8-pin M8 connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2)
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating systemWindows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits

Electrical

Power supply9 VDC to 24 VDC, supports PoE

Mechanical

Lens mountC-Mount
Shipping weight (estimated)0.45 kg

Engineering data

Field of view and resolution with the MV-CT032G-38GM01-MAX-35L-WBC

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area7.07 × 5.3 mm1/1.8" optical format
Lens image circle needed≥ Ø 8.8 mmC-mount
Pixel pitch3.45 µm2048 x 1536 px
With a 16 mm lens at 500 mm221 × 166 mm0.108 mm per pixel
Dynamic range73.9 dB
SNR42.4 dB
ShutterGlobal
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm265 × 199 mm0.129 mm per pixel442 × 331 mm0.216 mm per pixel884 × 662 mm0.432 mm per pixel
12 mm177 × 132 mm0.086 mm per pixel295 × 221 mm0.144 mm per pixel589 × 442 mm0.288 mm per pixel
16 mm133 × 99.4 mm0.065 mm per pixel221 × 166 mm0.108 mm per pixel442 × 331 mm0.216 mm per pixel
25 mm84.8 × 63.6 mm0.041 mm per pixel141 × 106 mm0.069 mm per pixel283 × 212 mm0.138 mm per pixel
35 mm60.6 × 45.4 mm0.03 mm per pixel101 × 75.7 mm0.049 mm per pixel202 × 151 mm0.099 mm per pixel
50 mm42.4 × 31.8 mm0.021 mm per pixel70.7 × 53 mm0.035 mm per pixel141 × 106 mm0.069 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Lenses for this C-mount camera

Covers up to 9.5 mm diagonal; this camera's sensor is 8.8 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 8.8 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 8.8 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 8.8 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 8.8 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 8.8 mm
