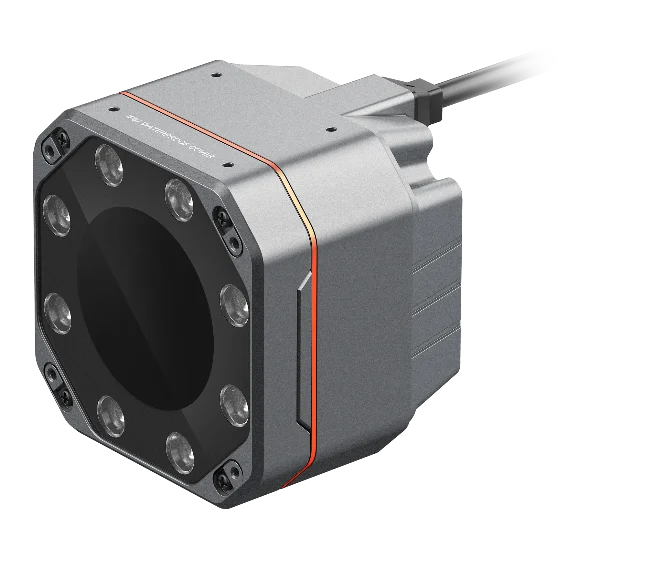

Hikrobot MV-CT2CG0032/G/16LC/WN 3.2MP Area Scan Camera, 3rd Gen., GigE, color, MAX, 16mm liquid lens, white lighting, with lens cover
  • Hikrobot MV-CT2CG0032/G/16LC/WN 3.2MP Area Scan Camera, 3rd Gen., GigE, color, MAX, 16mm liquid lens, white lighting, with lens cover
  • MV-CT2CG0032/G/16LC/WN dimensions (mm)

Area scan cameras

Hikrobot MV-CT2CG0032/G/16LC/WN 3.2MP Area Scan Camera, 3rd Gen., GigE, color, MAX, 16mm liquid lens, white lighting, with lens cover

Model MV-CT2CG0032/G/16LC/WNHikrobot

  • Resolution2048 × 1536
  • SensorCMOS, global shutter
  • Lens mountC-mount
  • Mono / colourColor
  • Pixel size3.45 μm × 3.45 μm
$649.00

Ships in 2-3 weeks

0.27 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CT2CG0032/G/16LC/WN: resolution 2048 x 1536; sensor type CMOS, global shutter; sensor size 1/1.8"; data interface type 8-pin M12 X-Code waterproof aviation connector; mono/color Color.

Hikrobot MV-CT2CG0032/G/16LC/WN 3.2MP Area Scan Camera, 3rd Gen., GigE, color, MAX, 16mm liquid lens, white lighting, with lens cover. The devices with PRO version and MAX version support waterproof connector. The devices with PRO version and MAX version adopt precision temperature control design for fast heat balance.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CT2CG0032/G/16LC/WN
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3.45 μm × 3.45 μm
Sensor size1/1.8"
Resolution2048 × 1536
Max. frame rate39 fps @ 2048 × 1536 Bayer GR 8; 77.5 fps @ 2048 × 1536 Bayer GR 8 (lossless compression mode enabled)
Dynamic range73.9 dB
SNR42.4 dB
GainHigh full well capacity: 0 dB to 12.8 dB; High sensitivity: 0 dB to 24 dB
Exposure timeHigh full well capacity: 30 μs to 10 sec; High sensitivity: 5 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled
Mono/colorColor
Pixel formatMono 8; Bayer GR 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Data interface type8-pin M12 X-Code waterproof aviation connector
Control interface8-pin M12 A-Code waterproof aviation connector
Digital I/O8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP67 (under proper lens and lens cap installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 1.7 W @ 24 VDC (fast heat balance not enabled and external device not be controlled)

Mechanical

Lens mountC-mount
Dimension42 mm × 42 mm × 43 mm (1.7" × 1.7" × 1.7")
WeightApprox. 120 g (0.3 lb.)
Shipping weight (estimated)0.27 kg

Engineering data

Field of view and resolution with the MV-CT2CG0032/G/16LC/WN

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area7.07 × 5.3 mm1/1.8" optical format
Lens image circle needed≥ Ø 8.8 mmC-mount
Pixel pitch3.45 µm2048 x 1536 px
Image data at max frame rate123 MB/sCalculated: 39 fps × 2048 × 1536 px at 8 bit · GigE carries 125 MB/s nominal
With a 16 mm lens at 500 mm221 × 166 mm0.108 mm per pixel
Dynamic range73.9 dB
SNR42.4 dB
Power consumption1.7 Wtyp. at 24 V DC
ShutterGlobal
Weight120 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm265 × 199 mm0.129 mm per pixel442 × 331 mm0.216 mm per pixel884 × 662 mm0.432 mm per pixel
12 mm177 × 132 mm0.086 mm per pixel295 × 221 mm0.144 mm per pixel589 × 442 mm0.288 mm per pixel
16 mm133 × 99.4 mm0.065 mm per pixel221 × 166 mm0.108 mm per pixel442 × 331 mm0.216 mm per pixel
25 mm84.8 × 63.6 mm0.041 mm per pixel141 × 106 mm0.069 mm per pixel283 × 212 mm0.138 mm per pixel
35 mm60.6 × 45.4 mm0.03 mm per pixel101 × 75.7 mm0.049 mm per pixel202 × 151 mm0.099 mm per pixel
50 mm42.4 × 31.8 mm0.021 mm per pixel70.7 × 53 mm0.035 mm per pixel141 × 106 mm0.069 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band; supply voltage and power per channel; the camera's printed connector for cables.

Build the full system with this part

Lenses for this C-mount camera

Covers up to 9.5 mm diagonal; this camera's sensor is 8.8 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 8.8 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 8.8 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 8.8 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 8.8 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 8.8 mm
