Hikrobot MV-CT016G-78GC01-MAX 1.6 MP GigE area scan camera, Gen 3, Color, MAX
  • Hikrobot MV-CT016G-78GC01-MAX 1.6 MP GigE area scan camera, Gen 3, Color, MAX
  • MV-CT016G-78GC01-MAX dimensions (mm)

Area scan cameras

Hikrobot MV-CT016G-78GC01-MAX 1.6 MP GigE area scan camera, Gen 3, Color, MAX

Model MV-CT016G-78GC01-MAXHikrobot

  • Resolution1440 × 1080
  • SensorCMOS, global shutter
  • Interface8-pin M12 X-coded waterproof connector
  • Lens mountC-mount
  • Mono / colourColor
  • Pixel size3.45 μm × 3.45 μm
$459.00

Ships in 2-3 weeks

0.27 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CT016G-78GC01-MAX: resolution 1440 x 1080; sensor type CMOS, global shutter; sensor size 1/2.9”; data interface type 8-pin M12 X-coded waterproof connector; dynamic range 68.3 dB.

Hikrobot MV-CT016G-78GC01-MAX 1.6 MP GigE area scan camera, Gen 3, Color, MAX. PRO and MAX versions feature fully waterproof connectors PRO and MAX versions feature precise temperature control for fast thermal equilibrium

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CT016G-78GC01-MAX
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.9”
Resolution1440 × 1080
Max. frame rate180 fps @ 1440 × 1080 Bayer GB 8 (lossless compression on)
Dynamic range68.3 dB
SNR44 dB
Gain0 dB ~ 24 dB
Exposure time23 μs ~ 10 sec
Exposure modeAuto exposure supported, Manual exposure, One-shot exposure mode, Trigger Width and Trigger Controlled supported
Mono/colorColor
Pixel formatMono 8; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Data interface type8-pin M12 X-coded waterproof connector
Console interface8-pin M12 A-coded waterproof connector
Digital I/O8-pin M8 A-coded connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2)
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP67 (with lens, cover and cables properly installed)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating systemWindows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits

Electrical

Power supply9 VDC to 24 VDC, supports PoE
Power consumption1.7 W @ 24 VDC (fast thermal balance off, external devices not controlled)

Mechanical

Lens mountC-Mount
Dimension42 mm × 42 mm × 43 mm
WeightApprox. 120 g (0.3 lb.)
Shipping weight (estimated)0.27 kg

Engineering data

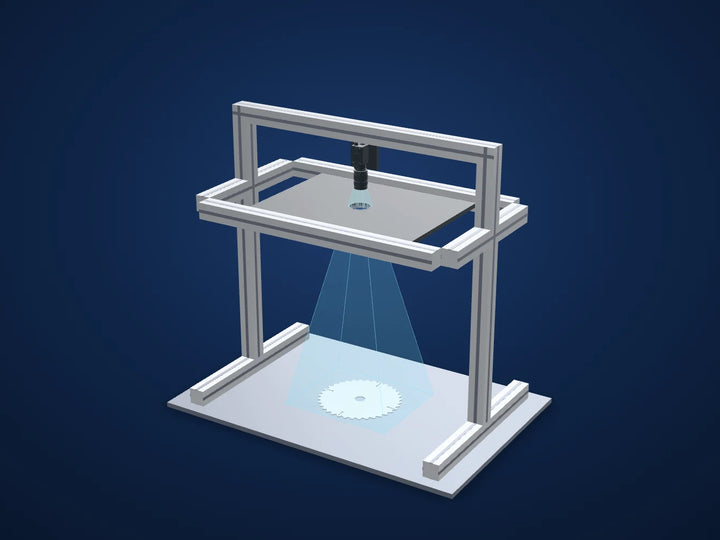

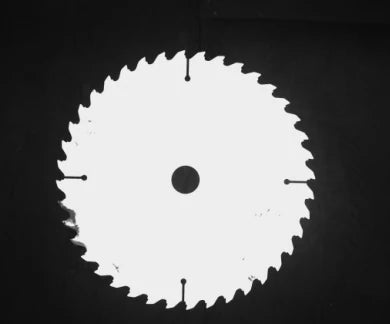

Field of view and resolution with the MV-CT016G-78GC01-MAX

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area4.97 × 3.73 mm1/2.9" optical format
Lens image circle needed≥ Ø 6.2 mmC-mount
Pixel pitch3.45 µm1440 x 1080 px
With a 8 mm lens at 500 mm311 × 233 mm0.216 mm per pixel
Dynamic range68.3 dB
SNR44 dB
Power consumption1.7 Wat 24 V DC
ShutterGlobal
Exposure range23 µs to 10 s
Weight120 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
4 mm373 × 280 mm0.259 mm per pixel621 × 466 mm0.431 mm per pixel1242 × 932 mm0.863 mm per pixel
6 mm248 × 186 mm0.173 mm per pixel414 × 311 mm0.288 mm per pixel828 × 622 mm0.575 mm per pixel
8 mm186 × 140 mm0.129 mm per pixel311 × 233 mm0.216 mm per pixel621 × 466 mm0.431 mm per pixel
12 mm124 × 93.2 mm0.086 mm per pixel207 × 155 mm0.144 mm per pixel414 × 311 mm0.288 mm per pixel
16 mm93.2 × 69.9 mm0.065 mm per pixel155 × 117 mm0.108 mm per pixel311 × 233 mm0.216 mm per pixel
25 mm59.6 × 44.8 mm0.041 mm per pixel99.4 × 74.6 mm0.069 mm per pixel199 × 149 mm0.138 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Lenses for this C-mount camera

Covers up to 9.5 mm diagonal; this camera's sensor is 6.2 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 6.2 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 6.2 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 6.2 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 6.2 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 6.2 mm

Cables and frame grabbers
