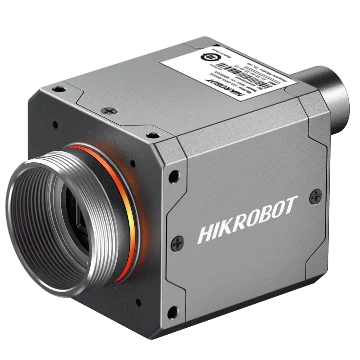

Hikrobot MV-CT2MG0016/G/NN/NN 1.6MP Area Scan Camera, 3rd Gen., GigE, Mono, MAX
Model MV-CT2MG0016/G/NN/NNHikrobot
- Resolution1440 × 1080
- SensorCMOS, global shutter
- Lens mountC-mount
- Mono / colourMono
- Pixel size3.45 μm × 3.45 μm
$459.00
Ships in 2-3 weeks
0.27 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CT2MG0016/G/NN/NN 1.6MP Area Scan Camera, 3rd Gen., GigE, Mono, MAX. The devices with PRO version and MAX version support waterproof connector. The devices with PRO version and MAX version adopt precision temperature control design for fast heat balance.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CT2MG0016/G/NN/NN |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9" |
| Resolution | 1440 × 1080 |
| Max. frame rate | 78.2 fps @ 1440 × 1080 Mono 8; 180 fps @ 1440 × 1080 Mono 8 (lossless compression mode enabled) |
| Dynamic range | 68.5 dB |
| SNR | 44 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 23 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Mono/color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
|---|---|
| Data interface type | 8-pin M12 X-Code waterproof aviation connector |
| Control interface | 8-pin M12 A-Code waterproof aviation connector |
| Digital I/O | 8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP67 (under proper lens and lens cap installation and wiring) |
|---|---|
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, supports PoE |
|---|---|
| Power consumption | Typ. 1.6 W @ 24 VDC (fast heat balance not enabled and external device not be controlled) |
Mechanical
| Lens mount | C-mount |
|---|---|
| Dimension | 42 mm × 42 mm × 43 mm (1.7" × 1.7" × 1.7") |
| Weight | Approx. 120 g (0.3 lb.) |
| Shipping weight (estimated) | 0.27 kg |
