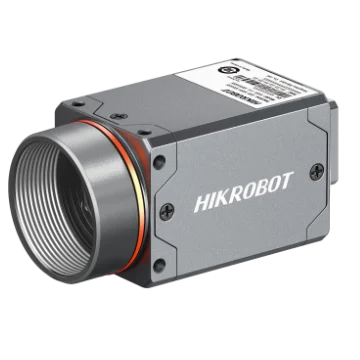

Hikrobot MV-CT004G-200GM01-BASE 0.4 MP GigE area scan camera, Gen 3, Mono, BASE

Area scan cameras

Hikrobot MV-CT004G-200GC01-BASE 0.4 MP GigE area scan camera, Gen 3, Color, BASE

Model MV-CT004G-200GC01-BASEHikrobot

Resolution720 × 540
SensorCMOS, global shutter
InterfaceRJ45 port
Speed200.5 fps @720 × 540 Bayer GB 8
Lens mountC-mount
Mono / colourColor

$279.00

Ships in 2-3 weeks

0.26 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CT004G-200GC01-BASE 0.4 MP GigE area scan camera, Gen 3, Color, BASE. PRO and MAX versions feature fully waterproof connectors PRO and MAX versions feature precise temperature control for fast thermal equilibrium

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CT004G-200GC01-BASE
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Stacked BSI
Pixel size	6.9 μm × 6.9 μm
Sensor size	1/2.9”
Resolution	720 × 540
Max. frame rate	200.5 fps @720 × 540 Bayer GB 8
Dynamic range	62.6 dB
SNR	43.9 dB
Gain	0 dB ~ 24 dB
Exposure time	23 μs ~ 10 sec
Exposure mode	Auto exposure supported, Manual exposure, One-shot exposure mode, Trigger Width and Trigger Controlled supported
Mono/color	Color
Pixel format	Mono 8; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Binning	Not supported
Decimation	Not supported
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Data interface type	RJ45 port
Console interface	Not supported
Digital I/O	8-pin M8 A-coded connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2)
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits

Electrical

Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	1.6 W@12 VDC

Mechanical

Lens mount	C-Mount

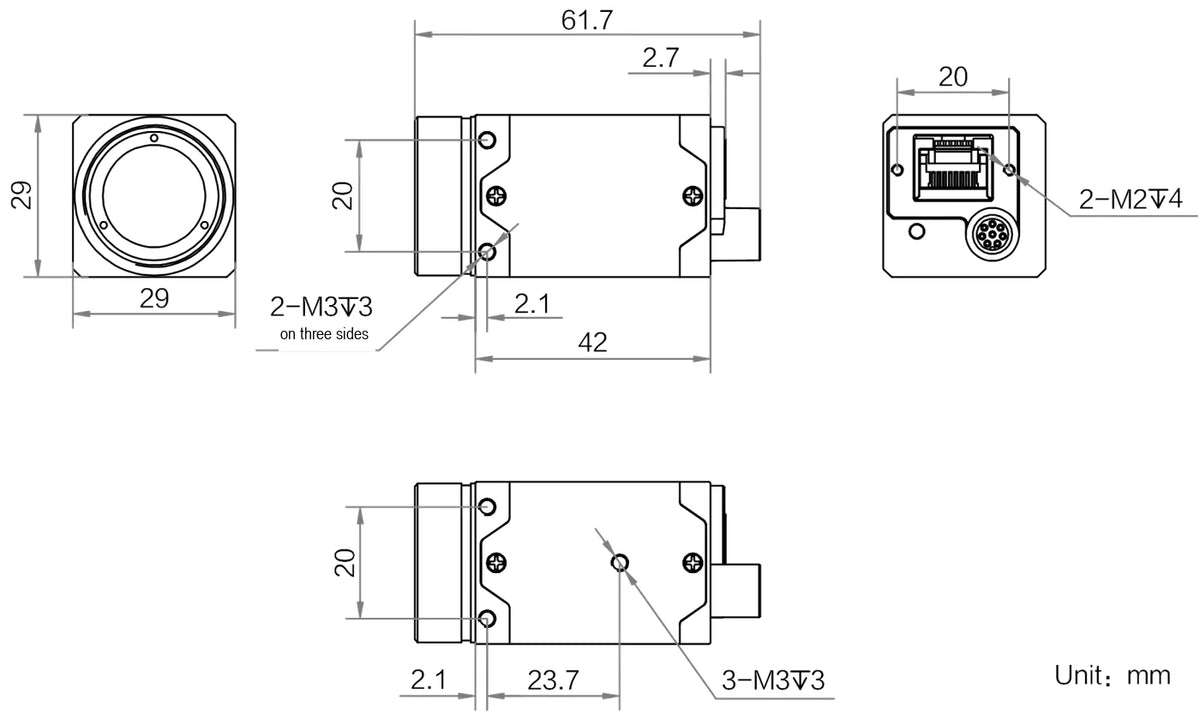

Dimension	29 mm × 29 mm × 42 mm
Weight	Approx. 116 g
Shipping weight (estimated)	0.26 kg

Downloads

Features

PRO and MAX versions feature fully waterproof connectors
PRO and MAX versions feature precise temperature control for fast thermal equilibrium
PRO and MAX color versions feature multispectral fusion with automatic color correction
MAX version integrates lens and light control: lens focusing and lighting control in one unit
Gigabit Ethernet interface: up to 100 m transmission without a repeater
Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
