Hikrobot MV-CT1MG0020/G/NN/NN 2MP Area Scan Camera, 3rd Gen., GigE, Mono, PRO
  • Hikrobot MV-CT1MG0020/G/NN/NN 2MP Area Scan Camera, 3rd Gen., GigE, Mono, PRO

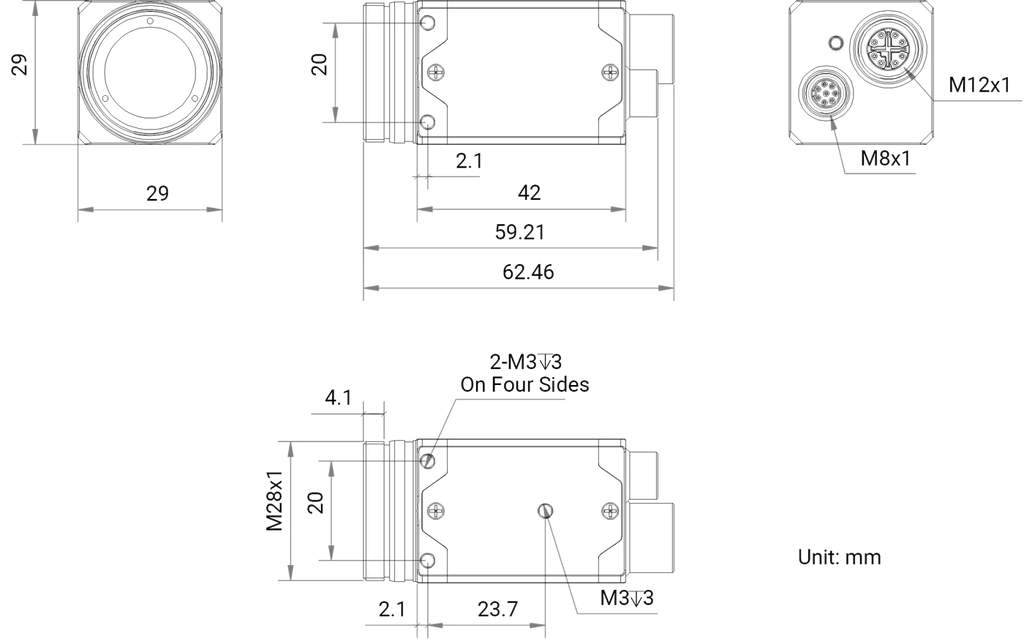

  • MV-CT1MG0020/G/NN/NN dimensions (mm)

Area scan cameras

Hikrobot MV-CT1MG0020/G/NN/NN 2MP Area Scan Camera, 3rd Gen., GigE, Mono, PRO

Model MV-CT1MG0020/G/NN/NNHikrobot

  • Resolution1624 × 1240
  • SensorCMOS, global shutter
  • Lens mountC-mount
  • Mono / colourMono
  • Pixel size3.45 μm × 3.45 μm
$519.00

Ships in 2-3 weeks

0.27 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CT1MG0020/G/NN/NN: resolution 1624 x 1240; sensor type CMOS, global shutter; sensor size 1/2.53"; data interface type 8-pin M12 X-Code waterproof aviation connector; dynamic range 68.5 dB.

Hikrobot MV-CT1MG0020/G/NN/NN 2MP Area Scan Camera, 3rd Gen., GigE, Mono, PRO. The devices with PRO version and MAX version support waterproof connector. The devices with PRO version and MAX version adopt precision temperature control design for fast heat balance.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CT1MG0020/G/NN/NN
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.53"
Resolution1624 × 1240
Max. frame rate60.3 fps @ 1624 × 1240 Mono 8; 177.3 fps @ 1624 × 1240 Mono 8 (lossless compression mode enabled)
Dynamic range68.5 dB
SNR44.1 dB
Gain0 dB to 24 dB
Exposure time23 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled
Pixel formatMono 8/10/10Packed/12/12Packed
Mono/colorMono
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Data interface type8-pin M12 X-Code waterproof aviation connector
Control interfaceNot supported
Digital I/O8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP67 (under proper lens and lens cap installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 1.5 W @ 12 VDC (fast heat balance not enabled)

Mechanical

Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 124 g (0.3 lb.)
Shipping weight (estimated)0.27 kg

Engineering data

Field of view and resolution with the MV-CT1MG0020/G/NN/NN

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area5.6 × 4.28 mm1/2.53" optical format
Lens image circle needed≥ Ø 7 mmC-mount
Pixel pitch3.45 µm1624 x 1240 px
Image data at max frame rate121 MB/sCalculated: 60.3 fps × 1624 × 1240 px at 8 bit · GigE carries 125 MB/s nominal
With a 16 mm lens at 500 mm175 × 134 mm0.108 mm per pixel
Dynamic range68.5 dB
SNR44.1 dB
Power consumption1.5 Wtyp. at 12 V DC
ShutterGlobal
Exposure range23 µs to 10 s
Weight124 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm210 × 160 mm0.129 mm per pixel350 × 268 mm0.216 mm per pixel700 × 535 mm0.431 mm per pixel
12 mm140 × 107 mm0.086 mm per pixel233 × 178 mm0.144 mm per pixel467 × 357 mm0.287 mm per pixel
16 mm105 × 80.2 mm0.065 mm per pixel175 × 134 mm0.108 mm per pixel350 × 268 mm0.216 mm per pixel
25 mm67.2 × 51.4 mm0.041 mm per pixel112 × 85.6 mm0.069 mm per pixel224 × 171 mm0.138 mm per pixel
35 mm48 × 36.7 mm0.03 mm per pixel80 × 61.1 mm0.049 mm per pixel160 × 122 mm0.099 mm per pixel
50 mm33.6 × 25.7 mm0.021 mm per pixel56 × 42.8 mm0.034 mm per pixel112 × 85.6 mm0.069 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
