19-30 mm, F1.1 LWIR Thermal Lens (LS-SWL-0150)
Model LS-SWL-0150
- Focal length19-30 mm
- MountM26x0.5
- Sensor1/2"
- ApertureF1.1
$409.00
Ships in 2-3 weeks
0.18 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
19-30 mm, F1.1 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 19-30 mm; sensor 384x288 17um; aperture F1.1; mount M26X0.5; distortion 0.85%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0150 |
|---|---|
| Angle of view (deg) | 15.35(D)x12.26(H)x9.24(V) |
| Sealing | Front IP 67 |
| Front lens coating | HD |
Optics
| Focal length | 19-30 mm |
|---|---|
| Aperture | F1.1 |
| Distortion | 0.85% |
| Relative illumination | 0.87 |
| Focus range | 1m~∞ |
| Focus method | Fixed |
| Image circle (derived) | dia. 8.2 mm, from the 384 x 288 detector at 17 micron pitch |
Sensor and imaging
| Sensor | 384x288 17um |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M26X0.5 |
|---|---|

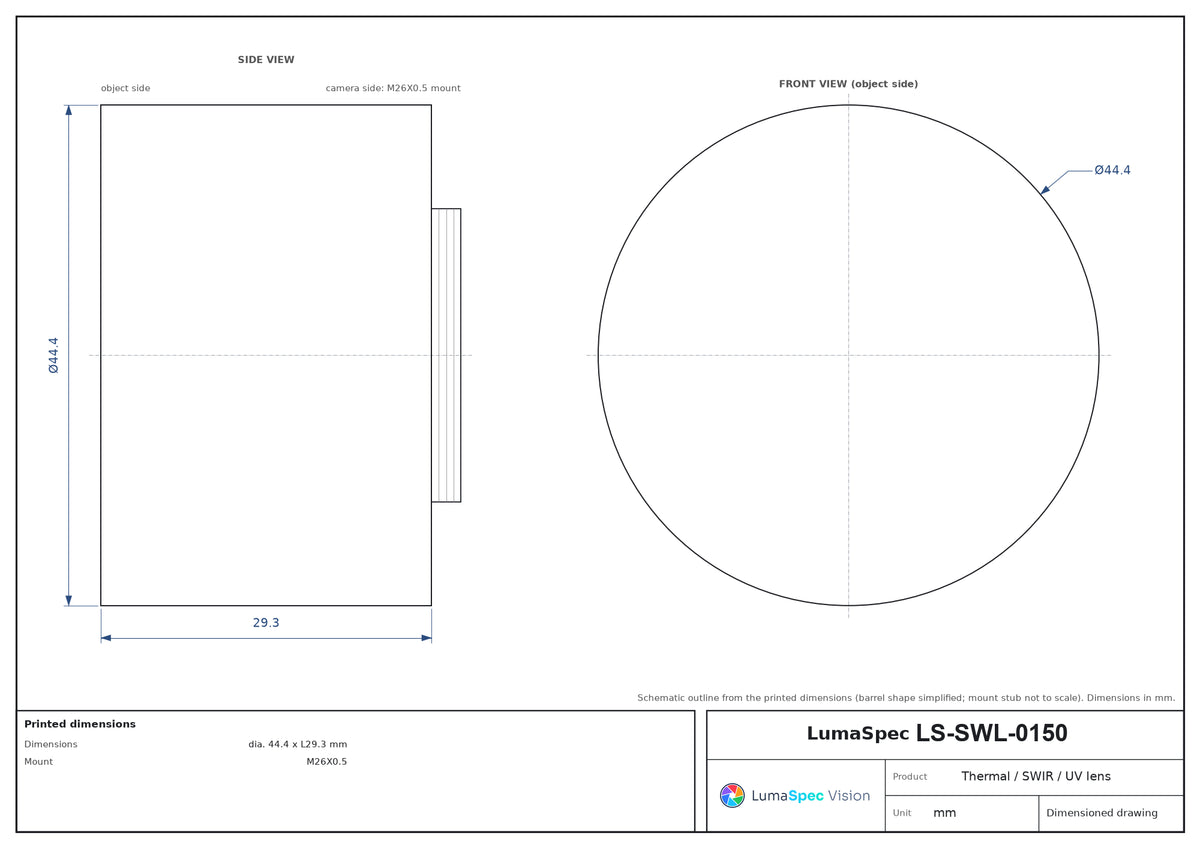

| Dimensions | dia. 44.4 x L29.3 mm |
| Weight | <60g |
| Shipping weight (estimated) | 0.18 kg |
Photo shows a representative model of this series; see the specifications for this model.
