22 mm LWIR Thermal Lens (LS-SWL-0154)
Model LS-SWL-0154
- Focal length22 mm
- MountM22.6x0.5
- Sensor1/1.8"
- TypeThermal (LWIR)
$449.00
Ships in 2-3 weeks
0.17 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
22 mm LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 22 mm; sensor 1960×1200 3.75μm; mount M22.6x0.5; distortion 0.77%; angle of view 22.26° (D)x19.08(H)x11.7(V).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0154 |
|---|---|
| Angle of view (deg) | 22.26(D)x19.08(H)x11.7(V) |
| Sealing | Front IP 67 |
| Front lens coating | Multi-layer coating |
Optics
| Focal length | 22 mm |
|---|---|
| Distortion | 0.77% |
| Relative illumination | 0.53 |
| Mechanical back focal length | 4.2 mm |
| Focus method | Fixed |
| Image circle (derived) | dia. 8.6 mm, from the 1960 x 1200 detector at 3.75 micron pitch |
Sensor and imaging
| Sensor | 1960×1200 3.75μm |
|---|
Mechanical
| Mount | M22.6x0.5 |
|---|---|

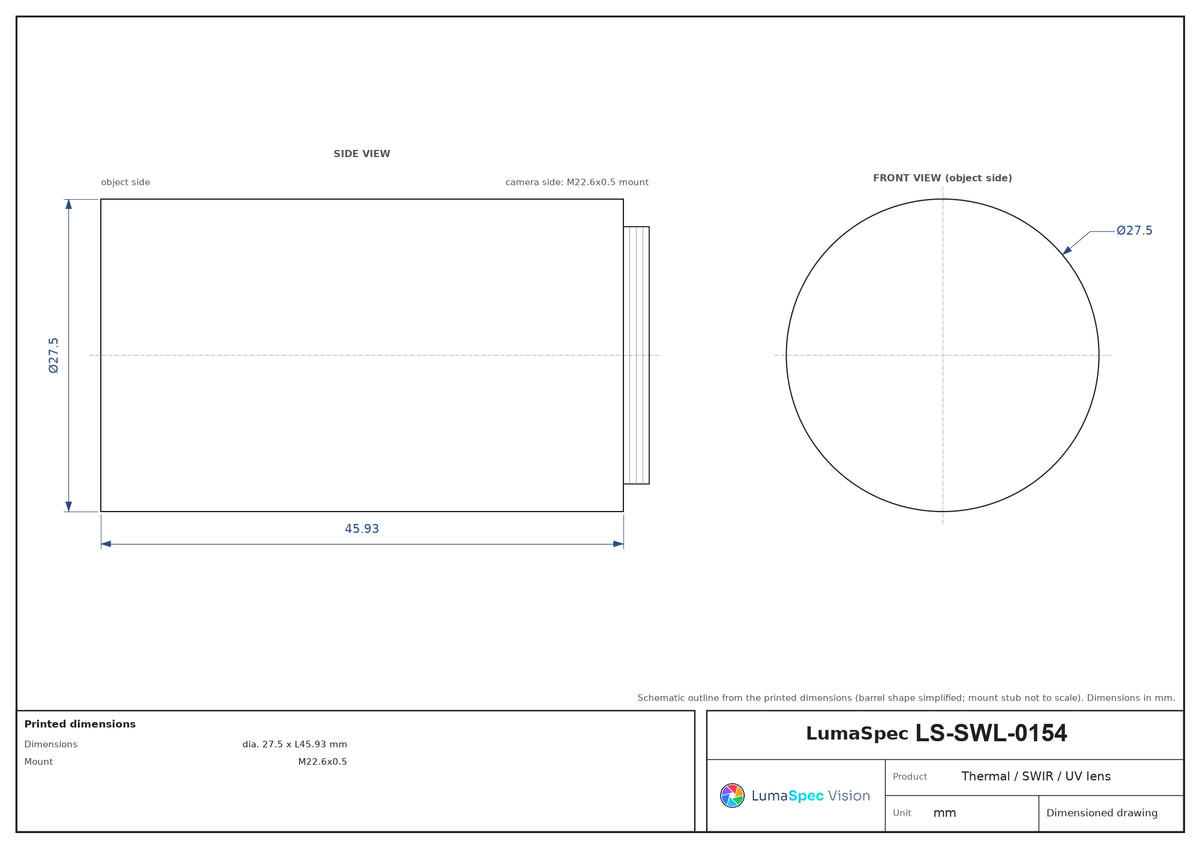

| Dimensions | dia. 27.5 x L45.93 mm |
| Weight | <50g |
| Shipping weight (estimated) | 0.17 kg |
Photo shows a representative model of this series; see the specifications for this model.
