19 mm, F1.2 LWIR Thermal Lens (LS-SWL-0171)
Model LS-SWL-0171
- Focal length19 mm
- MountM17x0.75
- Sensor1/2"
- ApertureF1.2
$409.00
Ships in 2-3 weeks
0.12 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
19 mm, F1.2 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 19 mm; sensor 384×288 17μm; aperture F1.2; mount M17x0.75; angle of view 25.56° (D)x19.68(H)x14.78(V).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0171 |
|---|---|
| Angle of view (deg) | 25.56(D)x19.68(H)x14.78(V) |
| Sealing | Front IP 67 |
| Front lens coating | HD |
Optics
| Focal length | 19 mm |
|---|---|
| Aperture | F1.2 |
| Focus range | 0.5m~∞ |
| Mechanical back focal length | 4.2 mm |
| Focus method | Fixed |
| Image circle (derived) | dia. 8.2 mm, from the 384 x 288 detector at 17 micron pitch |
Sensor and imaging
| Sensor | 384×288 17μm |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M17x0.75 |
|---|---|

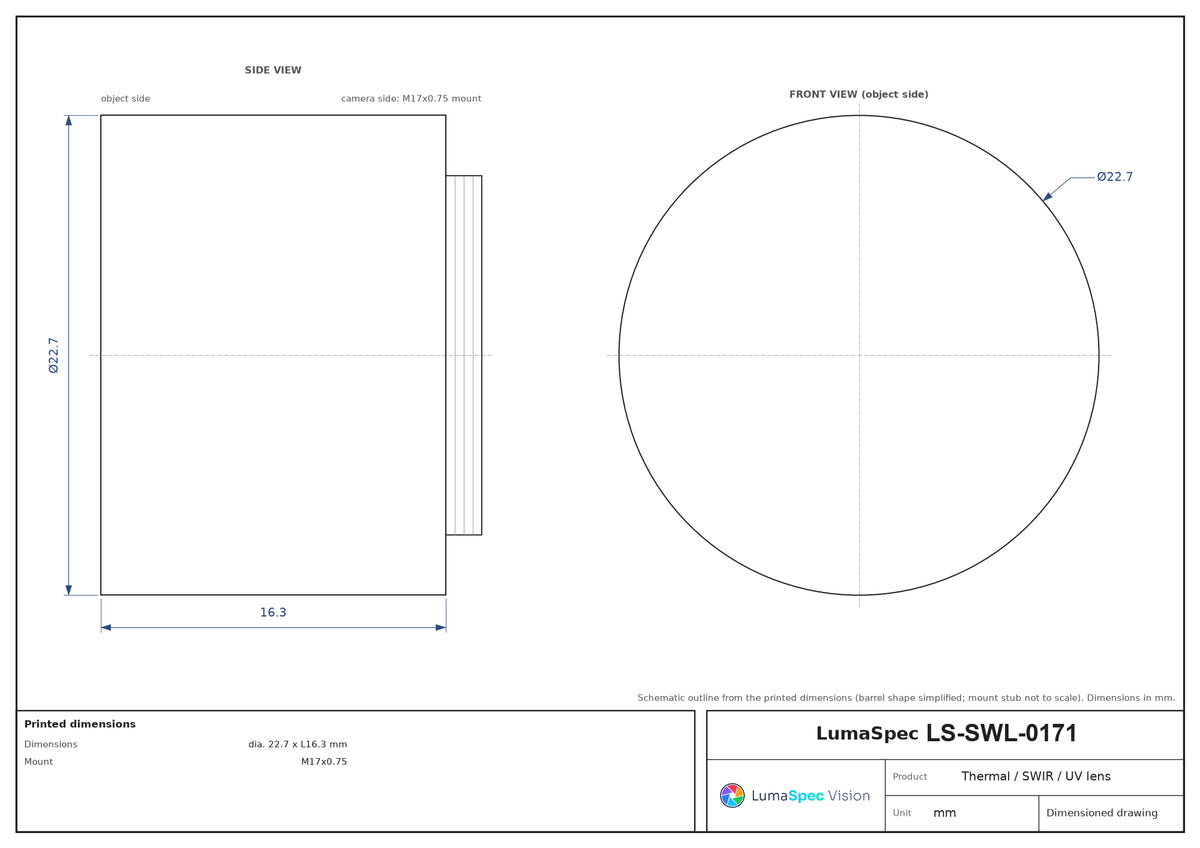

| Dimensions | dia. 22.7 x L16.3 mm |
| Weight | <15g |
| Shipping weight (estimated) | 0.12 kg |
Photo shows a representative model of this series; see the specifications for this model.
