25 mm, F1 LWIR Thermal Lens, BFL 8.5 mm (LS-SWL-0033)
Model LS-SWL-0033
- Focal length25 mm
- MountM33x0.75
- Sensor1/2"
- ApertureF1
$489.00
Ships in 2-3 weeks
0.21 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
25 mm, F1 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 25 mm; sensor 384×288 17μm; aperture F1; mount M33×0.75; distortion -0.92%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0033 |
|---|---|
| Angle of view (deg) | 18.72°(D)×14.96°(H)×11.2°(V) |
| Sealing | IP 67 |
| Front lens coating | AR |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture | F1 |
| Distortion | -0.92% |
| Relative illumination | 0.9 |
| Focus method | Manual focus |
| Focus range | 1m~∞ |
| Mechanical back focal length | 8.5 mm |
| Image circle (derived) | dia. 8.2 mm, from the 384 x 288 detector at 17 micron pitch |
Sensor and imaging
| Sensor | 384×288 17μm |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M33×0.75 |
|---|---|

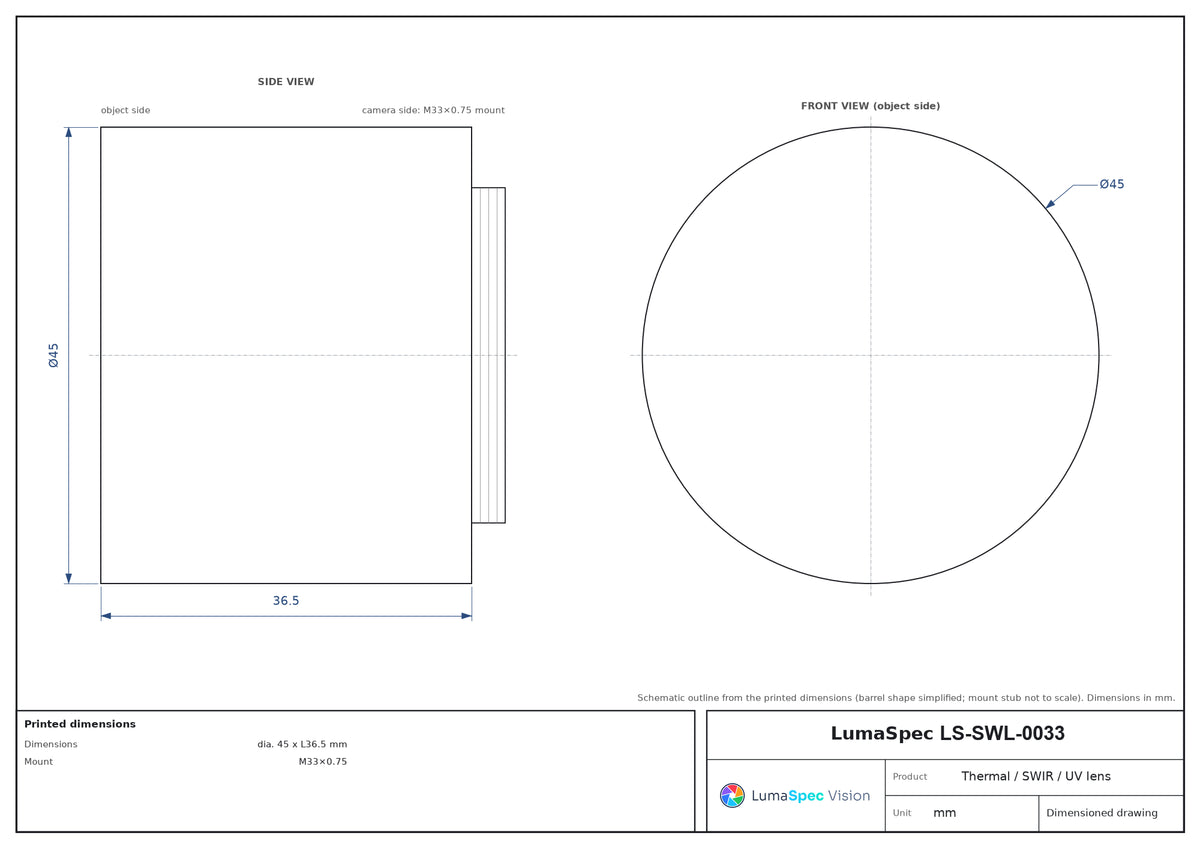

| Dimensions | dia. 45 x L36.5 mm |
| Weight | <80g |
| Shipping weight (estimated) | 0.21 kg |
Photo shows a representative model of this series; see the specifications for this model.
