19 mm, F1 LWIR Thermal Lens, BFL 7.5 mm, dia. 31.6 x L24.3 mm (LS-SWL-0190)
Model LS-SWL-0190
- Focal length19 mm
- MountM25x0.75
- Sensor1/1.7"
- ApertureF1
$409.00
Ships in 2-3 weeks
0.15 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
19 mm, F1 LWIR Thermal Lens. Long-wavelength infrared (LWIR) thermal lenses designed for commercial and military applications. At a glance: focal length 19 mm; sensor 640x512 12um; aperture F1; mount M25x0.75; distortion 0.7%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0190 |
|---|---|
| Angle of view (deg) | 22.78(H)x18.34(V) |
| Sealing | Front IP 67 |
| Front lens coating | HD |
Optics
| Focal length | 19 mm |
|---|---|
| Aperture | F1 |
| Distortion | 0.7% |
| Relative illumination | 0.91 |
| Focus range | 0.5m~∞ |
| Mechanical back focal length | 7.5 mm |
| Focus method | Adjustable focus |
| Image circle (derived) | dia. 9.8 mm, from the 640 x 512 detector at 12 micron pitch |
Sensor and imaging
| Sensor | 640x512 12um |
|---|
Environment and compliance
| Operating temperature | -40℃ to +80℃ |
|---|
Mechanical
| Mount | M25x0.75 |
|---|---|

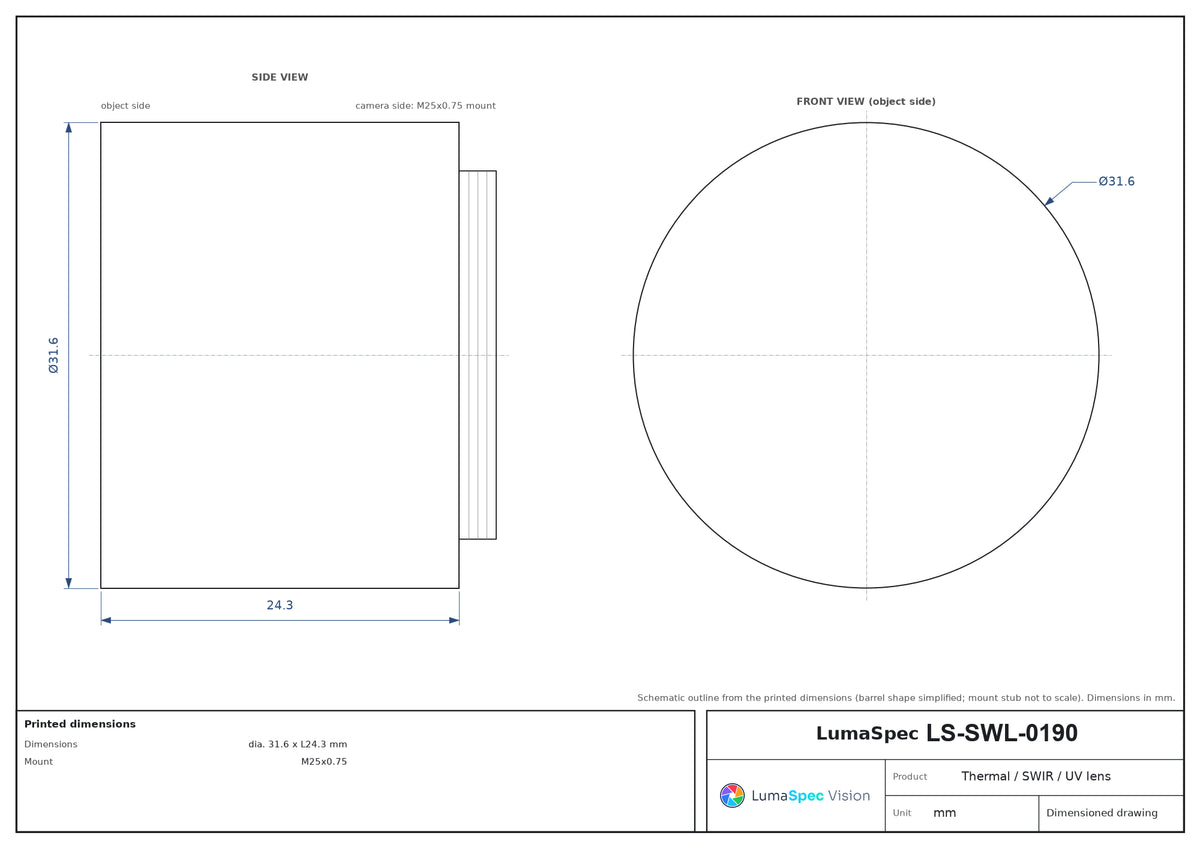

| Dimensions | dia. 31.6 x L24.3 mm |
| Weight | <35g |
| Shipping weight (estimated) | 0.15 kg |
Photo shows a representative model of this series; see the specifications for this model.
