360° inspection lenses
2/3", C-mount 360° Inspection Lens, 450~650 nm (LS-SRV82)
Model LS-SRV82
- MountC-mount
- Sensor2/3"
- ResolutionMegapixel
- Sensor format2/3"
$619.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.94 kg shipping weight
Volume pricing, Net 30 or a formal quote?
2/3", C-mount 360° Inspection Lens. 360-degree inner wall (barrel surface) inspection lens for 2/3" megapixel cameras. Images the inside wall of tubes, containers and bottle caps; inspects small objects across a wide field. At a glance: format 2/3"; resolution Megapixel; mount C; size dia. 26 x 54.8 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SRV82 |
|---|---|
| Format | 2/3" |
Optics
| Image circle | dia. 6.6 |
|---|---|
| Inspection range (inner diameter / height / working distance, mm) | 5/4/5; 10/6/7; 20/20/13; 30/30/17; 40/40/24; 50/50/27; 60/60/33; 80/80/44; 100/100/55; 120/120/65 |
Sensor and imaging
| Resolution | Megapixel |
|---|
Light
| Wavelength | 450~650 nm |
|---|
Mechanical

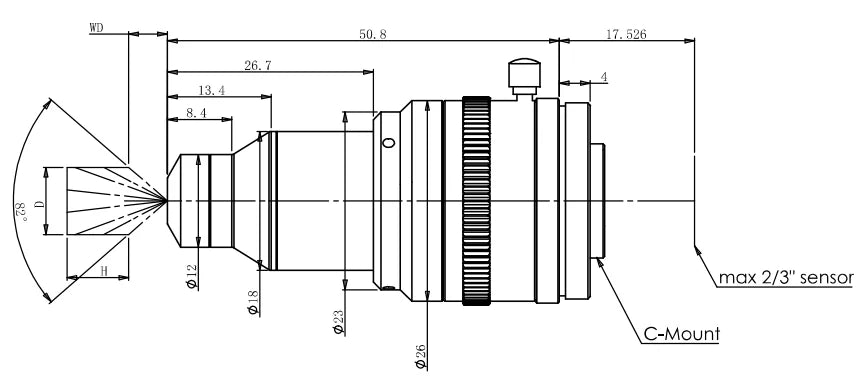

| Size | dia. 26 x 54.8 mm |
|---|---|
| Mount | C |
| Shipping weight (estimated) | 0.94 kg |
