360° inspection lenses

1/3", 5 MP, C-mount 360° Inspection Lens, WD 9-46.52 mm, 5MP (LS-SOD3605)

Model LS-SOD3605

  • MountC-mount
  • Sensor1/3"
  • Working distance9-46.52 mm
  • ApertureF6.0-16
  • Resolution5MP
  • Field of view7.5 x 6.4 (min), 30 x 25.6 (max) mm
$619.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.94 kg shipping weight

Volume pricing, Net 30 or a formal quote?

1/3", 5 MP, C-mount 360° Inspection Lens. Compact 5 megapixel lenses that image the outside wall of a part through 360 degrees at various working distances, for inspecting bottle caps, containers, screw threads, plastic injection, die-cast and machined parts. At a glance: working distance 9-46.52 mm; format 1/3"; resolution 5MP; aperture F6.0-16; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SOD3605
Format1/3"
Viewing angle18~36 deg
Inspection tableDiameter / height / WD / F# (mm): 4.5 / 3.1 / 48 / 16; 7.5 / 6.4 / 46.5 / 16; 10 / 8.5 / 43 / 12; 15 / 12.8 / 34.7 / 10; 20 / 17 / 27 / 8; 25 / 21.3 / 19 / 6; 30 / 25.6 / 9.7 / 6

Optics

Image circledia. 3.6 mm
ApertureF6.0-16
Working distance9-46.52 mm
Field of view (object diameter x height)7.5 x 6.4 (min), 30 x 25.6 (max) mm
Typical field of view (diameter x height)15 x 12.8 mm
Object diameter / height / WD / F-number (mm)4.5 / 3.1 / 48 / F16; 7.5 / 6.4 / 46.5 / F16; 10 / 8.5 / 43 / F12; 15 / 12.8 / 34.7 / F10; 20 / 17 / 27 / F8; 25 / 21.3 / 19 / F6; 30 / 25.6 / 9.7 / F6
Field of view (diameter x height)7.5 x 6.4 mm min, 30 x 25.6 mm max

Sensor and imaging

Resolution5MP

Light

Wavelength range450-650 nm
Wavelength450-650 nm

Mechanical

MountC
FOV (diameter x height, mm)7.5 x 6.4 min / 30 x 25.6 max
Sizedia. 136.3 x 116.5 mm
Shipping weight (estimated)0.94 kg

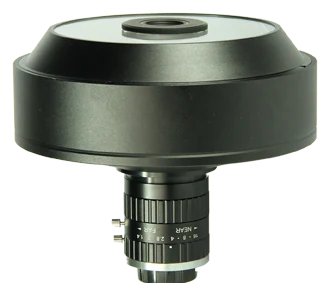

Photo shows lenses of this series; see the specifications and drawing for this model.
