360° inspection lenses
1/3", C-mount 360° Inspection Lens, F10 (LS-SRV3006)
Model LS-SRV3006
- MountC-mount
- Sensor1/3"
- ApertureF10
- Sensor format1/3"
$619.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.94 kg shipping weight
Volume pricing, Net 30 or a formal quote?
1/3", C-mount 360° Inspection Lens. 360-degree inner-barrel inspection lens for sensors larger than 1/3" with built-in coaxial lighting for a clear, bright view; compact, high-resolution, inspects holes of 6-30 mm inner diameter. At a glance: format >1/3"; aperture F10; mount C; size dia. 32 x 126.2 mm (probe dia. 5 mm).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SRV3006 |
|---|---|
| Format | >1/3" |
| Lighting | built-in coaxial |
| Inspection table | Inner diameter / height (mm): 6 / 5-45; 7 / 5.5-45.5; 8 / 6.2-46.2; 10 / 7.5-47.5; 15 / 10.8-50.8; 20 / 14-54; 25 / 17.3-57.3; 30 / 20.5-60.5 |
Optics
| Aperture | F10 |
|---|---|
| Focus | manual |
| Iris | manual |
| Coaxial light | Built-in (spot light hole) |
Sensor and imaging
| Sensor | >1/3" |
|---|
Light
| Wavelength | visible |
|---|
Mechanical
| Inner diameter | dia. 6-30 mm |
|---|---|
| Mount | C |

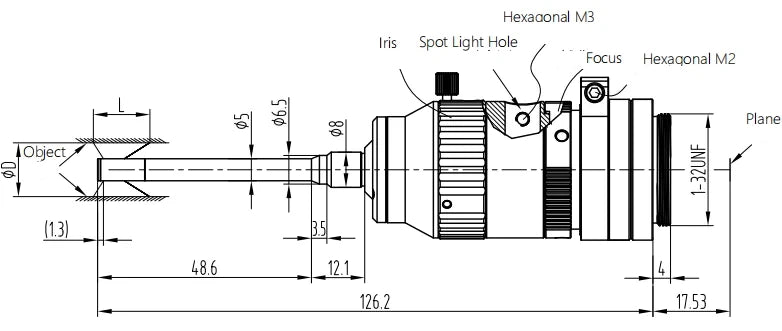

| Size | dia. 32 x 126.2 mm (probe dia. 5 mm) |
| Inspection range (ID / height, mm) | 6 / 5 to 45; 7 / 5.5 to 45.5; 8 / 6.2 to 46.2; 10 / 7.5 to 47.5; 15 / 10.8 to 50.8; 20 / 14 to 54; 25 / 17.3 to 57.3; 30 / 20.5 to 60.5 |
| Shipping weight (estimated) | 0.94 kg |
