360° inspection lenses

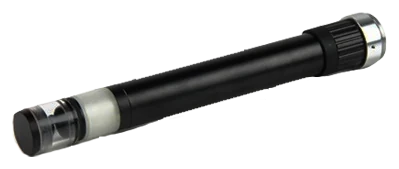

1/3", C-mount 360° Inspection Lens, F14 fixed (LS-SRV3651)
Model LS-SRV3651
- MountC-mount
- Sensor1/3"
- ApertureF14 fixed
- ResolutionMegapixel
- Field of view100 x 63.6 mm (max)
$619.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.28 kg shipping weight
Volume pricing, Net 30 or a formal quote?
1/3", C-mount 360° Inspection Lens. Inner-wall 360-degree inspection lens with built-in LED lighting for 1/3" cameras, imaging the inside of tubes, barrels and caps of 25 to 100 mm diameter. At a glance: format 1/3" (dia. 3.6 mm image circle); resolution Megapixel; aperture F14 fixed; mount C; angle of view 62 deg.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SRV3651 |
|---|---|
| Format | 1/3" (dia. 3.6 mm image circle) |
| FOV (1/3", L x H) | 100 x 63.6 mm |
| Angle of view | 62 deg |
| Min. / max. FOV | dia. 25 x 14 / dia. 100 x 63.6 mm |
| Lighting | built-in LED ring light (ring light wire) |
| Inspection range | hole dia. 25-100 mm, height 12.4-58.2 mm (table in 1 mm steps) |
Optics
| Aperture | F14 fixed |
|---|---|
| Field of view (L x H) | 100 x 63.6 mm (max) |
| Min field of view | dia. 25 x 14 mm |
| Max field of view | dia. 100 x 63.6 mm |
| Field of view (1/3", L x H) | 100 x 63.6 mm (max); min. dia. 25 x 14 mm |
Sensor and imaging
| Resolution | Megapixel |
|---|
Light
| Wavelength | 420~1150 nm |
|---|---|
| Illumination | built-in LED ring light (ring light wire) |
Mechanical

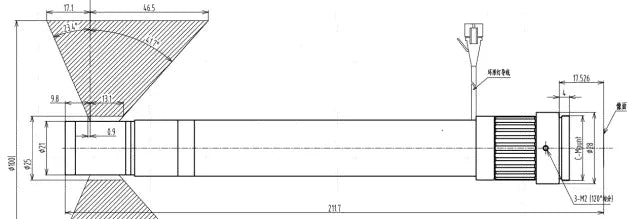

| Size | dia. 21 x 198.6 mm |
|---|---|
| Mount | C |
| Weight | 125 g |
| Inspection range (hole diameter -> height, mm) | 25->12.4, 30->15.5, 35->18.5, 40->21.5, 45->24.6, 50->27.7, 55->30.7, 60->33.8, 65->36.8, 70->39.9, 75->42.9, 80->46, 85->49.0, 90->52.1, 95->55.2, 100->58.2 (every 1 mm from 25 to 100) |
| Inspection range (hole dia. x height, mm) | 25 x 12.4, 26 x 13.0, 27 x 13.6, 28 x 14.2, 29 x 14.8, 30 x 15.5, 31 x 16.1, 32 x 16.7, 33 x 17.3, 34 x 17.9, 35 x 18.5, 36 x 19.1, 37 x 19.7, 38 x 20.3, 39 x 20.9, 40 x 21.5, 41 x 22.1, 42 x 22.7, 43 x 23.3, 44 x 24, 45 x 24.6, 46 x 25.2, 47 x 25.8, 48 x 26.4, 49 x 27.1, 50 x 27.7, 51 x 28.3, 52 x 28.9, 53 x 29.5, 54 x 30.1, 55 x 30.7, 56 x 31.3, 57 x 31.9, 58 x 32.5, 59 x 33.1, 60 x 33.8, 61 x 34.4, 62 x 35.0, 63 x 35.6, 64 x 36.2, 65 x 36.8, 66 x 37.5, 67 x 38.1, 68 x 38.7, 69 x 39.3, 70 x 39.9, 71 x 40.5, 72 x 41.1, 73 x 41.7, 74 x 42.3, 75 x 42.9, 76 x 43.6, 77 x 44.2, 78 x 44.8, 79 x 45.4, 80 x 46, 81 x 46.6, 82 x 47.2, 83 x 47.8, 84 x 48.4, 85 x 49.0, 86 x 49.6, 87 x 50.2, 88 x 50.9, 89 x 51.5, 90 x 52.1, 91 x 52.7, 92 x 53.4, 93 x 54.0, 94 x 54.6, 95 x 55.2, 96 x 55.8, 97 x 56.4, 98 x 57.0, 99 x 57.6, 100 x 58.2 |
| Shipping weight (estimated) | 0.28 kg |
