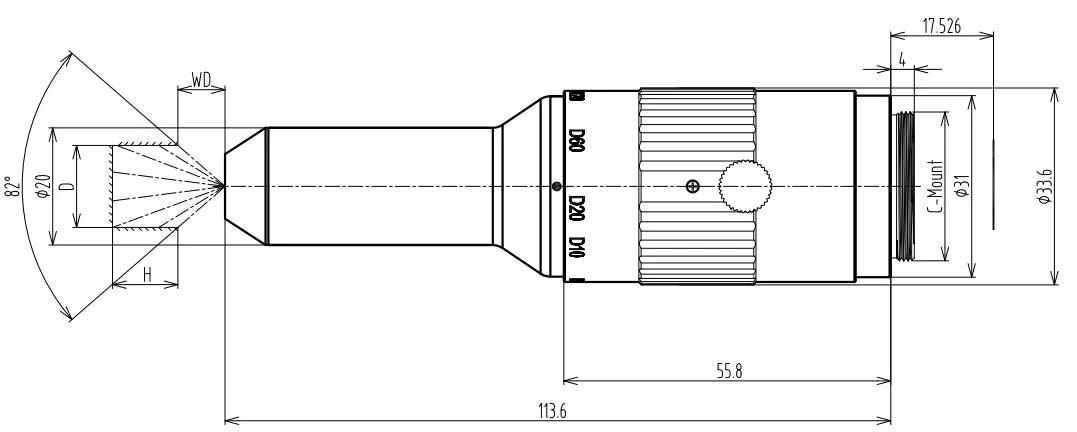

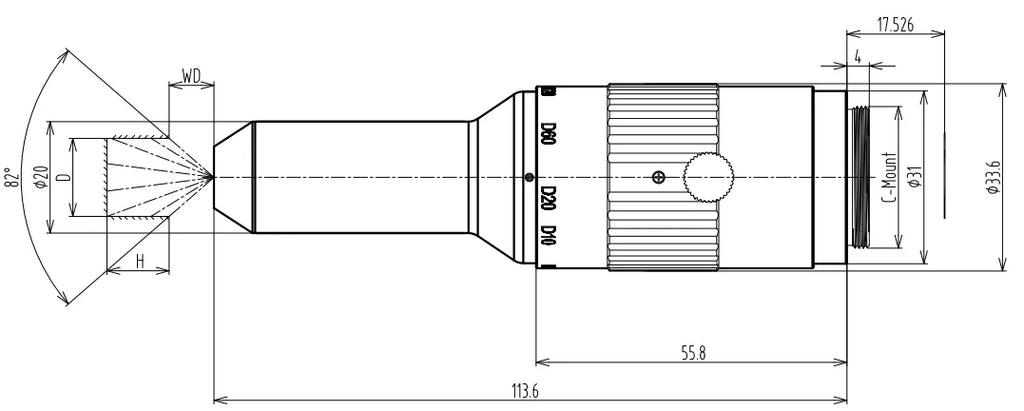

  • LS-SRV3652 dimensions (mm)

360° inspection lenses

2/3", 3 MP, C-mount 360° Inspection Lens (LS-SRV3652)

Model LS-SRV3652

  • MountC-mount
  • Sensor2/3"
  • Working distance2.7 to 70 mm
  • Resolution3.0 Megapixel
$619.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.94 kg shipping weight

Volume pricing, Net 30 or a formal quote?

2/3", 3 MP, C-mount 360° Inspection Lens. Lens for 360-degree inspection of the inner wall of tubes and barrels, with high resolution in a compact size. It inspects small objects over a wide field of view. At a glance: working distance 2.7 to 70 mm; format 2/3"; resolution 3.0 Megapixel; mount C; angle of view Min. 5 x 5 / Max. 120 x 123.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SRV3652
Format2/3"
Viewing angle82 deg
Inspection tableDiameter / height / WD (mm): 5 / 5 / 2.7; 10 / 10 / 6; 20 / 21 / 11; 30 / 31 / 17.2; 40 / 41 / 23; 50 / 51.2 / 29; 60 / 61.4 / 35; 80 / 82 / 46.5; 100 / 102 / 58.3; 120 / 123 / 70
Angle of view (2/3", D x H)Min. 5 x 5 / Max. 120 x 123
TypeInner View
AdvantagesCompact & clear
ApplicationInner holes
Notes2/3", inner hole (inner wall) inspection
ViewInner view

Optics

Image circledia. 6.6 mm
Field of view (2/3", diameter x height)Standard 20 x 23 mm (min. 5 x 5 / max. 120 x 123)
Working distance2.7 to 70 mm
Inspection diameter / height / working distance (mm)5 / 5 / 2.7; 10 / 10 / 6; 20 / 21 / 11; 30 / 31 / 17.2; 40 / 41 / 23; 50 / 51.2 / 29; 60 / 61.4 / 35; 80 / 82 / 46.5; 100 / 102 / 58.3; 120 / 123 / 70
Field of view (dia. x height, 2/3")standard 20 x 23 mm (min. 5 x 5 / max. 120 x 123 mm)

Sensor and imaging

Resolution3.0 Megapixel

Light

Wavelength450 to 650 nm

Mechanical

Sizedia. 33.6 x 113.6 mm
MountC
FOV (diameter x height, 2/3")Standard 20 x 23 mm (min. 5 x 5 / max. 120 x 123)
Inspection range (diameter / height / WD, mm)5/5/2.7; 10/10/6; 20/21/11; 30/31/17.2; 40/41/23; 50/51.2/29; 60/61.4/35; 80/82/46.5; 100/102/58.3; 120/123/70
Object diameter5-120 mm
Object height5-123 mm
Shipping weight (estimated)0.94 kg
