360° inspection lenses
2/3", C-mount 360° Inspection Lens, WD 14-48.2 mm, F8.0~16 (LS-SOD36023)
Model LS-SOD36023
- MountC-mount
- Sensor2/3"
- Working distance14-48.2 mm
- ApertureF8.0~16
$619.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.94 kg shipping weight
Volume pricing, Net 30 or a formal quote?
2/3", C-mount 360° Inspection Lens. Catadioptric (pericentric) lenses that image the full 360-degree outer wall of small round parts of 7.5 to 30 mm diameter in one view, for 1/3", 1/1.8" and 2/3" 5 megapixel cameras. At a glance: working distance 14-48.2 mm; format 2/3"; aperture F8.0~16; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SOD36023 |
|---|---|
| Format | 2/3" |
Optics
| Image circle | dia. 6.6 |
|---|---|
| Working distance | 14-48.2 mm |
| Aperture | F8.0~16 |
Mechanical
| Mount | C |
|---|---|
| Test range (diameter / height / WD / F#) | 7.5/4/48.2/16; 10/6.3/44.4/16; 15/10.6/36.8/12; 20/14.6/29.2/12; 25/19.2/21.6/10; 30/23.4/14/8 |
| Shipping weight (estimated) | 0.94 kg |

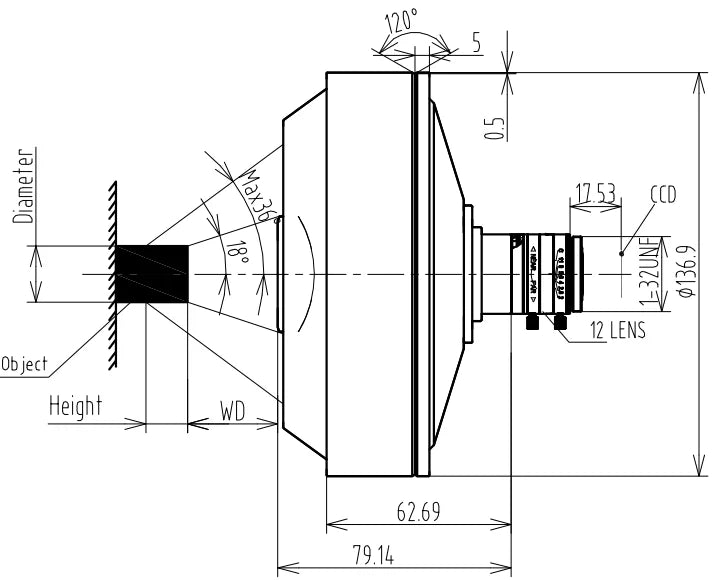

Photo shows lenses of this series; see the specifications and drawing for this model.
