360° inspection lenses

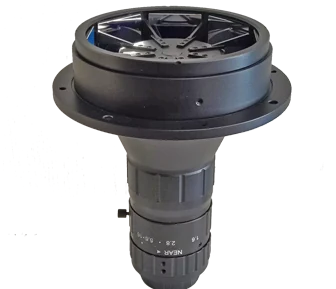

2/3", C-mount 360° Inspection Lens, F1.6~16, 420-680 nm (LS-SOD2308)
Model LS-SOD2308
- MountC-mount
- Sensor2/3"
- ApertureF1.6~16
- Sensor format2/3"
$899.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.94 kg shipping weight
Volume pricing, Net 30 or a formal quote?
2/3", C-mount 360° Inspection Lens. Poly View multi-angle reflection lens with 8 mirrors for 360-degree outer-wall imaging of small cylindrical objects 0.8-30 mm in diameter (object height 4.6-17 mm) on sensors of 2/3" and larger. Marked EOL soon, to be replaced by a new product. At a glance: format 2/3"; aperture F1.6~16; mount C; size flange dia. 96.1 mm, length 109 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SOD2308 |
|---|---|
| Format | 2/3" |
| Mirrors | 8 |
| Inspection table | Diameter / height at WD 2 mm / height at WD 5 mm (mm): 0.8 / 17 / 14; 6 / 16 / 13; 12 / 13.9 / 10.9; 20 / 11 / 8; 30 / 7.6 / 4.6 |
| FOV | Min. 0.8 x 17mm; Typical 6 x 16mm; Max 30 x 7.6mm |
| View | Outer view |
Optics
| Image circle | dia. 6.6 mm |
|---|---|
| Field of view (diameter x height, WD 2 mm) | min. 0.8 x 17 mm; typical 6 x 16 mm; max 30 x 7.6 mm |
| Aperture | F1.6~16 |
Sensor and imaging
| Sensor | 2/3" |
|---|
Light
| Wavelength | 420-680 nm |
|---|
Mechanical
| Mount | C |
|---|---|
| Size | flange dia. 96.1 mm, length 109 mm |
| FOV (diameter x height, WD=2 mm) | Min. 0.8 x 17 mm; Typical 6 x 16 mm; Max 30 x 7.6 mm |
| Object height at WD 2 mm / 5 mm (by object diameter) | 0.8 mm: 17 / 14; 6 mm: 16 / 13; 12 mm: 13.9 / 10.9; 20 mm: 11 / 8; 30 mm: 7.6 / 4.6 (mm) |
| Object height by diameter at WD 2 mm / WD 5 mm (mm) | 0.8: 17 / 14; 6: 16 / 13; 12: 13.9 / 10.9; 20: 11 / 8; 30: 7.6 / 4.6 |
| Shipping weight (estimated) | 0.94 kg |
