360° inspection lenses
2/3", C-mount 360° Inspection Lens, F1.6~16 (LS-SOD0570)
Model LS-SOD0570
- MountC-mount
- Sensor2/3"
- ApertureF1.6~16
- Sensor format2/3"
$619.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.94 kg shipping weight
Volume pricing, Net 30 or a formal quote?
2/3", C-mount 360° Inspection Lens. Poly-view multi-angle 360-degree lens for 2/3" megapixel cameras that images both outer walls (dia. 5-70 mm) and inner walls (dia. 20-70 mm), with built-in lighting and especially good side-view imaging. At a glance: sensor 2/3"; aperture F1.6~16; mount C; size dia. 176 (flange) x 148.7 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SOD0570 |
|---|---|
| Built-in lighting | Yes |
| Format | 2/3" |
| Lighting | built-in |
Optics
| Image circle | 6.6 mm |
|---|---|
| Aperture | F1.6~16 |
Sensor and imaging
| Sensor | 2/3" |
|---|
Mechanical
| Mount | C |
|---|---|
| Outer view (diameter / WD / height, mm) | 5/12.6/26.6; 10/12.6/25.1; 15/12.6/23.6; 20/12.6/22.1; 25/12.6/20.6; 30/12.6/19.1; 35/12.6/17.6; 40/12.6/16.1; 50/12.6/14.6; 55/12.6/13.1; 50/12.6/11.6; 60/12.6/10.1; 65/12.6/8.8; 70/12.6/7.1 |
| Inner view (diameter / WD / height, mm) | 20/22/11.9; 25/20.5/14.9; 30/19/17.9; 35/17.5/20.9; 40/16/23.9; 45/14.5/26.9; 50/13/30; 55/13/31; 60/13/31.4; 65/13/31.6; 70/13/31.9 |

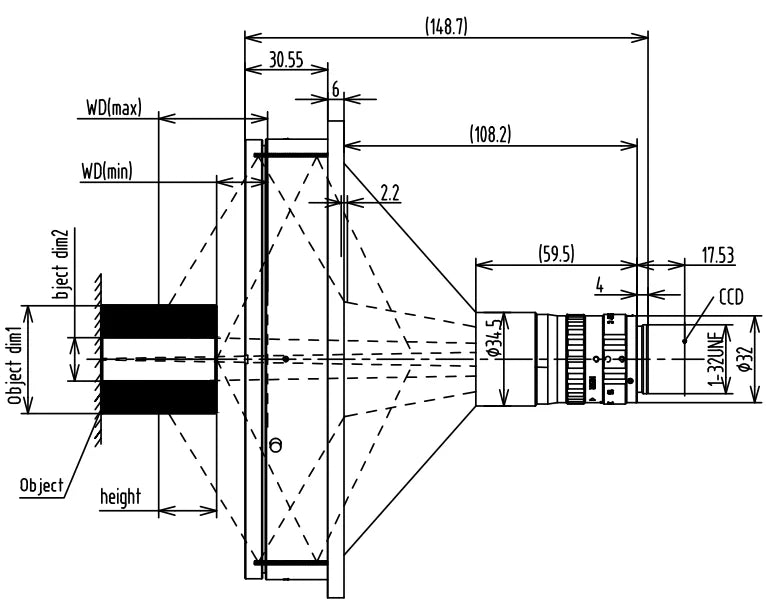

| Size | dia. 176 (flange) x 148.7 mm |
| Outer view object diameter | 5-70 mm (WD 12.6 mm, height 26.6-7.1 mm) |
| Inner view object diameter | 20-70 mm (WD 22-13 mm, height 11.9-31.9 mm) |
| Shipping weight (estimated) | 0.94 kg |
