360° Inspection Lens LS-S1OD80
Model LS-S1OD80
- Inspection diameterwithin 80 mm
- Inspection Height250 mm

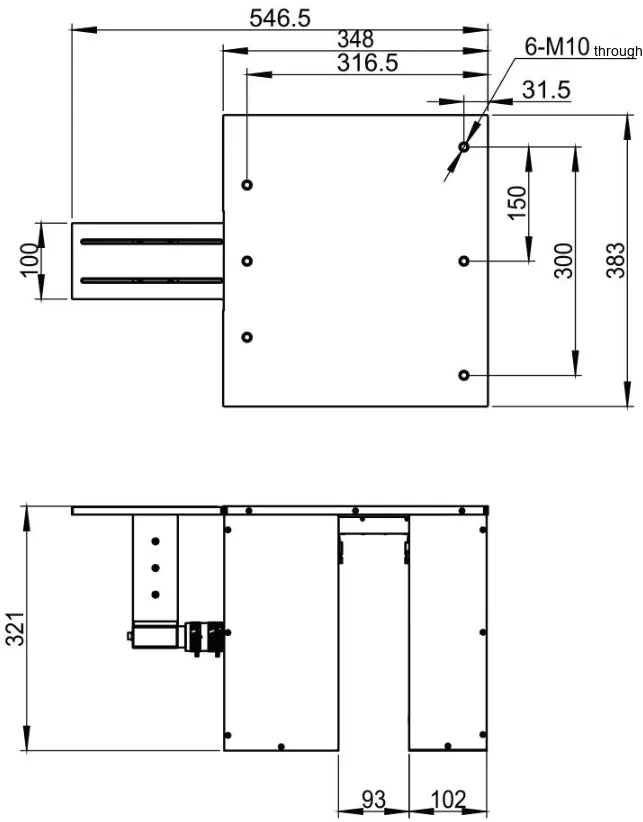

- Drawing numberHOD330288-CS
- View window260 x 60 mm
Quoted price: add to quote for lead time and volume pricing.
Built to your object's diameter and height: we confirm the configuration and lead time with your quote.
Ships in 2-3 weeks
13.83 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
360° Inspection Lens LS-S1OD80. 360-degree outer view inspection modules for objects on a production flow line: side-view outer wall, multi-angle imaging. LS-S1OD80 handles objects up to 80 mm diameter and 250 mm high; LS-SODH240165CS handles objects up to 40 mm diameter. Camera and lens are not included. At a glance: inspection height 250 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-S1OD80 |
|---|---|
| Drawing number | HOD330288-CS |
| Description | 360-degree lighting module (custom light source module), camera + lens not included |
| View window | 260 x 60 mm |
| Object entrance | 93 mm |
Mechanical
| Inspection diameter | within 80 mm |
|---|---|
| Inspection Height | 250 mm |
| Size | 330 x 288 x 383 mm (top plate 330 x 383 mm) |
| Weight | 9.809 kg |
| Shipping weight (estimated) | 13.83 kg |

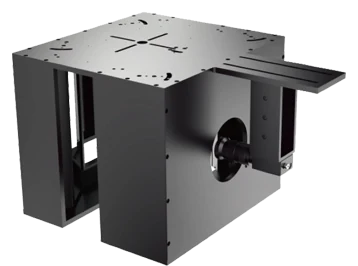

Photo shows a representative model of this series; see the specifications for this model.
