LE202 programmable series, Constant-voltage output / 24 VDC, 1 channel, With GigE port
LS-CTL-0564
- Output 24 VDC
- Input 100 ~ 240 VAC, 50/60 Hz
$199.00
Ships in 2-3 weeks
Rendered illustration: the actual product may differ in appearance.
Line scan lights

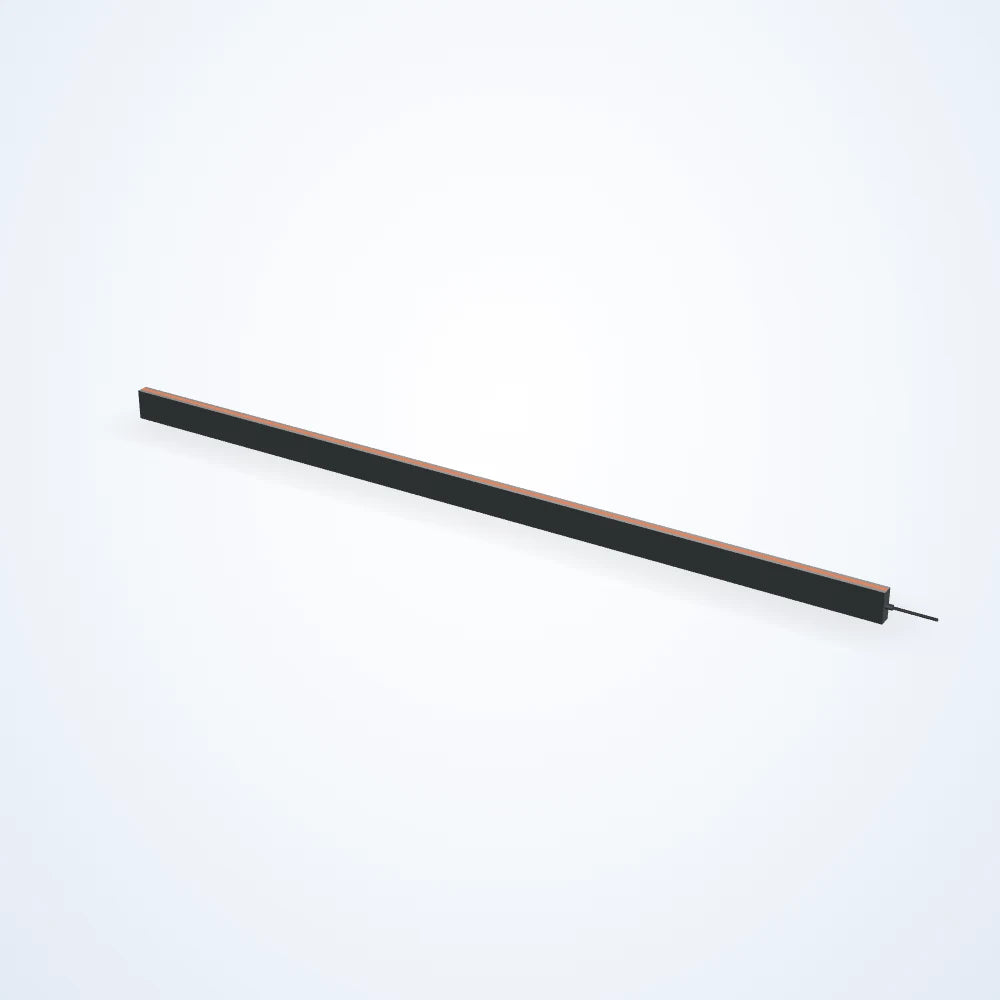

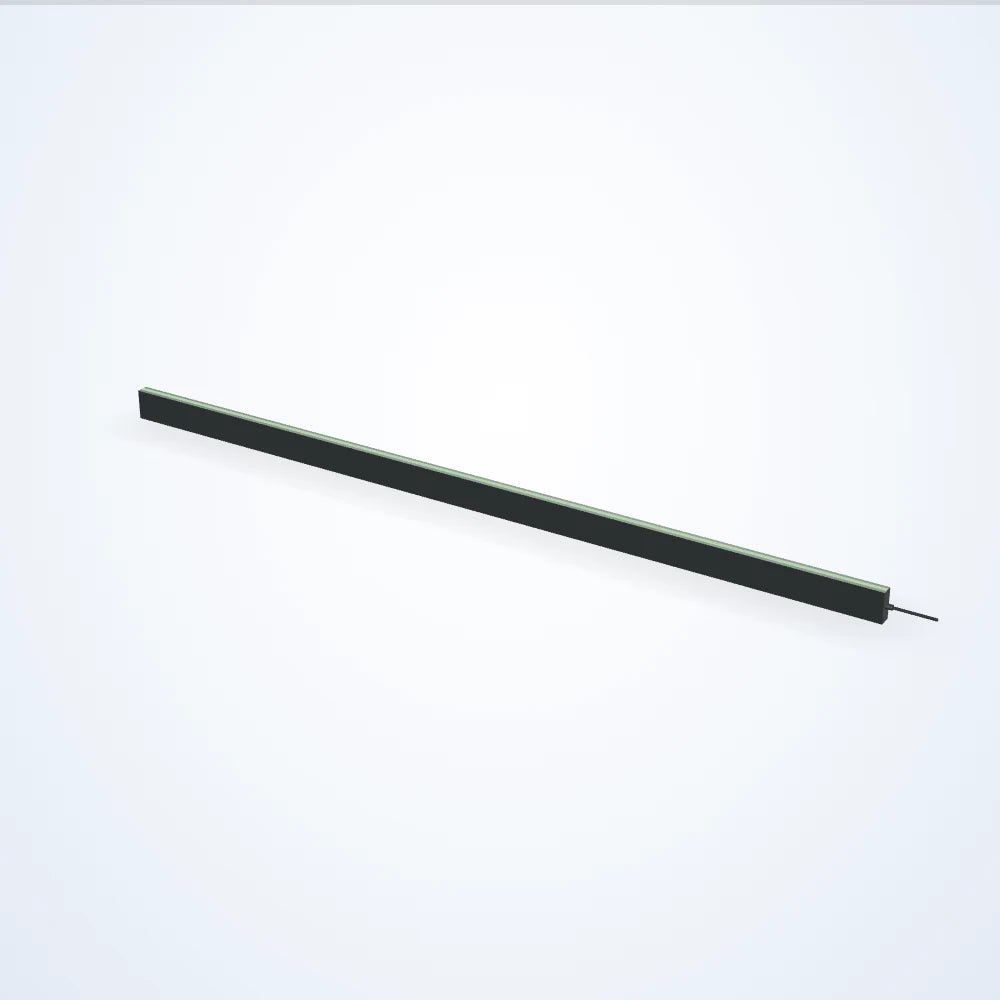

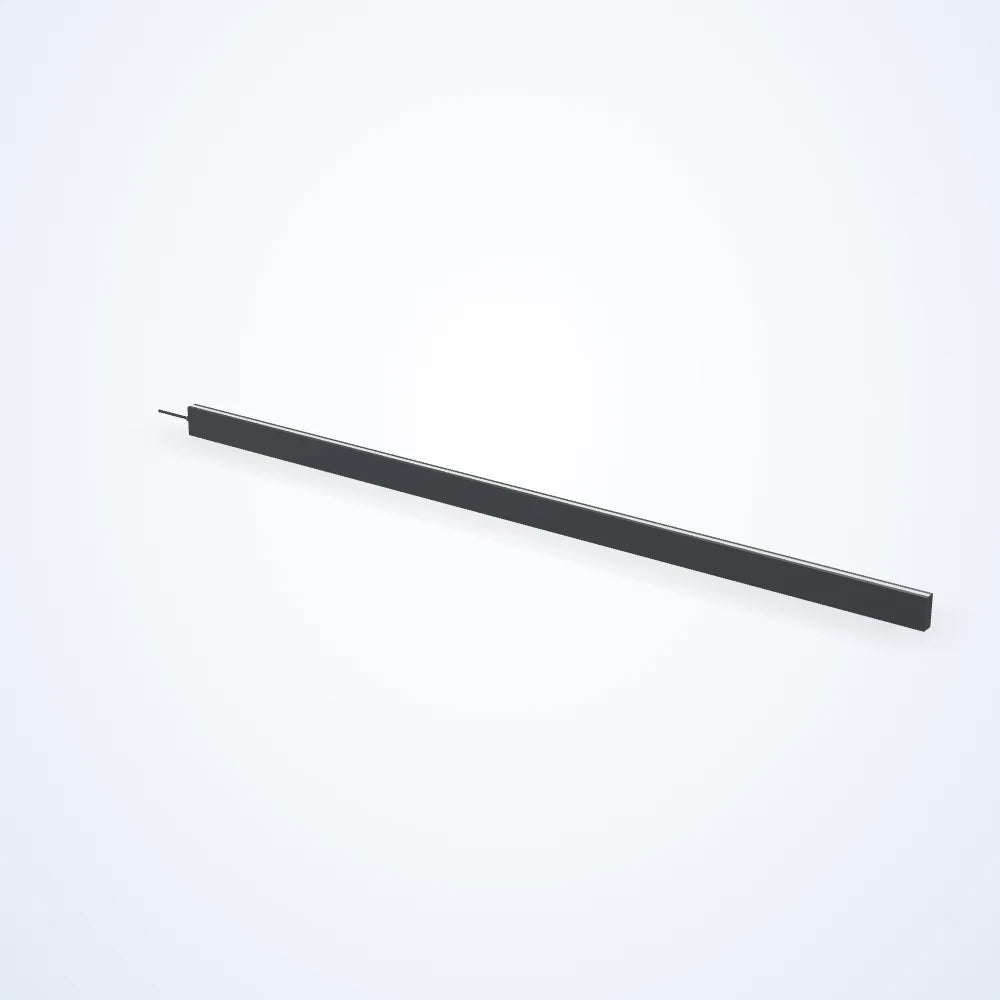

Line scan light, 1665 mm lit length (LS-LSC-0017-L39)
Model LS-LSC-0017-L39
- ColourWhite, Green, Red, Blue
- Voltage24 VDC
- Lit length1665 mm
- Lit width19.1 mm
from $3,959.00 USDList price
Sold by quote: request a quote and we confirm the price, lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 72 available
Dashed or marked values are not made with your other choices: picking one switches them to the nearest available configuration.
Configuration LS-LSC-0017-0981 $4,819.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
High-intensity line light for line scan cameras on moving webs and conveyors. Lit area 1665 x 19.1 mm; 24 VDC supply; connection: flying leads. Choose colour, lens / beam angle, driver included, driver location, intensity control below (72 configurations) and request a quote.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Certifications (as printed)CEIEC 62471RoHS
Specifications
General
| Model | LS-LSC-0017-L39 |
|---|---|
| Connection at light | Hardwired |
| Maximum duty cycle (%) | 100 |
| Daisy chain | No |
| Direct connect | No |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | 0 to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE, IEC 62471, RoHS
As declared by the manufacturer |
Electrical
| Voltage | 24 VDC |
|---|---|
| Maximum constant on current (mA) | 384 / 853 (by configuration) |
| Maximum current (overcurrent strobe) (mA) | 8000 (by configuration) |
| Maximum input power constant on (W) | 9.2 / 20.5 (by configuration) |
| Maximum input power overcurrent strobe (W) | 125 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 60 (by configuration) |
| Minimum overcurrent strobe duration (µs) | 30 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger current (mA) | 5 (by configuration) |
| PNP trigger voltage (V) | 2.5-30 VDC (by configuration) |
Mechanical
| Lit length (mm) | 1665 |
|---|---|
| Lit width (mm) | 19.1 |
| Length (mm) | 1625 |
| Width (mm) | 23.8 |
| Height (mm) | 60.6 / 66.9 / 73.3 (by configuration) |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
Engineering data
Drive and fit the LS-LSC-0017-L39
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Supply24 V DC
Emitting length1665 mm
Ingress protectionIP50
Operating temperature0 to 60 °C
Cable length2000 mm
Mounting and installation
| Mounting | T-slot / nut channel |
|---|---|
| Cable | 2 mFlying leads |
| Protection | IP50 |
| Housing | Aluminum |

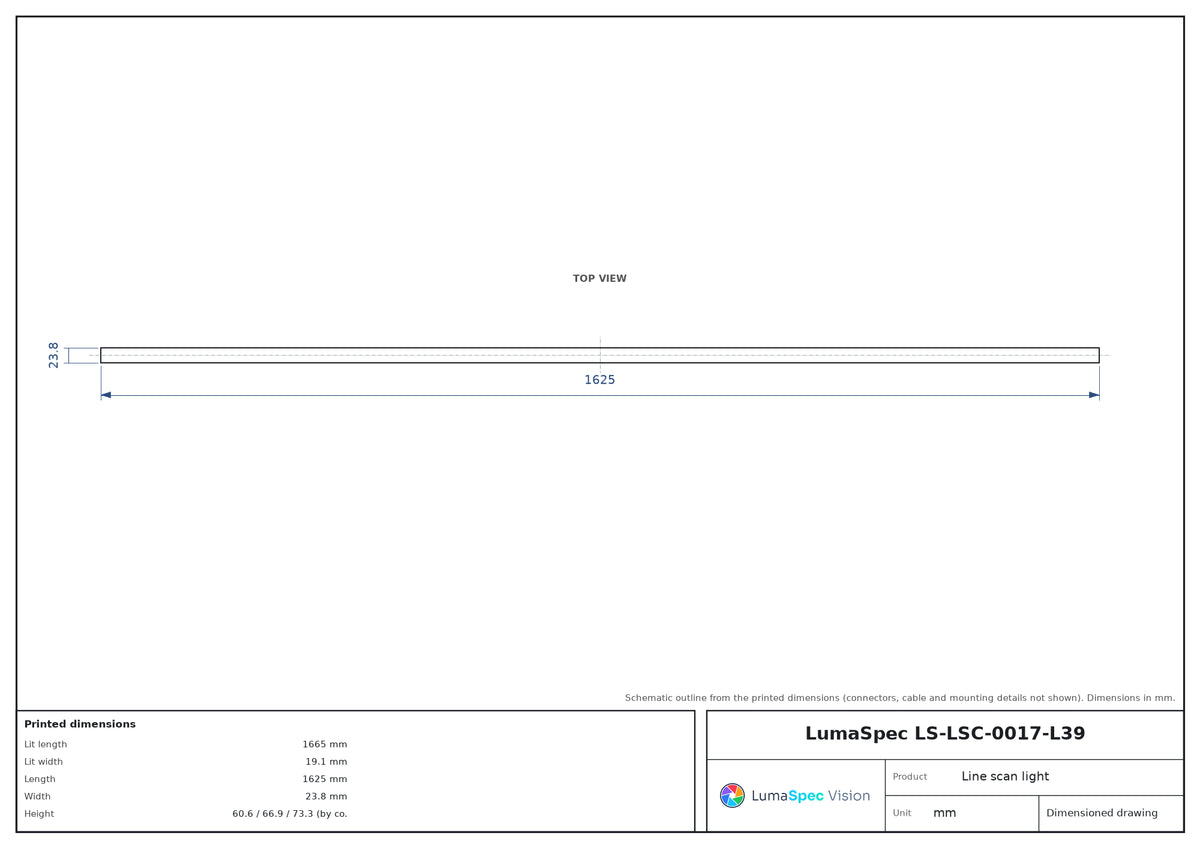

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.
Controllers for this light
About 300 W per channel at 24 V (from its rated output) for this 125 W light
Digital controller, 2 ch, 100 x 158 x 95 mm, 5 A per channel
LS-CTL-0358
- Channels 2
- Output 16-24 V
$229.00
Ships in 2-3 weeks
About 120 W per channel at 24 V (from its rated output) for this 125 W light
200 W per channel at 24 V for this 125 W light
Analog constant-current light controller, 300 W, 1 channel, 20M-4K connector, Line light controller
LS-CTL-0498
- Output 24 VDC
- Input 100 ~ 240 VAC, 50/60 Hz
$209.00
Ships in 2-3 weeks
About 300 W per channel at 24 V (from its rated output) for this 125 W light
2.5D programmable light controller, 600 W power, Single channel
LS-CTL-0565
- Output 24 VDC
- Input 100 ~ 240 VAC, 50/60 Hz
$229.00
Ships in 2-3 weeks
About 405 W per channel at 24 V (from its rated output) for this 125 W light
Analog constant-voltage light controller, 400 W, 1 channel, 19M-2E connector
LS-CTL-0118
- Output 24 VDC
- Input 100 ~ 240 VAC, 50/60 Hz
$229.00
Ships in 2-3 weeks
About 400 W per channel at 24 V (from its rated output) for this 125 W light
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-LSC-0273, the same type of part
Textiles, film and web
A line-scan station for textile surface defects
The lighting reveals the feature; synchronized material travel turns the line into a useful image.Proposed camera2048 pixels · monoExplore the study
Set up with the LS-LSC-0303, the same type of part
Packaging, labels and print
Indentation marks on aluminium film
Make a surface change visible before deciding whether it exceeds the specification.Proposed light housing (spec)340 × 48 × 75 mmExplore the study
Set up with the LS-LSC-0264, the same type of part
Metal parts and machining
Scratch contrast on a machined cylinder
A curved surface needs a tested angular coverage plan.Proposed light housing (spec)440 × 50 × 117.13 mmExplore the study
Other models in the Line scan light, flying leads, IP50 (LS-LSC-S03) series
See all 49 models| Model | Size | Lit length | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-LSC-0017-L39This model | 1665 x 19.1 mm | 1665 mm | $3,959.00 Quote | Built to order: ships in about 4-5 weeks | |
| LS-LSC-0017-L25 | 1112 x 19.1 mm | 1112 mm | $2,809.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L26 | 1152 x 19.1 mm | 1152 mm | $2,889.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L27 | 1191 x 19.1 mm | 1191 mm | $2,969.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L28 | 1231 x 19.1 mm | 1231 mm | $3,049.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L29 | 1270 x 19.1 mm | 1270 mm | $3,139.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L30 | 1309 x 19.1 mm | 1309 mm | $3,219.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L31 | 1349 x 19.1 mm | 1349 mm | $3,299.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L32 | 1388 x 19.1 mm | 1388 mm | $3,379.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L33 | 1428 x 19.1 mm | 1428 mm | $3,459.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L34 | 1467 x 19.1 mm | 1467 mm | $3,549.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L35 | 1507 x 19.1 mm | 1507 mm | $3,629.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L36 | 1546 x 19.1 mm | 1546 mm | $3,709.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L37 | 1586 x 19.1 mm | 1586 mm | $3,789.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L38 | 1625 x 19.1 mm | 1625 mm | $3,879.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L40 | 1704 x 19.1 mm | 1704 mm | $4,039.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L41 | 1744 x 19.1 mm | 1744 mm | $4,129.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L42 | 1783 x 19.1 mm | 1783 mm | $4,209.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L43 | 1823 x 19.1 mm | 1823 mm | $4,289.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L44 | 1862 x 19.1 mm | 1862 mm | $4,369.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L45 | 1902 x 19.1 mm | 1902 mm | $4,449.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L46 | 1941 x 19.1 mm | 1941 mm | $4,539.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L47 | 1980 x 19.1 mm | 1980 mm | $4,619.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L48 | 2020 x 19.1 mm | 2020 mm | $4,699.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-LSC-0017-L49 | 2059 x 19.1 mm | 2059 mm | $4,779.00 Quote | Built to order: ships in about 4-5 weeks | View |
