Analog power supply controller, 1 ch, 0.7 A per channel
LS-CTL-0508
- Channels 1
- Output 0-24 V
$139.00
Ships in 2-3 weeks
Rendered illustration: the actual product may differ in appearance.
Line scan lights
Line scan light, 1546 mm lit length (LS-LSC-0017-L36)
Model LS-LSC-0017-L36
- ColourWhite, Green, Red, Blue
- Voltage24 VDC
- Lit length1546 mm
- Lit width19.1 mm
from $3,709.00 USDList price
Sold by quote: request a quote and we confirm the price, lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 72 available
Dashed or marked values are not made with your other choices: picking one switches them to the nearest available configuration.
Configuration LS-LSC-0017-0909 $4,519.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
High-intensity line light for line scan cameras on moving webs and conveyors. Lit area 1546 x 19.1 mm; 24 VDC supply; connection: flying leads. Choose colour, lens / beam angle, driver included, driver location, intensity control below (72 configurations) and request a quote.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Certifications (as printed)CEIEC 62471RoHS
Specifications
General
| Model | LS-LSC-0017-L36 |
|---|---|
| Connection at light | Hardwired |
| Maximum duty cycle (%) | 100 |
| Daisy chain | No |
| Direct connect | No |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | 0 to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE, IEC 62471, RoHS
As declared by the manufacturer |
Electrical
| Voltage | 24 VDC |
|---|---|
| Maximum constant on current (mA) | 357 / 793 (by configuration) |
| Maximum current (overcurrent strobe) (mA) | 8000 (by configuration) |
| Maximum input power constant on (W) | 8.6 / 19 (by configuration) |
| Maximum input power overcurrent strobe (W) | 125 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 60 (by configuration) |
| Minimum overcurrent strobe duration (µs) | 30 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger current (mA) | 5 (by configuration) |
| PNP trigger voltage (V) | 2.5-30 VDC (by configuration) |
Mechanical
| Lit length (mm) | 1546 |
|---|---|
| Lit width (mm) | 19.1 |
| Length (mm) | 1511 |
| Width (mm) | 23.8 |
| Height (mm) | 60.6 / 66.9 / 73.3 (by configuration) |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
Engineering data
Drive and fit the LS-LSC-0017-L36
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Supply24 V DC
Emitting length1546 mm
Ingress protectionIP50
Operating temperature0 to 60 °C
Cable length2000 mm
Mounting and installation
| Mounting | T-slot / nut channel |
|---|---|
| Cable | 2 mFlying leads |
| Protection | IP50 |
| Housing | Aluminum |

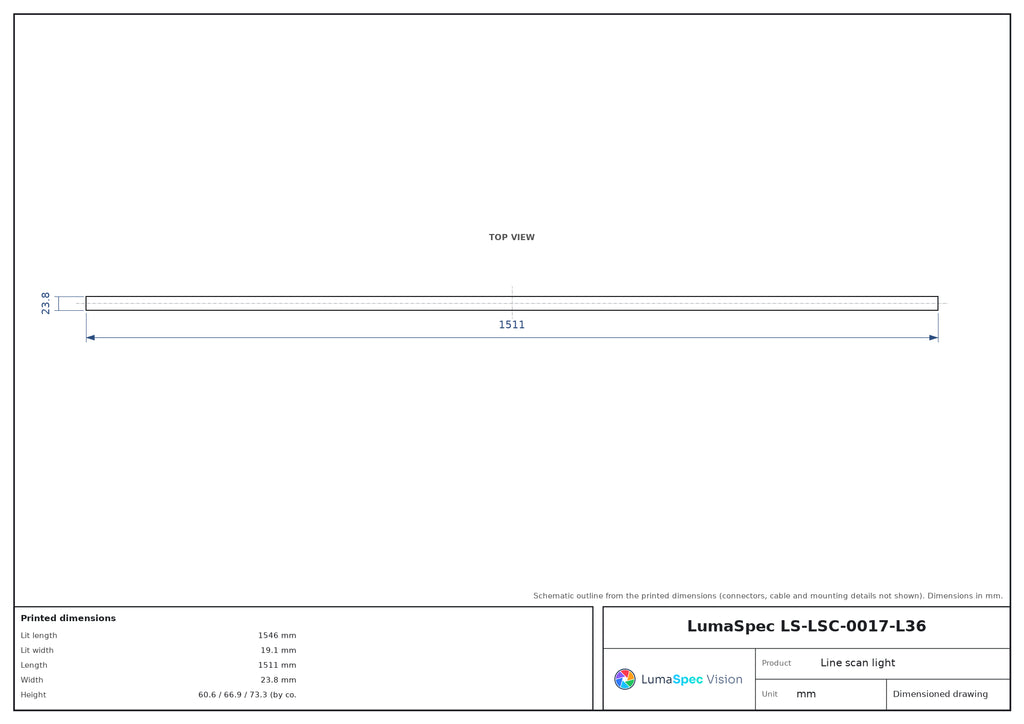

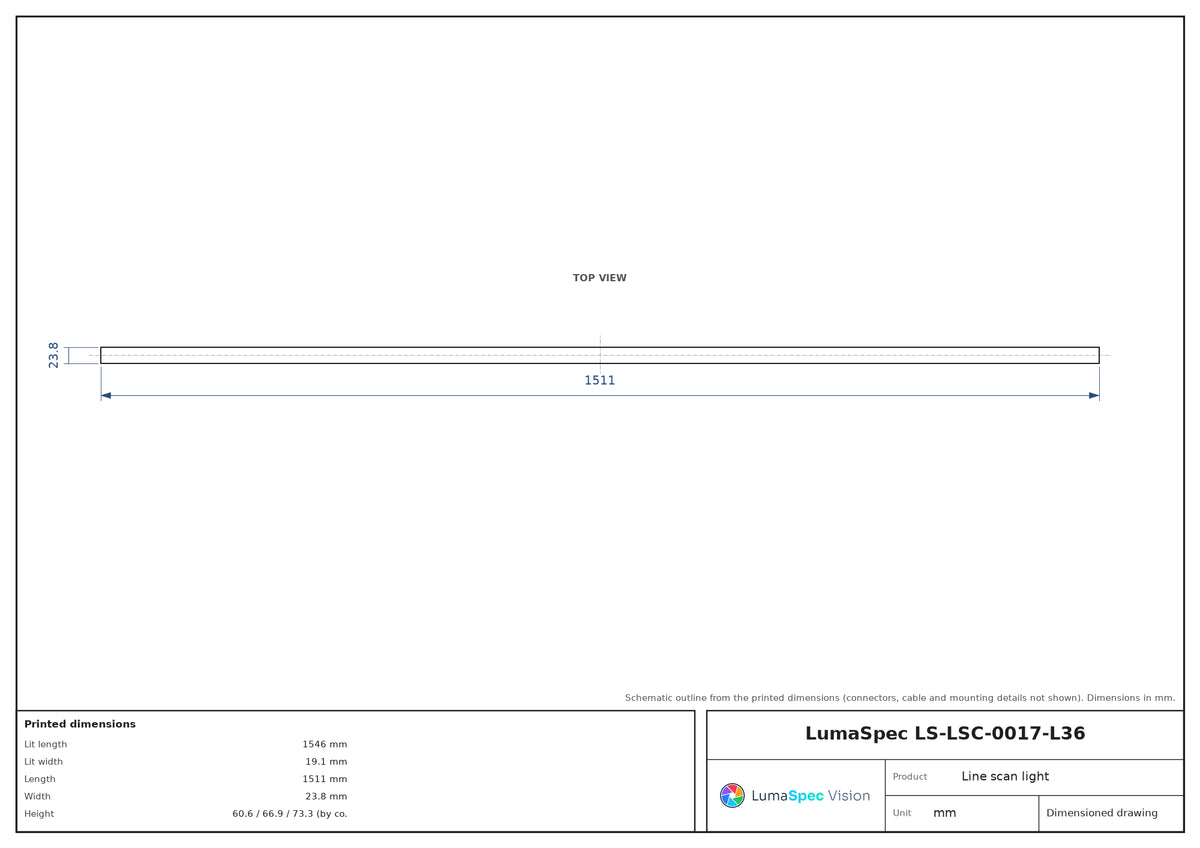

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
