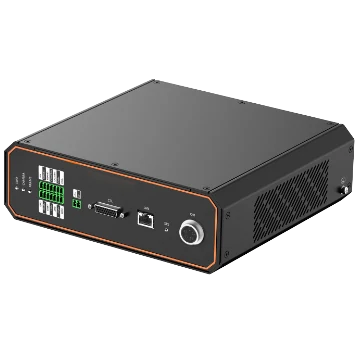

2.5D programmable light controller, 600 W power, Single channel (LS-CTL-0565)

Model LS-CTL-0565

Output24 VDC
Input100 ~ 240 VAC, 50/60 Hz
ControlUDP
Channels1 channel

$229.00

Ships in 2-3 weeks

3.39 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

2.5D programmable light controller, 600 W power, Single channel. Constant-voltage drive for stable light control Device management and parameter configuration via Ethernet

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0565
Lighting mode	Strobe
Dimming mode	Software (Ethernet port), Adjustable brightness
Cooling mode	Fan cooling

Sensor and imaging

Max. line rate	200 kHz

Interfaces and I/O

Communication protocol	UDP
Applicable product	2.5D line-scan programmable fringe light
Power supply interface	C13 220 VAC interface
Console interface	RJ45 Ethernet port
Digital I/O	3 I/O, Single-ended/differential supported
Lighting output connector	18MF-5B (female)

Environment and compliance

Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% RH to 85% RH (no condensation)
Ingress protection	IP30
Certification	CE, KC

Electrical

Drive mode	Digital, constant voltage
Channel	1 channels
Trigger mode	External trigger supported, Internal trigger, Software trigger
Trigger response delay	650 ns
Input voltage	100 ~ 240 VAC, 50/60 Hz
Input current	3.7 A (115 VAC), 1.6 A (230 VAC)
Output current	16 A max
Output power	405 W max
Output current for each channel	16 A max
Trigger in	High level 4.5 to 24 VDC, Low level 0 to 2 VDC
Trigger out	RS485 standard output
Output voltage	24 VDC

Mechanical

Dimension	225.5 mm × 224 mm × 80.2 mm
Shell material	Aluminum alloy housing
Weight	2.35 kg
Shipping weight (estimated)	3.39 kg
