Ring Light, 160 mm dia., 30°, Blue (LS-RNG-0454)
  • Ring Light, 160 mm dia., 30°, Blue (LS-RNG-0454)
  • LS-RNG-0454 dimensions (mm)

Ring lights

Ring Light, 160 mm dia., 30°, Blue (LS-RNG-0454)

Model LS-RNG-0454

  • ColourBlue
  • Emitting areaΦ147 mm
  • SizeΦ160 mm × 18 mm
  • Voltage24 VDC
  • Power31.2 W
  • Wavelength460 nm
$409.00

Ships in 2-3 weeks

0.74 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ring Light, 160 mm dia., 30°, Blue (LS-RNG-0454)LS-RNG-0454

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-RNG-0454: dimension Φ160 mm x 18 mm, bore dimension Φ90 mm, emitting area length Φ147 mm, irradiation angle 30°, power 31.2 W.

Ring Light, 160 mm dia., 30°, Blue. Adopts high-density LED array design. Provides models with various outer dimensions and irradiation angles.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0454
Irradiation angle30°

Optics

Best working distance20 ~ 40 mm

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorBlue
Center illuminance≥6000 Lux @ WD=100 mm
Wavelength460 nm
Emitting area lengthΦ147 mm
LED rows2
Diffuse plate includedPMMA

Environment and compliance

Humidity20% RH to 90% RH (no condensation)
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)

Electrical

Power31.2 W
Input voltage24 VDC

Mechanical

DimensionΦ160 mm × 18 mm
Outer dimensionΦ160 mm
Bore dimensionΦ90 mm
Weight460 g
Shipping weight (estimated)0.74 kg

Engineering data

Drive and fit the LS-RNG-0454

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 V1300 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 31.2 W
Operating temperature0 to 40 °C
Cable length1 m
Center illuminance≥ 6000 luxat WD 100 mm

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

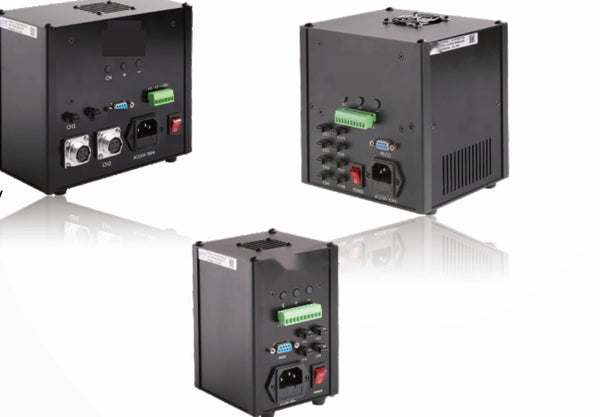

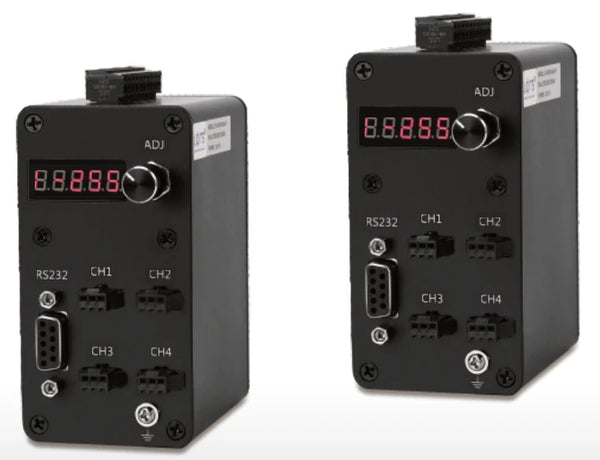

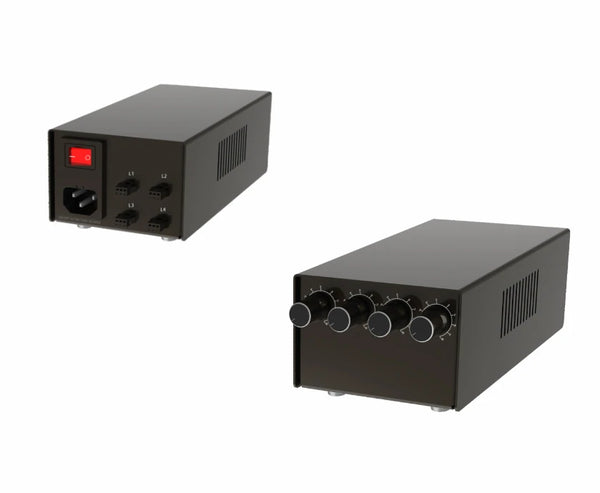

Controllers for this light

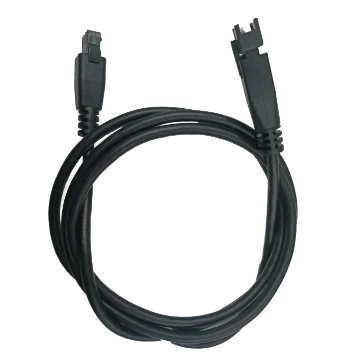

Light cables
