Ring Light, 140 mm dia., 45°, Blue (LS-RNG-0445)
  • Ring Light, 140 mm dia., 45°, Blue (LS-RNG-0445)

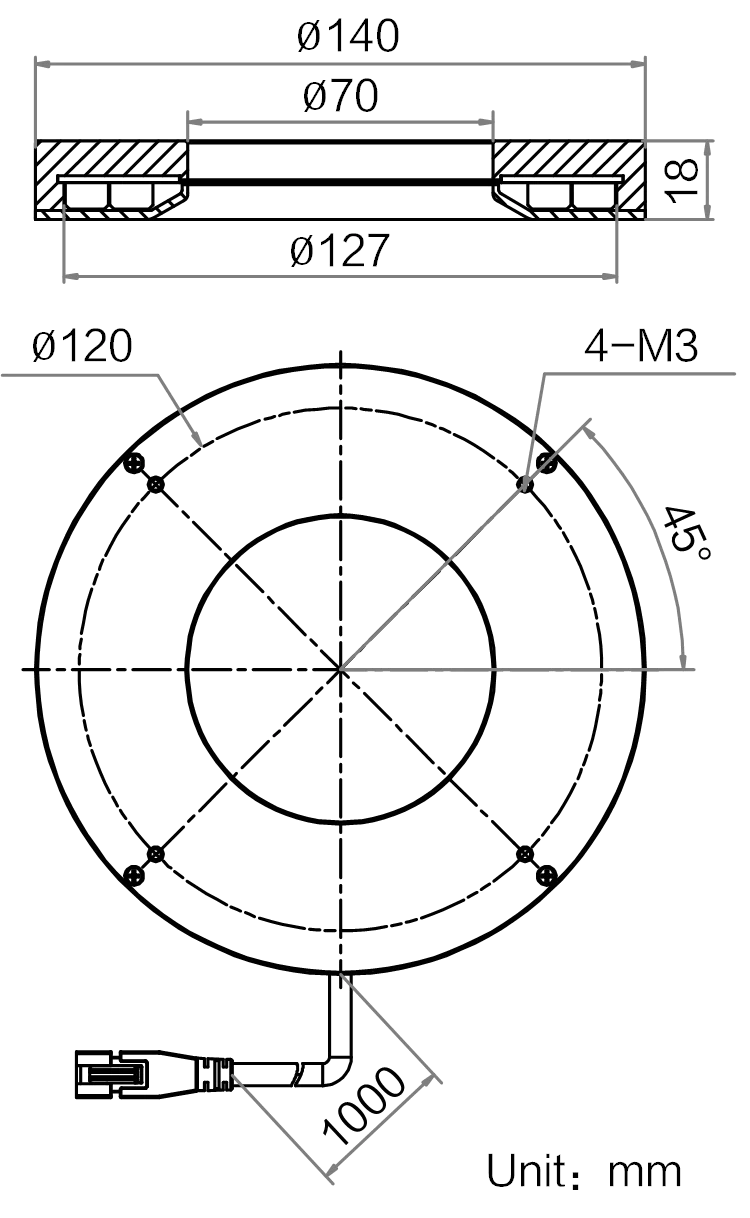

  • LS-RNG-0445 dimensions (mm)

Ring lights

Ring Light, 140 mm dia., 45°, Blue (LS-RNG-0445)

Model LS-RNG-0445

  • ColourBlue
  • Emitting areaΦ127 mm
  • SizeΦ140 mm × 18 mm
  • Voltage24 VDC
  • Power24.5 W
  • Wavelength460 nm
$359.00

Ships in 2-3 weeks

0.63 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ring Light, 140 mm dia., 45°, Blue (LS-RNG-0445)LS-RNG-0445

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Ring Light, 140 mm dia., 45°, Blue. Adopts high-density LED array design. Provides models with various outer dimensions and irradiation angles.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0445
Irradiation angle45°

Optics

Best working distance60 ~ 80 mm

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorBlue
Center illuminance≥4000 Lux@WD=100 mm
Wavelength460 nm
Emitting area lengthΦ127 mm
LED rows2
Diffuse plate includedPMMA

Environment and compliance

Humidity20% RH to 90% RH (no condensation)
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)

Electrical

Power24.5 W
Input voltage24 VDC

Mechanical

DimensionΦ140 mm × 18 mm
Outer dimensionΦ140 mm
Bore dimensionΦ70 mm
Weight380 g
Shipping weight (estimated)0.63 kg
