Ring Light, 120 mm dia., 60°, Blue (LS-RNG-0433)
  • Ring Light, 120 mm dia., 60°, Blue (LS-RNG-0433)

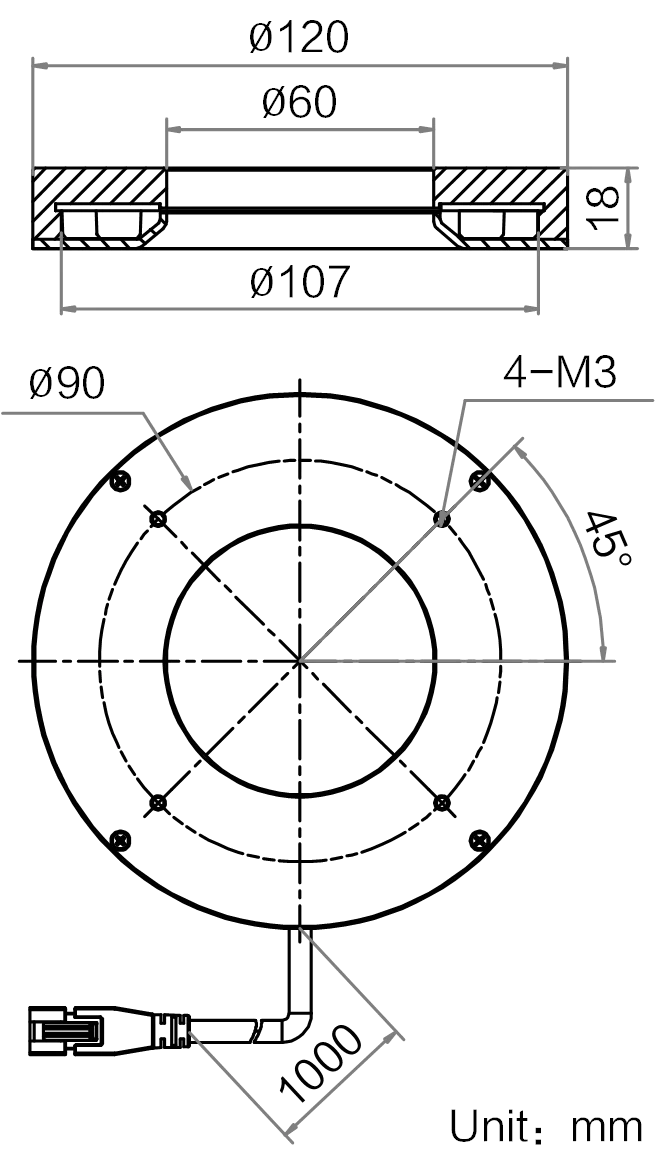

  • LS-RNG-0433 dimensions (mm)

Ring lights

Ring Light, 120 mm dia., 60°, Blue (LS-RNG-0433)

Model LS-RNG-0433

  • ColourBlue
  • Emitting areaΦ107 mm
  • SizeΦ120 mm × 18 mm
  • Voltage24 VDC
  • Power20.3 W
  • Wavelength460 nm
$319.00

Ships in 2-3 weeks

0.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ring Light, 120 mm dia., 60°, Blue (LS-RNG-0433)LS-RNG-0433

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Ring Light, 120 mm dia., 60°, Blue. Adopts high-density LED array design. Provides models with various outer dimensions and irradiation angles.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0433
Irradiation angle60°

Optics

Best working distance90 ~ 110 mm

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorBlue
Center illuminance≥3200 Lux@WD=100 mm
Wavelength460 nm
Emitting area lengthΦ107 mm
LED rows2
Diffuse plate includedPMMA

Environment and compliance

Humidity20% RH to 90% RH (no condensation)
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)

Electrical

Power20.3 W
Input voltage24 VDC

Mechanical

DimensionΦ120 mm × 18 mm
Outer dimensionΦ120 mm
Bore dimensionΦ60 mm
Weight285 g
Shipping weight (estimated)0.50 kg
