Ring Light, 160 mm dia., 90°, Blue (LS-RNG-0460)
  • Ring Light, 160 mm dia., 90°, Blue (LS-RNG-0460)

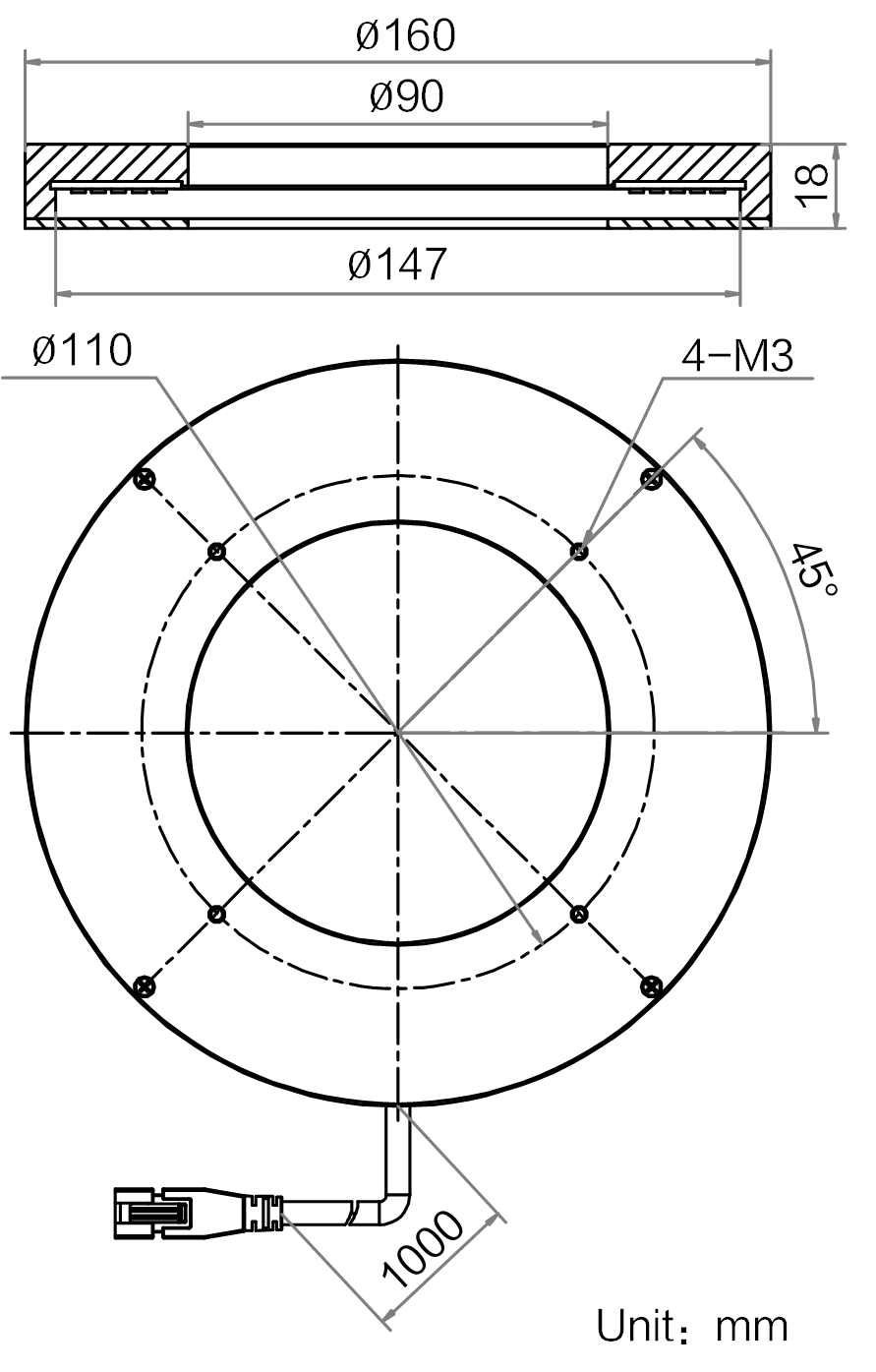

  • LS-RNG-0460 dimensions (mm)

Ring lights

Ring Light, 160 mm dia., 90°, Blue (LS-RNG-0460)

Model LS-RNG-0460

  • ColourBlue
  • Emitting areaΦ147 mm
  • SizeΦ160 mm × 18 mm
  • Voltage24 VDC
  • Power21.1 W
  • Wavelength460 nm
$409.00

Ships in 2-3 weeks

0.72 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ring Light, 160 mm dia., 90°, Blue (LS-RNG-0460)LS-RNG-0460

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Ring Light, 160 mm dia., 90°, Blue. Adopts high-density LED array design. Provides models with various outer dimensions and irradiation angles.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0460
Irradiation angle90°

Optics

Best working distance120 ~ 140 mm

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorBlue
Center illuminance≥4600 Lux@WD=100 mm
Wavelength460 nm
Emitting area lengthΦ147 mm
LED rows5
Diffuse plate includedPMMA

Environment and compliance

Humidity20% RH to 90% RH (no condensation)
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)

Electrical

Power21.1 W
Input voltage24 VDC

Mechanical

DimensionΦ160 mm × 18 mm
Outer dimensionΦ160 mm
Bore dimensionΦ90 mm
Weight440 g
Shipping weight (estimated)0.72 kg
