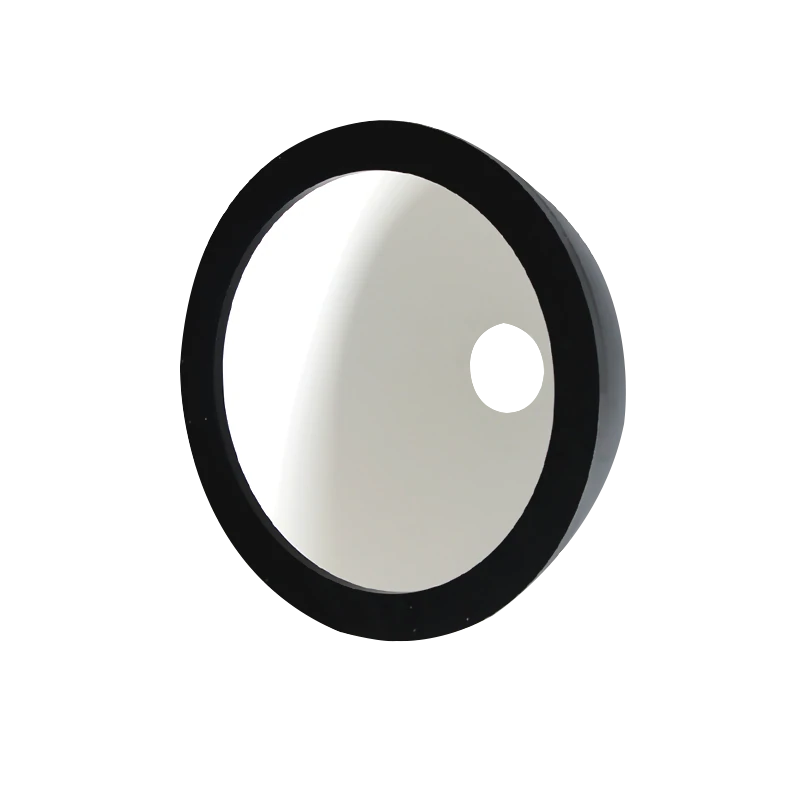

60 mm Dome light (LS-DOM-0080)
Model LS-DOM-0080-R
- ColourRed, Blue, Green, White
- Voltage24 V
- Connector3-pin flat
- LED typeSMD
- Highest light inlet port of the 6 models in its series: 60 mm
Ships in 2-3 weeks
4.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-DOM-0080: outer diameter 370 mm, luminous size(mm) light inlet port 60, height 172 mm, power red 28 W.
Dome light: using the original irradiation structure, it irradiates diffused light with high output, for detecting reflective and uneven surfaces.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-DOM-0080 |
|---|---|
| Category | Dome light |
| Terminal Plug | Flat head 3PIN2 pin |
| Cooling | Naturalair cooling |
| Electrical insulation capacity | DC500V Insulation resistance>20 megohms |
| Pressure Resistance Requirements | AC1000 V10mA/5S |
| Flammability Rating | IEC60707 |
| Value-added Services | One year free technical support |
| Light inlet port (mm) | 60 |
| Light outlet (mm) | 300 |
Interfaces and I/O
| Cable length | 1.2 m |
|---|---|
| Connector Definition | 1:positive(+)red; 2:leave empty; 3:negative(-)black. |
| Mating cable (optional) | 1.Light source extension cable 2.Connector adapter cable |
Light
| LED type | SMD |
|---|---|
| Luminous size(mm) Light inlet port | 60 |
| Luminous size(mm) Light outlet port | 300 |
| Color | red/white/blue/green |
| Wavelength | red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm |
| Color temperature | red: —; white: 6000-6500K; blue: —; green: — |
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller |
Environment and compliance
| Operating Temperature and Humidity | Temperature:0 to 50ºC, Humidity:20% to 85%RH(non-condensing) |
|---|---|
| Lifespan | Under our specified conditions of use, 50000 hours for red light and 30000 hours for white light, the brightness is reduced to 50% of the factory value |
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Power | red: 31Wmax.; white: 44Wmax.; blue: 44Wmax.; green: 44Wmax. |
| Voltage (V) | 24 |
| Power red (W) | 28 |
| Power blue/green/white (W) | 32 |
Mechanical
| Shell material | Aluminum Alloy (Oxidative blackened surface) |
|---|---|
| Shell Hardness Parameters | Static load 230N±10N, time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g |
| Outer diameter (mm) | 370 |
| Height (mm) | 172 |
| Shipping weight | 4.35 kg |
Engineering data
Drive and fit the LS-DOM-0080
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Mounting and installation
| Cable | 1.2 mFlat head 3PIN2 pin connector |
|---|---|
| Housing | Aluminum Alloy (Oxidative blackened surface) |

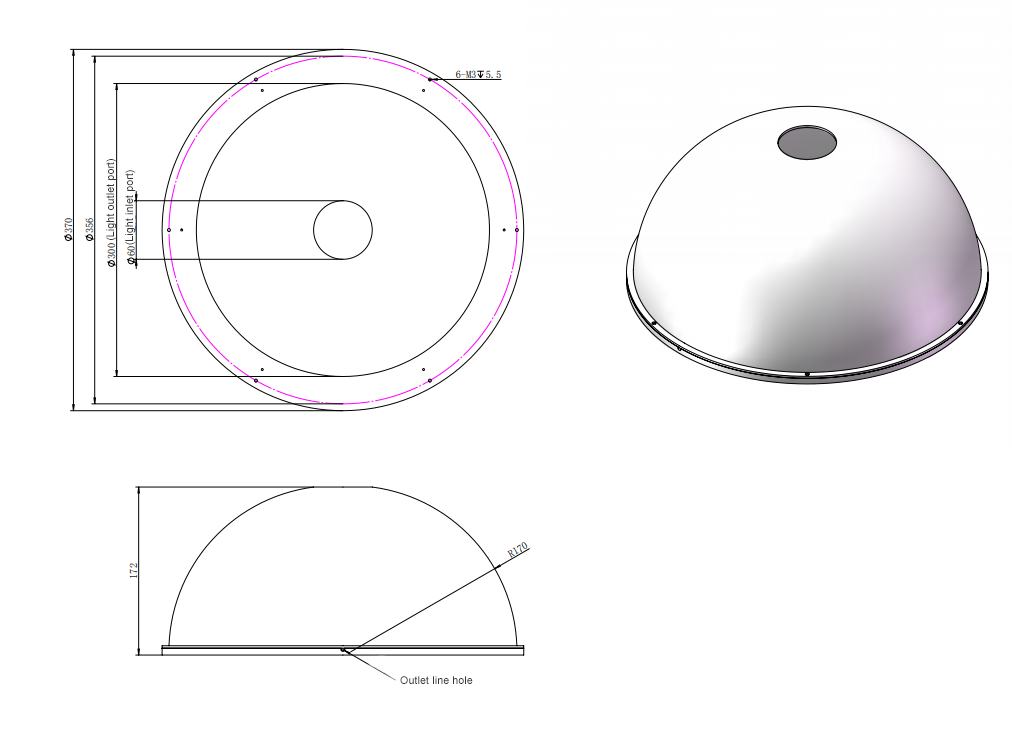

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.
Controllers for this light
60 W per channel at 24 V for this 32 W light
36 W per channel at 24 V for this 32 W light
4-channel 24 V digital LED light controller, 150 W, RS-232
LS-CTL-0480
- Channels 4
- Output 24 V
$250.00
Ships in 3-4 weeks
37.5 W per channel at 24 V for this 32 W light
40 W per channel at 24 V for this 32 W light
60 W per channel at 24 V for this 32 W light
Digital controller, 6 ch, 2.5 A total output
LS-CTL-0352
- Channels 6
- Output 16-24 V
$359.00
Ships in 2-3 weeks
Same 24 V supply
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-DOM-0093, the same type of part
Batteries and automotive
Reflective fuse-terminal appearance
Use diffuse light for terminal appearance and test electrical performance separately.Light in sourceLS-DOM-0093 · whiteExplore the study
Set up with the LS-DOM-0095, the same type of part
Food, pharma and agriculture
Noodle-cake foreign fibre
Even dome light flattens the noodle texture so a dark fibre stands out.Light in sourceLS-DOM-0095 · whiteExplore the study
Set up with the LS-DOM-0050, the same type of part
Batteries and automotive
Battery welds and tabs
Control what shiny metal reflects.LightFlat dome, 100 × 100 mm emittingExplore the study
Other models in the Dome light (LS-DOM-S13) series
See all 6 models- Highest light inlet port of the 6 models in its series: 60 mm
- Highest light outlet of the 6 models in its series: 300 mm
- Largest outer diameter of the 6 models in its series: 370 mm
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-DOM-0080This model | 60 mm | $2,139.00 | Ships in 2-3 weeks | |
| LS-DOM-0077 | 12 mm | $169.00 | Ships in 2-3 weeks | View |
| LS-DOM-0078 | $299.00 | Ships in 2-3 weeks | View | |
| LS-DOM-0075 | $519.00 | Ships in 2-3 weeks | View | |
| LS-DOM-0079 | $769.00 | Ships in 2-3 weeks | View | |
| LS-DOM-0076 | $1,289.00 | Ships in 2-3 weeks | View |
