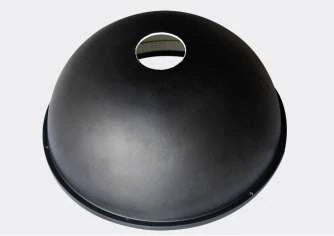

Representative photo of this series
Dome lights
Dome light, outer diameter 266 mm (LS-DOM-0076)
Model LS-DOM-0076
- ColourRed, Blue, Green, White
- Voltage24 V
- LED typeSMD
- Light inlet port50 mm
$1,289.00
Ships in 2-3 weeks
2.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Dome light: using the original irradiation structure, it irradiates diffused light with high output, for detecting reflective and uneven surfaces.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-DOM-0076 |
|---|---|
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Quality service | one year product warranty, technical support |
| Light inlet port (mm) | 50 |
| Light outlet (mm) | 216 |
Light
| LED type | SMD |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 460-470 nm |
| Colour temperature white | 6000-7500 K |
Environment and compliance
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
|---|
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24 |
| Power red (W) | 16 |
| Power blue/green/white (W) | 22 |

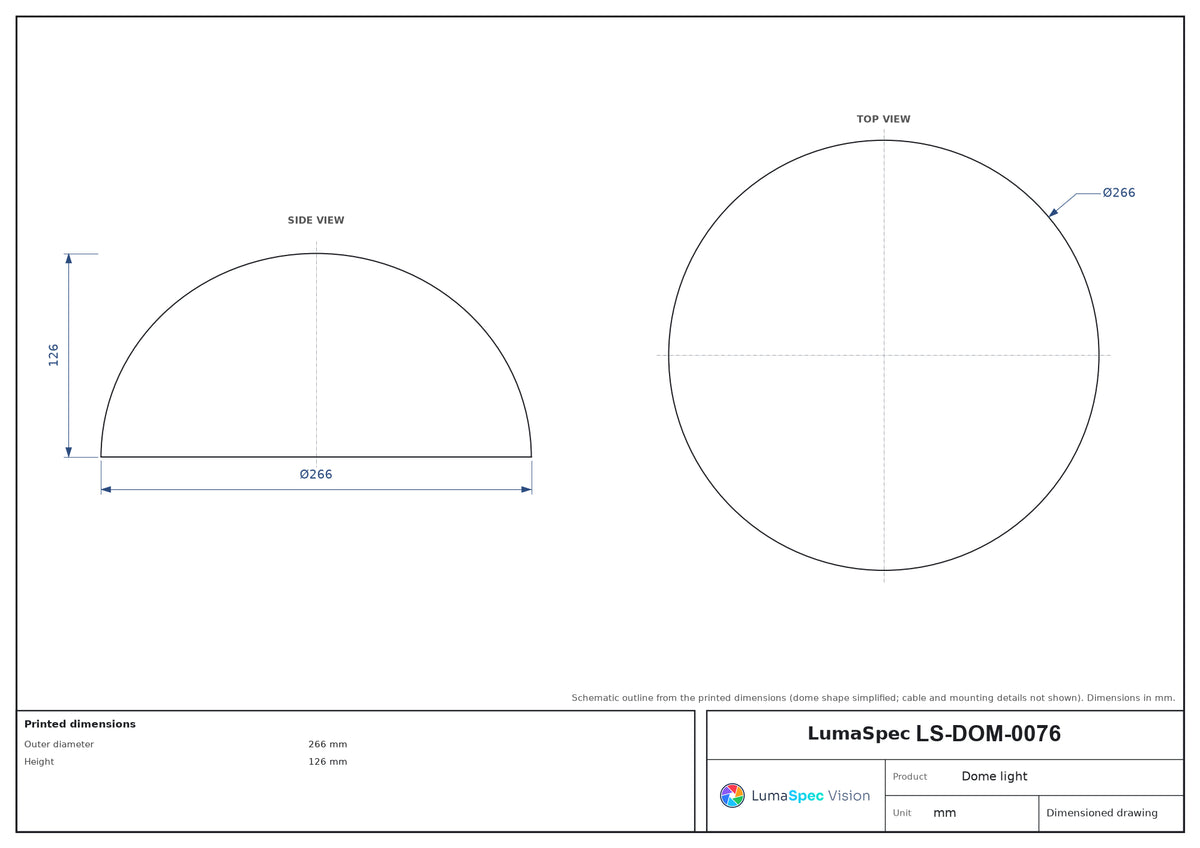

Mechanical
| Outer diameter (mm) | 266 |
|---|---|
| Height (mm) | 126 |
| Shipping weight | 2.35 kg |
Other models in the Dome light (LS-DOM-S13) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-DOM-0077 | 12 mm | $169.00 | Ships in 2-3 weeks | View |
| LS-DOM-0078 | Red, Blue, Green, White · 24 V | $299.00 | Ships in 2-3 weeks | View |
| LS-DOM-0075 | Red, Blue, Green, White · 24 V | $519.00 | Ships in 2-3 weeks | View |
| LS-DOM-0079 | Red, Blue, Green, White · 24 V | $769.00 | Ships in 2-3 weeks | View |
| LS-DOM-0080 | 60 mm | $2,139.00 | Ships in 2-3 weeks | View |
