Representative photo of this series
Dome lights
Dome light, outer diameter 135 mm (LS-DOM-0075)
Model LS-DOM-0075
- ColourRed, Blue, Green, White
- Voltage24 V
- LED typeSMD
- Light inlet port30 mm
$519.00
Ships in 2-3 weeks
0.65 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Dome light: using the original irradiation structure, it irradiates diffused light with high output, for detecting reflective and uneven surfaces.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-DOM-0075 |
|---|---|
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Quality service | one year product warranty, technical support |
| Light inlet port (mm) | 30 |
| Light outlet (mm) | 92 |
Light
| LED type | SMD |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 460-470 nm |
| Colour temperature white | 6000-7500 K |
Environment and compliance
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
|---|
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24 |
| Power red (W) | 7.6 |
| Power blue/green/white (W) | 10 |

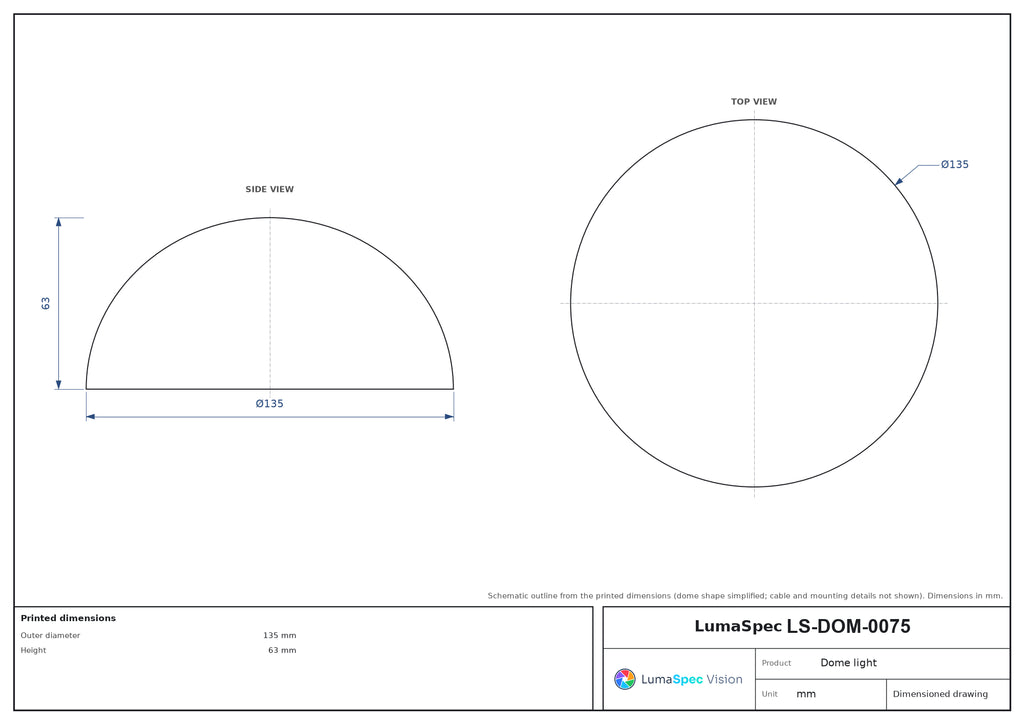

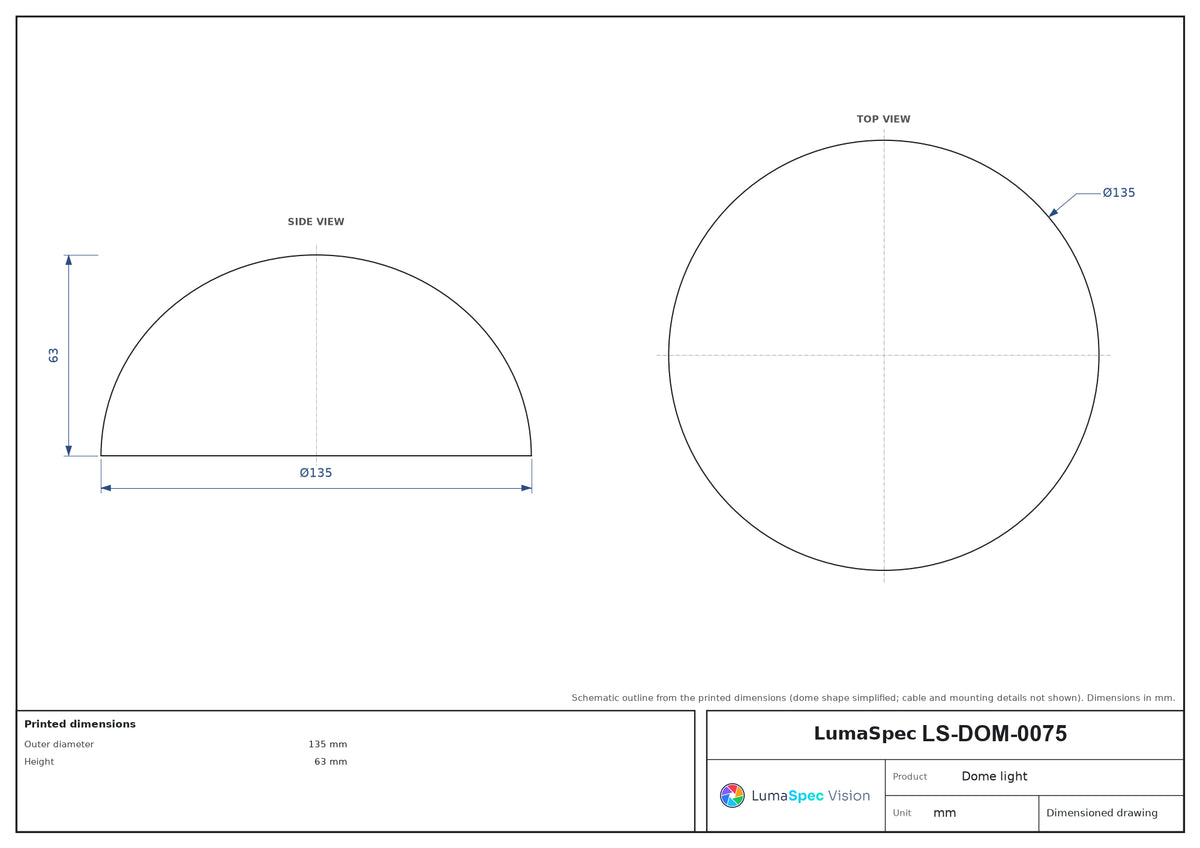

Mechanical
| Outer diameter (mm) | 135 |
|---|---|
| Height (mm) | 63 |
| Shipping weight | 0.65 kg |
