Dome lights

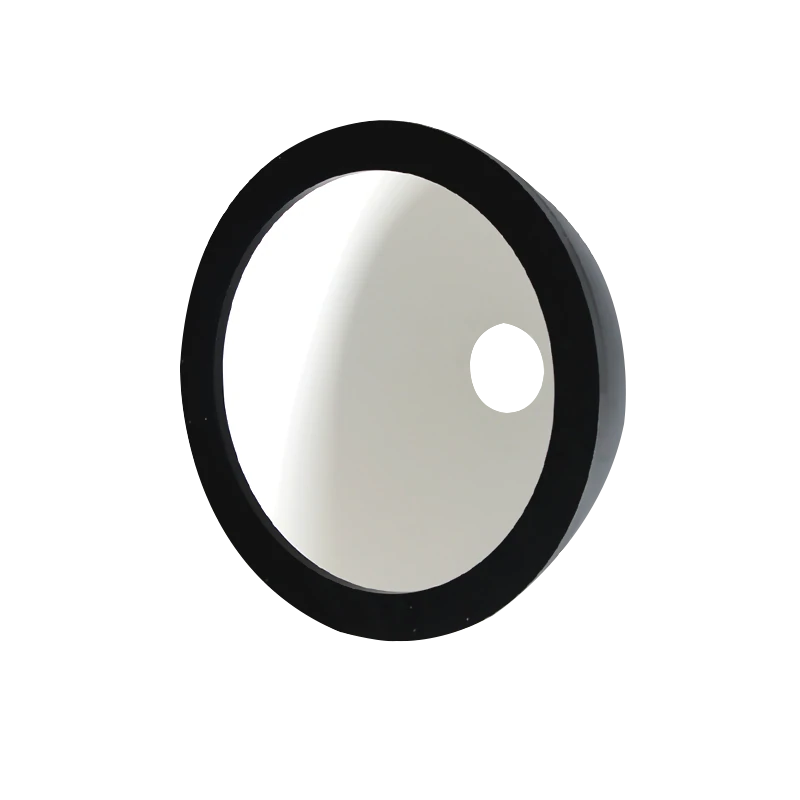

12 mm Dome light (LS-DOM-0077)

Name: 12 mm Dome light (LS-DOM-0077)
Brand: LumaSpec Vision
SKU: LS-DOM-0077
Price: 169.0 USD
Availability: InStock

Model LS-DOM-0077

$169.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.2 kg shipping weight

Color Red Blue Green White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Dome light: using the original irradiation structure, it irradiates diffused light with high output, for detecting reflective and uneven surfaces.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

Model	LS-DOM-0077
Category	Dome light
Terminal Plug	Flat head 3PIN2 pin
Cooling	Naturalair cooling
Electrical insulation capacity	DC500V Insulation resistance>20 megohms
Pressure Resistance Requirements	AC1000 V10mA/5S
Flammability Rating	IEC60707
Value-added Services	One year free technical support
Light inlet port (mm)	12
Light outlet (mm)	28

Cable length	1.2m
Connector Definition	1:positive(+)red; 2:leave empty; 3:negative(-)black.
Mating cable (optional)	1.Light source extension cable 2.Connector adapter cable

LED type	SMD
Luminous size(mm) Light inlet port	12
Luminous size(mm) Light outlet port	28
Color	red/white/blue/green
Wavelength	red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm
Color temperature	red: —; white: 6000-6500K; blue: —; green: —
Brightness Controller (optional)	1.Analog Controller 2.Digital Controller

Operating Temperature and Humidity	Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing)
Lifespan	Under our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value

Power tolerance	actual product power within ±10% of the table is the normal range
Power(W) Red	0.7
Power(W) Blue/White/Green	1
Voltage (V)	24

Shell material	Aluminum Alloy (Oxidative blackened surface)
Shell Hardness Parameters	Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g

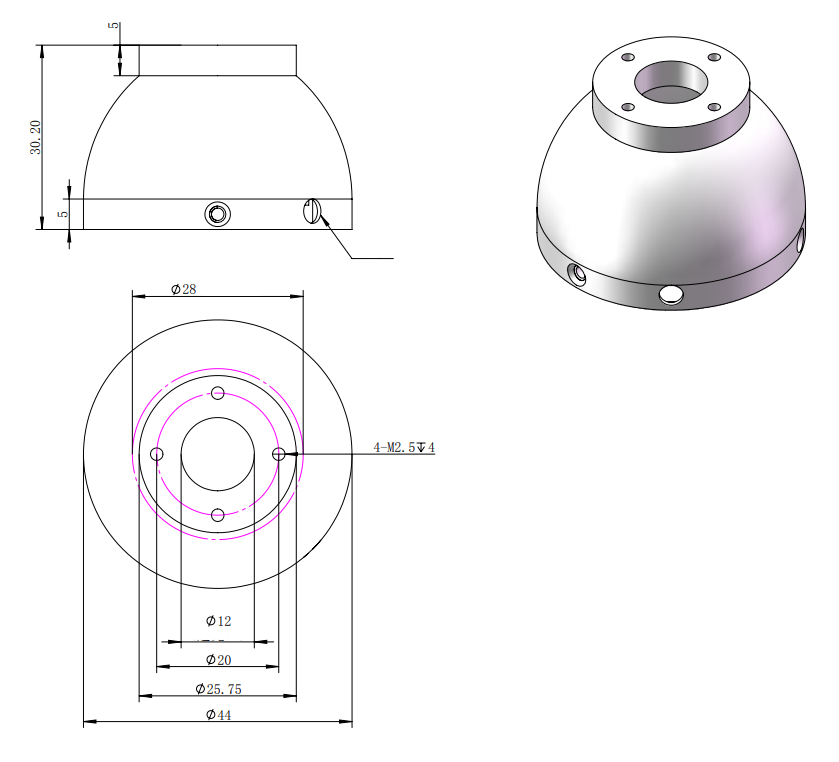

Outer diameter (mm)	44
Height (mm)	30.2
Shipping weight	0.20 kg

Diffused light from the dome for reflective and uneven surfaces
SMD LEDs
Three-colour RGB light source, outer/inner diameter and height, wavelength/colour temperature, mounting and input wire length customization
Light inlet port: 12mm. Light outlet port: 28mm.
Brightness level 255, connected to the controller can be adjusted.
Life span:50000 hours for red light and 30000 hours for white light.
Suitable for detecting reflective, uneven surfaces and arc surface detection, etc.

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Model	Size / key data	Price	Availability	Link
LS-DOM-0078	Red, Blue, Green, White · 24 V	$299.00	14 in stock	View
LS-DOM-0075	Red, Blue, Green, White · 24 V	$519.00	12 in stock	View
LS-DOM-0079	Red, Blue, Green, White · 24 V	$769.00	18 in stock	View
LS-DOM-0076	Red, Blue, Green, White · 24 V	$1,289.00	13 in stock	View
LS-DOM-0080	60 mm	$2,139.00	13 in stock	View
