Coaxial lights
High precision coaxial light, 84 x 60 x 60 mm (LS-CXL-0037)
Model LS-CXL-0037-R
- ColourRed, Blue, Green, White
- SizeL 84 × W 60 × H 60 mm
- Voltage24 V
- Power6.5 W/7.2 W
$389.00
Ships in 2-3 weeks
0.45 kg shipping weight
By placing an order you agree to our Terms of Service, Shipping Policy and Refund Policy. Ship and delivery dates are estimates and are not guaranteed.
Volume pricing, Net 30 terms or a formal quote for purchasing?
lumaspecvision.com/products/lumaspec-ls-cxl-0037
This coaxial light has an 84 x 60 mm housing (LS-CXL-0037), one of the larger sizes in the series. It also has a rated power of 6.5 W/7.2 W.
High precision cube spectrometer to instead of plate spectrometer, high inspection precision. More suitable for tiny object inspection. Compact structure, suitable for limited space environment.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Specifications
General
| Model | LS-CXL-0037-R |
|---|---|
| Viewport (camera hole) | 50 x 38 mm |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|
| Cable (mm) | 500 |
Electrical
| Voltage | 24 V |
|---|---|
| Power | 6.5 W/7.2 W |
| Input voltage | 24 V DC (max) |
Mechanical
| Dimension | L 84 × W 60 × H 60 mm |
|---|---|
| Mounting holes | 4-M3 depth 4.5 |
| Shipping weight | 0.45 kg |
Downloads
Size

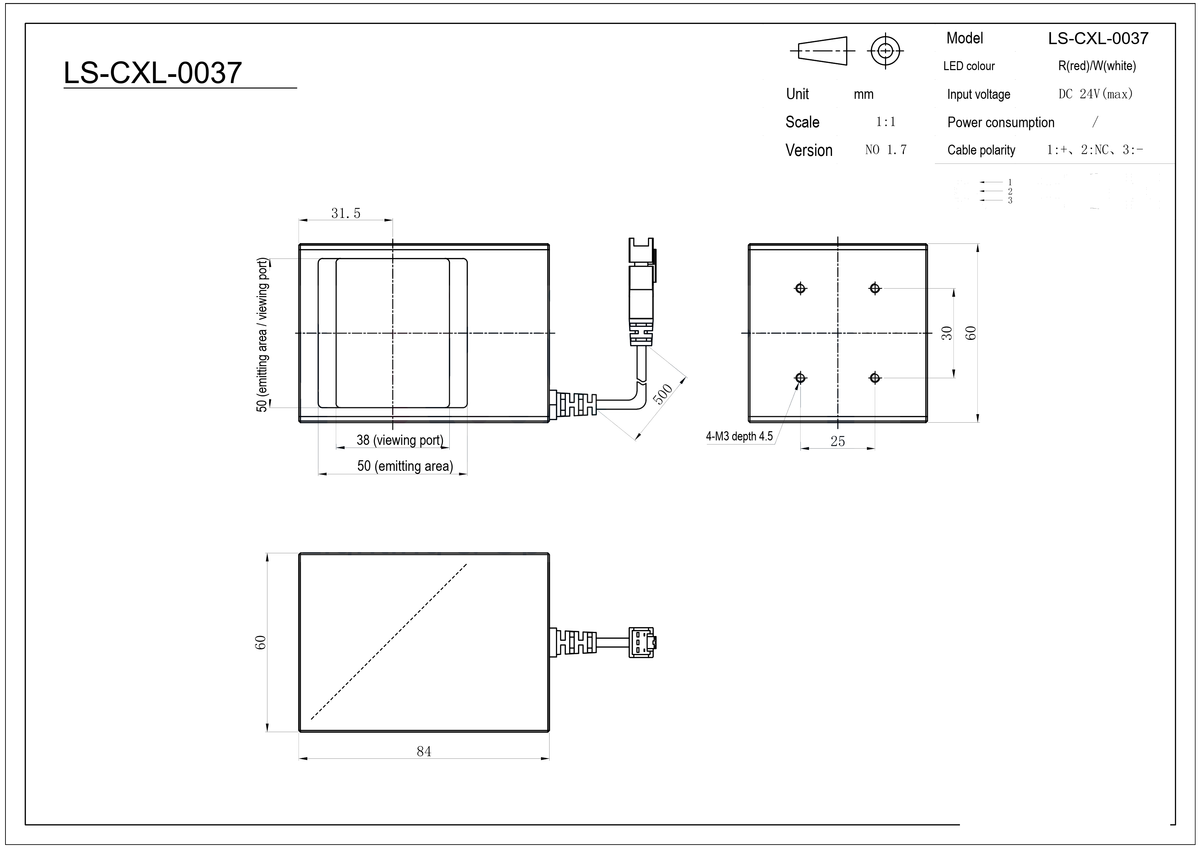

To scale, from the printed dimensionsFeatures of the LS-CXL-0037
- 84 x 60 x 60 mm housing, mounting 4-M3 depth 4.5
- One step down in the series is the 74 x 50 mm version
- Draws about 300 mA at 24 V at full power: needs a controller channel or supply of 7.2 W or more
Shared by the whole High precision coaxial light (LS-CXL-S08) series2 points
- More suitable for tiny object inspection
- Compact structure, suitable for limited space environment
Applications
- The damage inspection of the chip, wafer
- The scratch of reflective surface
- Bar code, QR code recognition
- Printing, silk-screen inspection
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Build a system with this partConfigure a systemAsk an engineer
Engineering data
Drive and fit the LS-CXL-0037
Current at 24 V300 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 7.2 W
Cable length500 mm
Mounting and installation
| Mounting holes | 4 × M3, 4.5 mm deep |
|---|---|
| Cable | 0.5 m |
Compatible parts
Fits with this part
Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This partHigh precision coaxial light, 84 x 60 x 60 mm (LS-CXL-0037)LS-CXL-0037-R · Red
$389.00
-
Controllers for this light
Analog power supply controller, 1 ch, 0.7 A per channel (LS-CTL-0508)
$139.00
Set total $528.00
Added to your quote list.
Controllers for this light
This 7.2 W light uses 43 % of one channel (about 16.8 W, from the rated output)
Digital power supply controller, 6 ch, 2.7 A total output
LS-CTL-0335
- Channels 6
- Output 16~24 V
$519.00
Ships in 2-3 weeks
This 7.2 W light uses 67 % of one channel (about 10.8 W, from the rated output)
2-channel 24 V digital LED light controller, 20 W, RS-232
LS-CTL-0476
- Channels 2
- Output 24 V
$250.00
Ships in 3-4 weeks
This 7.2 W light uses 72 % of one channel (about 10 W, from the rated output)
16 channel digital LED light controller, 16 ch, 200 W
LS-CTL-0554
- Channels 16
- Output 24 V
$789.00
Ships in 2-3 weeks
This 7.2 W light uses 58 % of one channel (about 12.5 W, from the rated output)
PCIe light controller card, 4 channels, 50 W input / 42 W output, With trigger
LS-CTL-0288
- Output 24 VDC
- Input 12 VDC
$239.00
Ships in 2-3 weeks
This 7.2 W light uses 69 % of one channel (about 10.5 W, from the rated output)
Multi-channel sequencing light controller, 8 ch, 120 W
LS-CTL-0579
- Channels 8
- Output 24 V DC
$399.00
Ships in 2-3 weeks
This 7.2 W light uses 48 % of one channel (about 15 W, from the rated output)
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-CXL-0032, a model of this series
Electronics and devices
Phone-shell scratches under precision coaxial light
Control the reflected field before setting a scratch threshold.Proposed light housing (spec)41 × 30 × 24 mmExplore the study
Set up with the LS-CXL-0185, the same type of part
Electronics and devices
Electrode solder joints
Count and compare the joint rings under even coaxial light.Light in sourceLS-CXL-0185 · whiteExplore the study
Set up with the LS-CXL-0124, the same type of part
Electronics and devices
Buzzer polarity mark
Find the round outline first, then use the mark for rotation.Light in sourceLS-CXL-0124 · blueExplore the study
Before you buy
Questions about the LS-CXL-0037
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which controller drives the LS-CXL-0037?
Fit-tested at its highest rated power, 7.2 W: LS-CTL-0508 (about 16.8 W per channel, about 57 % headroom), LS-CTL-0335 (about 10.8 W per channel, about 33 % headroom), LS-CTL-0476 (about 10 W per channel, about 28 % headroom) and LS-CTL-0554 (about 12.5 W per channel, about 42 % headroom).
What supply voltage and power does the LS-CXL-0037 need?
It runs on 24 V. The power is 6.5 W in red and 7.2 W in blue, green or white. That is about 0.30 A at 7.2 W on 24 V (calculated).
Can I return the LS-CXL-0037?
Yes: 90 days from delivery, no restocking fee, and a free US return label. International buyers pay return shipping unless the item is defective or our error.
Learn
Guides for this part
Engineering guides picked for the LS-CXL-0037: how to choose it, set it up and get a better image.
Connector pin lighting for bright, recessed contactsConnector pin lighting usually starts with near-axis coaxial illumination when contacts sit deep inside narrow holes.
White LED color temperature: specify repeatable inspectionWhite LED color temperature describes the apparent warmth of illumination, not its complete spectrum or its effect on a camera.
Which LED colour gives the best contrast in machine visionPick the light colour that makes the feature and its background reflect differently.
Other models in the High precision coaxial light (LS-CXL-S08) series
See all 11 models in the seriesHow this model compares
- Compared with LS-CXL-0038: power 6.5 W/7.2 W here, 8.7 W/10.8 W there; viewport (camera hole) 50 x 38 mm here, 60 x 43 mm there.
Swipe to see all columns
| Model | Viewport (camera hole) | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-CXL-0033 | 20 x 16 mm | L 54 × W 30 × H 30 mm | 1.5 W/1.5 W | $239.00 | Ships in 2-3 weeks | View |
| LS-CXL-0035 | 30 x 30 mm | L 64 × W 40 × H 40 mm | 2.9 W/4.4 W | $279.00 | Ships in 2-3 weeks | View |
| LS-CXL-0036 | 40 x 33 mm | L 74 × W 50 × H 50 mm | 4.4 W/4.4 W | $329.00 | Ships in 2-3 weeks | View |
| LS-CXL-0037This model | 50 x 38 mm | L 84 × W 60 × H 60 mm | 6.5 W/7.2 W | $389.00 | Ships in 2-3 weeks | |
| LS-CXL-0038 | 60 x 43 mm | L 94 × W 70 × H 70 mm | 8.7 W/10.8 W | $439.00 | Ships in 2-3 weeks | View |
| LS-CXL-0039 | 80 x 70 mm | L 114 × W 90 × H 92 mm | 15.2 W/21.6 W | $559.00 | Ships in 2-3 weeks | View |
| LS-CXL-0040 | 100 x 76 mm | L 134 × W 110 × H 112 mm | 24.5 W/32.4 W | $689.00 | Ships in 2-3 weeks | View |
| LS-CXL-0041 | 120 x 96 mm | L 154 × W 130 × H 132 mm | 34.6 W/45.4 W | $829.00 | Ships in 2-3 weeks | View |
| LS-CXL-0034 | L 55.5 × W 40 × H 34 mm | 2.9 W/4.4 W | $249.00 | Ships in 2-3 weeks | View |
