Bar lights
288 x 18 mm High brightness bar light (LS-BAR-0633)
Model LS-BAR-0633-R
- ColourRed, Green, Blue, White
- Emitting area288 x 18 mm
- TypeLinear / high intensity
- Wavelength red620-630 nm
$319.00
Ships in 2-3 weeks
0.7 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-BAR-0633: length 300 mm, emitting area 288 x 18 mm, power R 28 W.
High-brightness bar light, three times brighter than standard bar lights. High-power LEDs allow lighting over long distances.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0633 |
|---|---|
| Optional accessories | Extension cable, diffuse plate |
| Service life | Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions |
| Lamp bead rows | 1 |
| L (mm) | 300 |
| W (mm) | 26 |
| H (mm) | 58 |
Interfaces and I/O
| Cable length | 500 mm (drawings) |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Emitting area (mm) | 288 x 18 |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller should match the power of the light source) |
|---|---|
| Power R (W) | 28 |
| Power G/B/W (W) | 40 |
| Recommended controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28 |
Mechanical
| Mounting | 2 x 4-M3, depth 4 (drawings) |
|---|---|
| Shipping weight | 0.70 kg |
Engineering data
Drive and fit the LS-BAR-0633
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Supply24 V DC
Current at 24 VRed: 1167 mAGreen / Blue / White: 1667 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 40 W
Emitting length288 mm
Operating temperature0 to 40 °C
Cable length500 mmdrawings
Mounting and installation
| Mounting holes | 2 × 4 × M3 (8 holes)4 mm deep |
|---|---|
| Cable | 0.5 m |

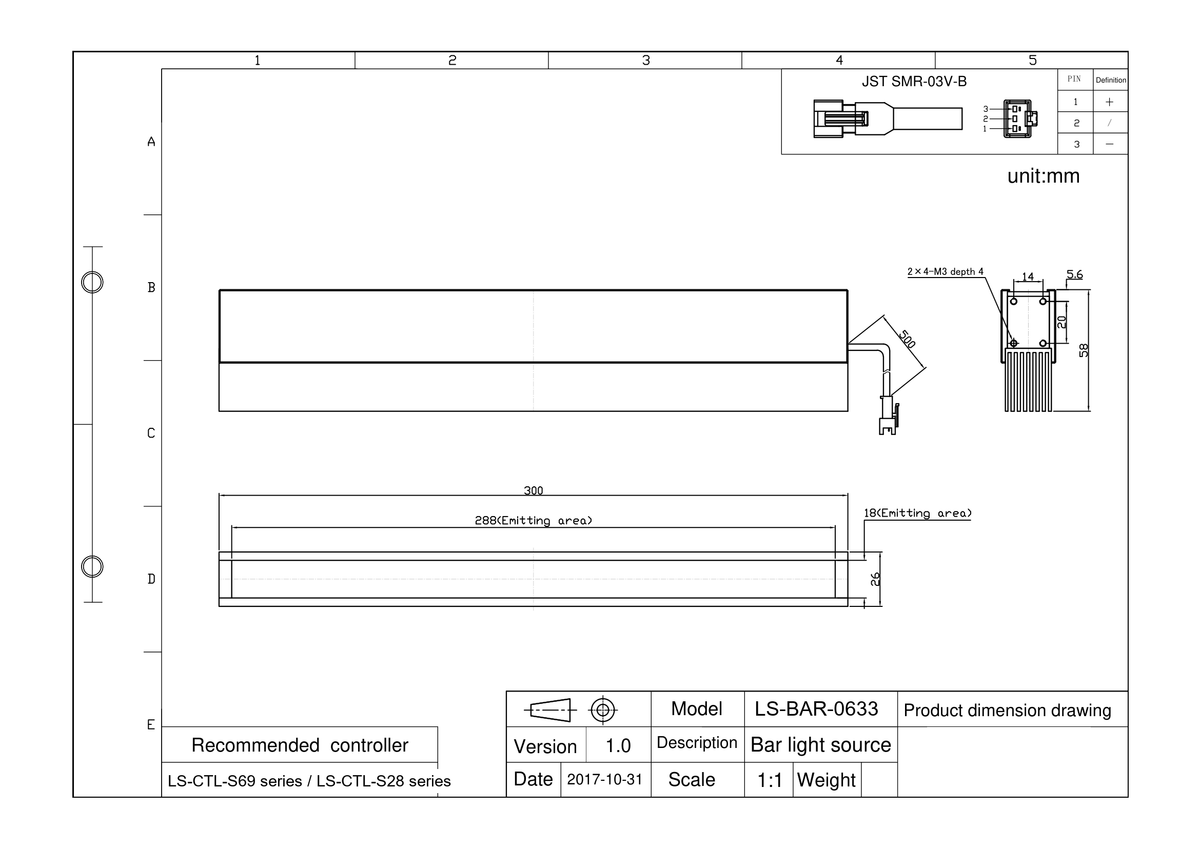

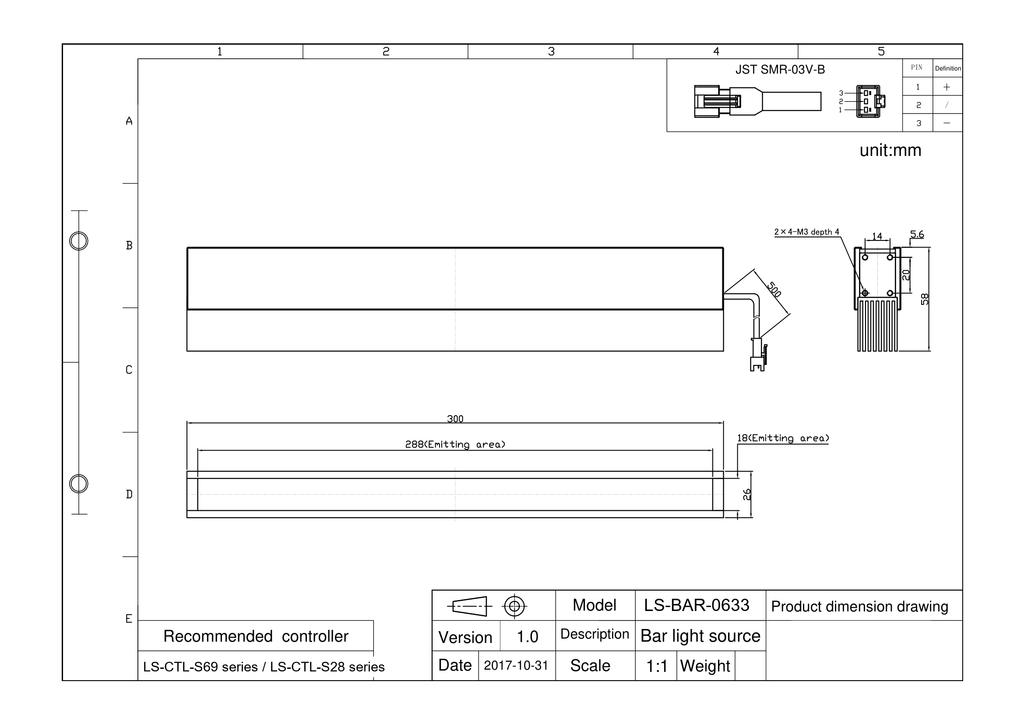

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
