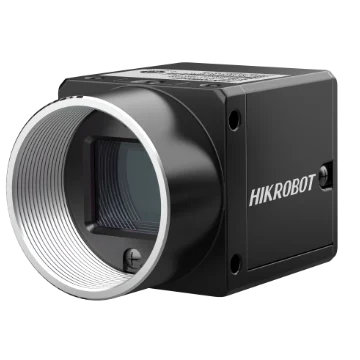

Hikrobot XAS2000-19UM 20 MP 1" CMOS USB3.0 industrial area scan camera
Model XAS2000-19UM
Hikrobot XAS2000-19UM 20 MP 1" CMOS USB3.0 industrial area scan camera. Automatic or manual adjustment of gain, exposure time, white balance, gamma, LUT correction and more Custom ROI with horizontal and vertical mirroring
Features
- Automatic or manual adjustment of gain, exposure time, white balance, gamma, LUT correction and more
- Custom ROI with horizontal and vertical mirroring
- Supports hardware trigger, software trigger and free-run modes
- Compatible with USB3 Vision and the GenICam standard for seamless connection to third-party software platforms
- New-generation housing design with four-side mounting
Specifications
| Model | XAS2000-19UM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony IMX183 |
| Pixel size | 2.4 μm×2.4 μm |
| Sensor size | 1" |
| Resolution | 5472 × 3648 |
| Max. frame rate | 19.2 fps@5472×3648 Mono 8 |
| Dynamic range | 65.5 dB |
| SNR | 41.5 dB |
| Gain | 0 dB ~24 dB |
| Exposure time | 14 μs ~ 0.86 sec |
| Exposure mode | Auto exposure supported, Manual exposure, One-touch exposure, Rolling Shutter supported, Global Reset function |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bidirectional configurable non-isolated IO (Line 2) |
| Power supply | 9~24 VDC, USB power supported |
| Power consumption | 1.6 W @ 5 VDC (USB 3.0 powered) |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 30 mm |
| Weight | IP40 (under proper lens installation and wiring) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Operating temperature: -30 to 60℃, Storage temp.: -30 to 80 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.45 kg |
