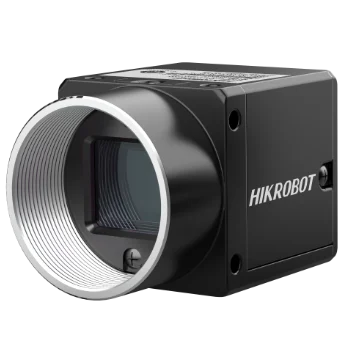

Hikrobot MV-XD0200-10UM V5 20MP Area Scan Camera, USB3.0, IMX183, Color
Model MV-XD0200-10UM V5
Hikrobot MV-XD0200-10UM V5 20MP Area Scan Camera, USB3.0, IMX183, Color. Automatic or manual adjustment of gain, exposure time, white balance, gamma, LUT correction and more Custom ROI with horizontal and vertical mirroring
Features
- Automatic or manual adjustment of gain, exposure time, white balance, gamma, LUT correction and more
- Custom ROI with horizontal and vertical mirroring
- Supports hardware trigger, software trigger and free-run modes
- Compatible with USB3 Vision and the GenICam standard for seamless connection to third-party software platforms
- New-generation housing design with four-side mounting
Specifications
| Model | MV-XD0200-10UM V5 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony IMX183 |
| Pixel size | 2.4 μm×2.4 μm |
| Sensor size | 1" |
| Resolution | 5472 × 3648 |
| Max. frame rate | 19.2 fps@5472 × 3648 Mono 8 |
| Dynamic range | 65.5 dB |
| SNR | 41.5 dB |
| Gain | 0 dB ~24 dB |
| Exposure time | 14 μs ~ 0.86 sec |
| Exposure mode | 65.5 dB |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Power consumption | Typ. 1.6 W @ 5 VDC (USB3.0 provides power supply) |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 30 mm |
| Weight | IP40 (under proper lens installation and wiring) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | 20% RH to 95% RH (no condensation) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.45 kg |
