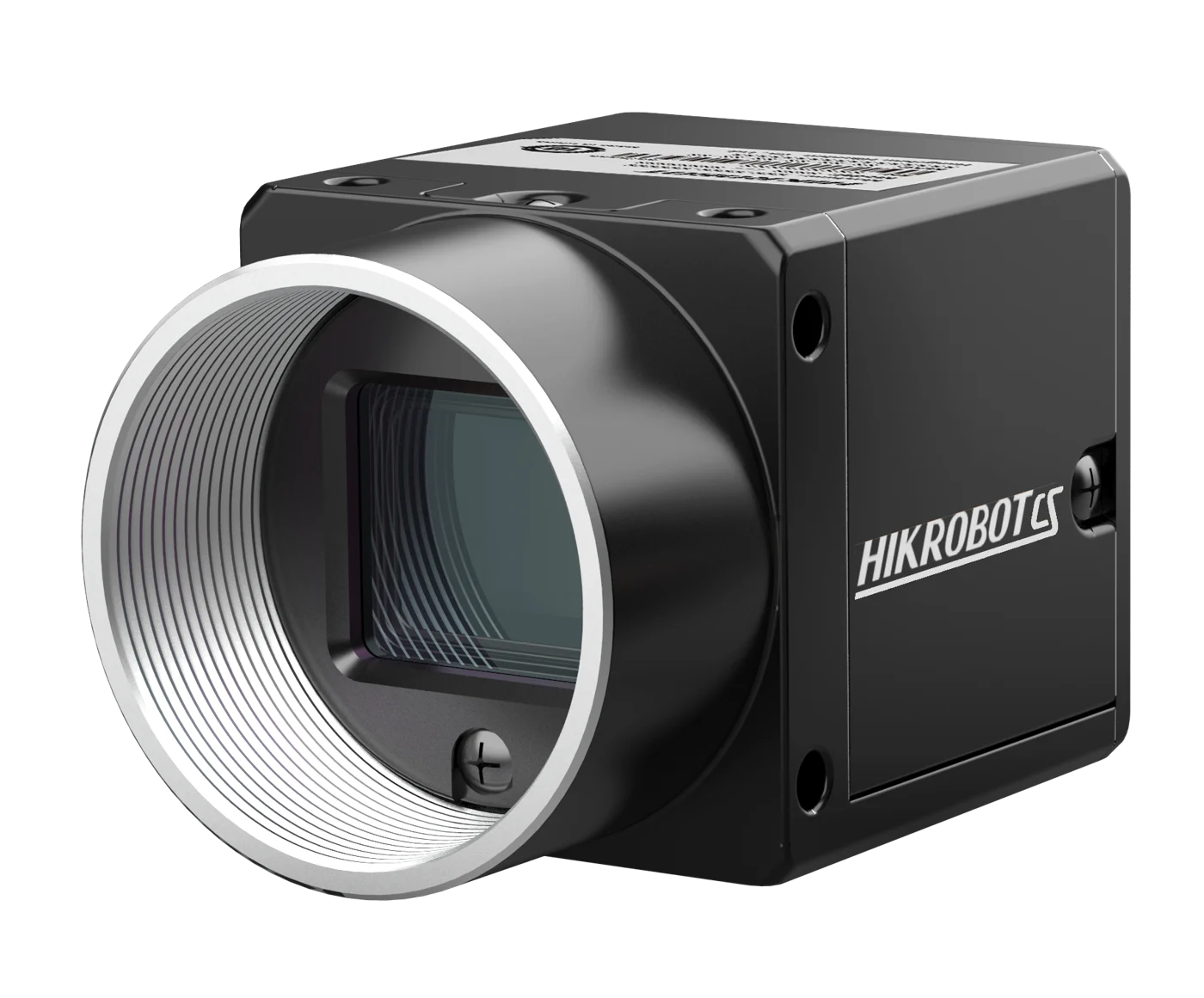

Hikrobot MV-CS240-90UM 24 MP USB3.0 area scan camera, GMAX2424, Gen 2, Mono

Area scan cameras

Hikrobot MV-CS240-90UM 24 MP USB3.0 area scan camera, GMAX2424, Gen 2, Mono

Model MV-CS240-90UM

Hikrobot MV-CS240-90UM 24 MP USB3.0 area scan camera, GMAX2424, Gen 2, Mono. Automatic or manual adjustment of gain, exposure time, white balance, gamma, LUT correction and more Custom ROI with horizontal and vertical mirroring

Price on request
0.21 kg shipping weight · Ships in 2-3 weeks

Build a system with this camera → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF, Chinese) - MV-CS240-90UMUser manual (PDF, Chinese) - MV-CS240-90UMCAD: 3D STEP + 2D DXF (ZIP) - MV-CS240-90UM

Features

  • Automatic or manual adjustment of gain, exposure time, white balance, gamma, LUT correction and more
  • Custom ROI with horizontal and vertical mirroring
  • Supports hardware trigger, software trigger and free-run modes
  • New-generation housing design with four-side mounting
  • Compatible with USB3 Vision and the GenICam standard for seamless connection to third-party software platforms

Specifications

ModelMV-CS240-90UM
BrandHikrobot
Sensor typeCMOS, rolling shutter
Sensor modelGMAX2424
Pixel size2.4 μm × 2.4 μm
Sensor size1.1”
Resolution6016 × 4096
Max. frame rate15 fps @6016 × 4096 Mono 8
Dynamic range72 dB
SNR41 dB
Gain0 dB ~ 24 dB
Exposure time32 μs ~ 10 sec
Exposure modeAuto exposure supported, Manual exposure, One-touch exposure and other modes, Rolling and Global Reset supported
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Data interfaceUSB3.0, compatible with USB2.0
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports USB3.0 power supply
Power consumption2.6 W @ 5 VDC (USB 3.0 powered)
Lens mountC-Mount
Dimension29 mm × 29 mm × 30 mm
WeightApprox. 80 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureOperating temperature -30°C to 50°C, Storage temperature -30°C to 80°C
Humidity20% RH to 95% RH (no condensation)
Client softwareMVS or third-party software meeting with USB3 Vision Protocol
Operating systemWindows 7/10 32/64bits, Windows 11 64 bits, Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
Shipping weight (estimated)0.21 kg
