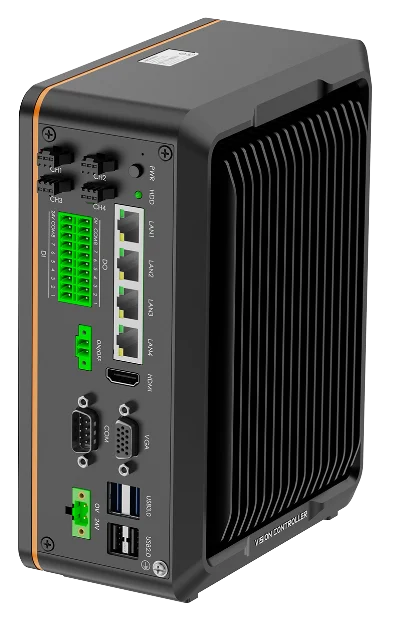

Hikrobot MV-VCB2240-128G46-NN VCB2200 vision controller, N97, 8GB+128G SSD

Name: Hikrobot MV-VCB2240-128G46-NN VCB2200 vision controller, N97, 8GB+128G SSD
Brand: Hikrobot
SKU: MV-VCB2240-128G46-NN

Model MV-VCB2240-128G46-NN

Hikrobot MV-VCB2240-128G46-NN VCB2200 vision controller, N97, 8GB+128G SSD. New Intel Alder Lake-N platform processor for powerful computing performance GPIO support

Datasheet (PDF, Chinese) - MV-VCB2240-128G46-NN

Features

New Intel Alder Lake-N platform processor for powerful computing performance
GPIO support
4-channel light control for sharper imaging
4 GigE ports for fast, stable image transmission
Optional built-in USB port or built-in dongle for easy on-site deployment and maintenance

Specifications

Model	MV-VCB2240-128G46-NN
Brand	Hikrobot
CPU	Intel® Processor N97
Memory	8GB
Storage	128G SSD
GPU	Intel® UHD Graphics
Operating system	Windows 10 LTSC 21H2 64-bit, Not activated
Encryption method	Includes VM6200SE encryption dongle
Video output	1× HDMI port, 1 × VGA port; Simultaneous independent display output supported; Up to 1920 × 1080 @60Hz
Digital I/O	8 opto-isolated inputs; 8 opto-isolated outputs
Light interface	4× 24 V constant-voltage light ports, Adjustable brightness, Max current per channel: 3 A, Max total power: 80 W; Switchable external-trigger strobe and continuous modes
Network interface	GigE interface × 4
USB Interface	2× USB2.0 port; 2× USB3.0 port
Serial Port	RS-232 × 1, supports switching to RS-485 or RS-422
Power supply	24 VDC
Power consumption	51 W (without light)
Dimension	165mm × 205.6 mm × 86 mm
Weight	Approx. 2 kg (4.4 lb.)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, KC
Shipping weight (estimated)	2.90 kg

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
