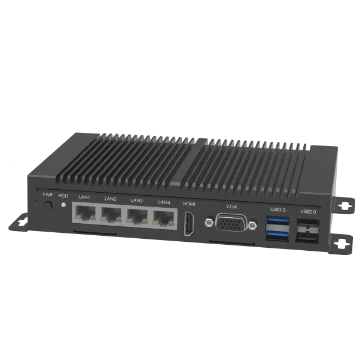

Hikrobot MV-VC2000-128G50-NN-mini VC2000 mini, 8 G +128 G SSD, 4× Gigabit Ethernet + 1× Fast Ethernet ports, Compact size

Name: Hikrobot MV-VC2000-128G50-NN-mini VC2000 mini, 8 G +128 G SSD, 4× Gigabit Ethernet + 1× Fast Ethernet ports, Compact size
Brand: Hikrobot
SKU: MV-VC2000-128G50-NN-mini

Model MV-VC2000-128G50-NN-mini

Hikrobot MV-VC2000-128G50-NN-mini VC2000 mini, 8 G +128 G SSD, 4× Gigabit Ethernet + 1× Fast Ethernet ports, Compact size. New Intel Elkhart Lake platform processor for strong computing performance 4× GigE ports and 1× 100 Mbps Ethernet ports for fast, stable image transfer

Datasheet (PDF, Chinese) - MV-VC2000-128G50-NN-mini User manual (PDF, Chinese) - MV-VC2000-128G50-NN-mini CAD: 3D STEP + 2D DXF (ZIP) - MV-VC2000-128G50-NN-mini

Features

New Intel Elkhart Lake platform processor for strong computing performance
4× GigE ports and 1× 100 Mbps Ethernet ports for fast, stable image transfer
Multiple USB2.0 and USB3.0 ports

Specifications

Model	MV-VC2000-128G50-NN-mini
Brand	Hikrobot
CPU	Intel® CeleronTM J6412
Memory	8 GB
Storage	128G SSD
GPU	Intel® HD Graphics for Gen 10 Intel® processors
Operating system	Windows 10 64-bit, Not activated
Video output	HDMI interface × 1, VGA interface × 1; Supports independent display output at the same time; Max. resolution 1920 × 1080 @ 60 Hz
Network interface	4× Gigabit Ethernet ports, 1× Fast Ethernet port
USB Interface	4× USB 2.0 ports; 2× USB 3.0 ports
Power supply	9 VDC ~ 36 VDC
Power consumption	48 W
Dimension	206 mm × 130 mm × 36.7 mm
Weight	Approx. 1.1 kg
Temperature	Operating temp. 0 °C to 50 °C, Storage temp.: -30 °C to 70 °C
Humidity	20% RH to 80% RH (no condensation)
Certification	CCC, CE, KC
Shipping weight (estimated)	1.64 kg
