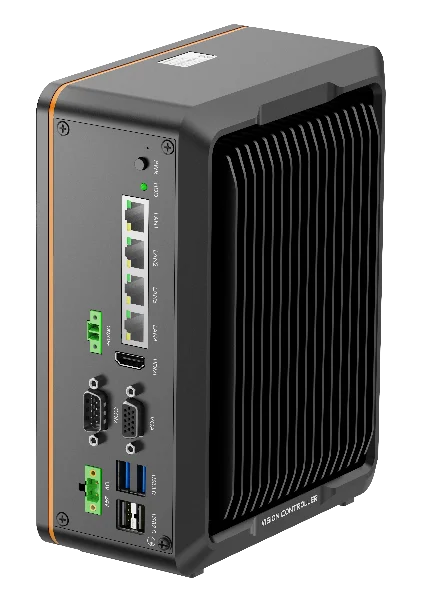

Hikrobot MV-VCB2100-128G40-NN VCB2100 vision controller, N97, 8GB+128G SSD, Basic version, No I/O, light and other functions

Name: Hikrobot MV-VCB2100-128G40-NN VCB2100 vision controller, N97, 8GB+128G SSD, Basic version, No I/O, light and other functions
Brand: Hikrobot
SKU: MV-VCB2100-128G40-NN

Model MV-VCB2100-128G40-NN

Hikrobot MV-VCB2100-128G40-NN VCB2100 vision controller, N97, 8GB+128G SSD, Basic version, No I/O, light and other functions. New Intel Alder Lake-N platform processor for powerful computing performance 4 GigE ports for fast, stable image transmission

Datasheet (PDF, Chinese) - MV-VCB2100-128G40-NN User manual (PDF, Chinese) - MV-VCB2100-128G40-NN CAD: 3D STEP + 2D DXF (ZIP) - MV-VCB2100-128G40-NN

Features

New Intel Alder Lake-N platform processor for powerful computing performance
4 GigE ports for fast, stable image transmission
Optional built-in USB port or built-in dongle for easy on-site deployment and maintenance

Specifications

Model	MV-VCB2100-128G40-NN
Brand	Hikrobot
CPU	Intel® Processor N97
Memory	8GB
Storage	128G SSD
GPU	Intel® UHD Graphics
Operating system	Windows 10 64-bit, Not activated
Video output	HDMI interface × 1, VGA interface × 1; Supports independent display output at the same time; Max. resolution 1920 × 1080 @ 60 Hz
Digital I/O	Not supported
USB Interface	2× USB 2.0 ports; 2× USB 3.0 ports
Network interface	GigE interface × 4
Serial Port	1 × configurable RS-232 (configurable as RS-485/RS-422)
Power supply	24 VDC
Power consumption	51 W
Dimension	160.59 mm × 205.6 mm × 86 mm
Weight	Approx. 2 kg (4.4 lb.)
Temperature	Operating temp. 0 °C to 50 °C, Storage temp.: -30 °C to 70 °C
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, KC
Shipping weight (estimated)	2.90 kg

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the VC2000 series Vision Controller series

Model	Size	Price	Availability
MV-VC2143-128G40-1T	N97, 8GB+128G SSD+ 1THDD	Price on request	2 in stock	View
MV-VC2143-128G40-NN	N97, 8GB+128G SSD	Price on request	4 in stock	View
MV-VC2000-128G50-NN-mini		Price on request	3 in stock	View
MV-VC2100-128G40-NN	N97, 8GB+128G SSD	Price on request	3 in stock	View
MV-VC2100-128G40-1T	N97, 8GB+128G SSD+ 1T HDD	Price on request	3 in stock	View
MV-VC2140-128G46-NN	N97, 8GB+128G SSD	Price on request	2 in stock	View
MV-VC2140-128G46-1T	N97, 8GB+128G SSD+ 1THDD	Price on request	5 in stock	View
MV-VC2103-128G40-1T	N97, 8GB+128G SSD	Price on request	3 in stock	View
MV-VC2103-128G40-NN	N97, 8GB+128G SSD	Price on request	4 in stock	View
MV-VC2143-128G46-NN	N97, 8GB+128G SSD	Price on request	4 in stock	View
MV-VC2143-128G46-1T	N97, 8GB+128G SSD+ 1THDD	Price on request	4 in stock	View
MV-VC2101-128G40-NN	N97, 16GB+128G SSD	Price on request	2 in stock	View
MV-VC2141-128G40-NN	N97, 16GB+128G SSD	Price on request	3 in stock	View
MV-VC2141-256G40-NN	N97, 16GB+256G SSD	Price on request	4 in stock	View
MV-VC2140-128G44-1T	N97, 8GB+128G SSD+ 1THDD	Price on request	4 in stock	View
MV-VC2140-128G44-NN	N97, 8GB+128G SSD	Price on request	5 in stock	View
MV-VCB2100-128G40-1T	N97, 8GB+128G SSD+ 1T HDD	Price on request	2 in stock	View
MV-VCB2140-128G40-1T	N97, 8GB+128G SSD+ 1THDD	Price on request	5 in stock	View
MV-VCB2140-128G40-NN	N97, 8GB+128G SSD	Price on request	4 in stock	View
MV-VCB2103-128G40-1T	N97, 8GB+128G SSD	Price on request	5 in stock	View
MV-VCB2103-128G40-NN	N97, 8GB+128G SSD	Price on request	2 in stock	View
MV-VCB2143-128G40-1T	N97, 8GB+128G SSD+ 1T HDD	Price on request	3 in stock	View
MV-VCB2143-128G40-NN	N97, 8GB+128G SSD	Price on request	4 in stock	View
MV-VCB2240-128G46-NN	N97, 8GB+128G SSD	Price on request	3 in stock	View

See all 27 models in the VC2000 series Vision Controller series
