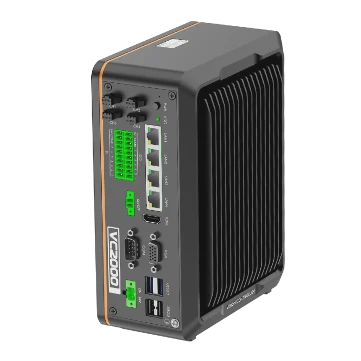

Hikrobot MV-VC2141-128G40-NN VC2100 vision controller, Intel N97, 16GB+128G SSD, 4 light control, 8-in 8-out IO, VM license not included
Model MV-VC2141-128G40-NN
Hikrobot MV-VC2141-128G40-NN VC2100 vision controller, Intel N97, 16GB+128G SSD, 4 light control, 8-in 8-out IO, VM license not included. New Intel Alder Lake-N platform processor for powerful computing performance GPIO support
Datasheet (PDF, Chinese) - MV-VC2141-128G40-NNUser manual (PDF, Chinese) - MV-VC2141-128G40-NNCAD: 3D STEP + 2D DXF (ZIP) - MV-VC2141-128G40-NN
Features
- New Intel Alder Lake-N platform processor for powerful computing performance
- GPIO support
- 4-channel light control for sharper imaging
- 4 GigE ports for fast, stable image transmission
- Optional built-in USB port or built-in dongle for easy on-site deployment and maintenance
Specifications
| Model | MV-VC2141-128G40-NN |
|---|---|
| Brand | Hikrobot |
| CPU | Intel® Processor N97 |
| Memory | 16GB |
| Storage | 128G SSD |
| GPU | Intel® UHD Graphics |
| Operating system | Unactivated 64-bit Windows 10 LTSC 21H2 |
| Encryption method | None |
| Video output | HDMI interface × 1, VGA interface × 1; Supports independent display output at the same time; Max. resolution 1920 × 1080 @ 60 Hz |
| Digital I/O | Opto-isolated input × 8; Opto-isolated output × 8 |
| Light interface | Light interface with 24 VDC constant voltage × 4; (Brightness is adjustable. Max. current 3 A for single light interface, and total max. power consumption 80 W. Supports light mode switching between strobe and solid via external control) |
| Network interface | GigE interface × 4 |
| USB Interface | USB 2.0 × 2; USB 3.0 × 2 |
| Serial Port | RS-232 × 1, supports switching to RS-485 or RS-422 |
| Power supply | 24 VDC |
| Power consumption | Typ. 51 W (without light source) |
| Dimension | 165 mm × 205.6 mm × 86 mm |
| Weight | Approx. 2 kg (4.4 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, KC |
| Shipping weight (estimated) | 2.90 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the VC2000 series Vision Controller series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-VC2143-128G40-1T | N97, 8GB+128G SSD+ 1THDD | Price on request | 2 in stock | View |
| MV-VC2143-128G40-NN | N97, 8GB+128G SSD | Price on request | 4 in stock | View |
| MV-VC2000-128G50-NN-mini | Price on request | 3 in stock | View | |
| MV-VC2100-128G40-NN | N97, 8GB+128G SSD | Price on request | 3 in stock | View |
| MV-VC2100-128G40-1T | N97, 8GB+128G SSD+ 1T HDD | Price on request | 3 in stock | View |
| MV-VC2140-128G46-NN | N97, 8GB+128G SSD | Price on request | 2 in stock | View |
| MV-VC2140-128G46-1T | N97, 8GB+128G SSD+ 1THDD | Price on request | 5 in stock | View |
| MV-VC2103-128G40-1T | N97, 8GB+128G SSD | Price on request | 3 in stock | View |
| MV-VC2103-128G40-NN | N97, 8GB+128G SSD | Price on request | 4 in stock | View |
| MV-VC2143-128G46-NN | N97, 8GB+128G SSD | Price on request | 4 in stock | View |
| MV-VC2143-128G46-1T | N97, 8GB+128G SSD+ 1THDD | Price on request | 4 in stock | View |
| MV-VC2101-128G40-NN | N97, 16GB+128G SSD | Price on request | 2 in stock | View |
| MV-VC2141-256G40-NN | N97, 16GB+256G SSD | Price on request | 4 in stock | View |
| MV-VC2140-128G44-1T | N97, 8GB+128G SSD+ 1THDD | Price on request | 4 in stock | View |
| MV-VC2140-128G44-NN | N97, 8GB+128G SSD | Price on request | 5 in stock | View |
| MV-VCB2100-128G40-NN | N97, 8GB+128G SSD | Price on request | 2 in stock | View |
| MV-VCB2100-128G40-1T | N97, 8GB+128G SSD+ 1T HDD | Price on request | 2 in stock | View |
| MV-VCB2140-128G40-1T | N97, 8GB+128G SSD+ 1THDD | Price on request | 5 in stock | View |
| MV-VCB2140-128G40-NN | N97, 8GB+128G SSD | Price on request | 4 in stock | View |
| MV-VCB2103-128G40-1T | N97, 8GB+128G SSD | Price on request | 5 in stock | View |
| MV-VCB2103-128G40-NN | N97, 8GB+128G SSD | Price on request | 2 in stock | View |
| MV-VCB2143-128G40-1T | N97, 8GB+128G SSD+ 1T HDD | Price on request | 3 in stock | View |
| MV-VCB2143-128G40-NN | N97, 8GB+128G SSD | Price on request | 4 in stock | View |
| MV-VCB2240-128G46-NN | N97, 8GB+128G SSD | Price on request | 3 in stock | View |
See all 27 models in the VC2000 series Vision Controller series
